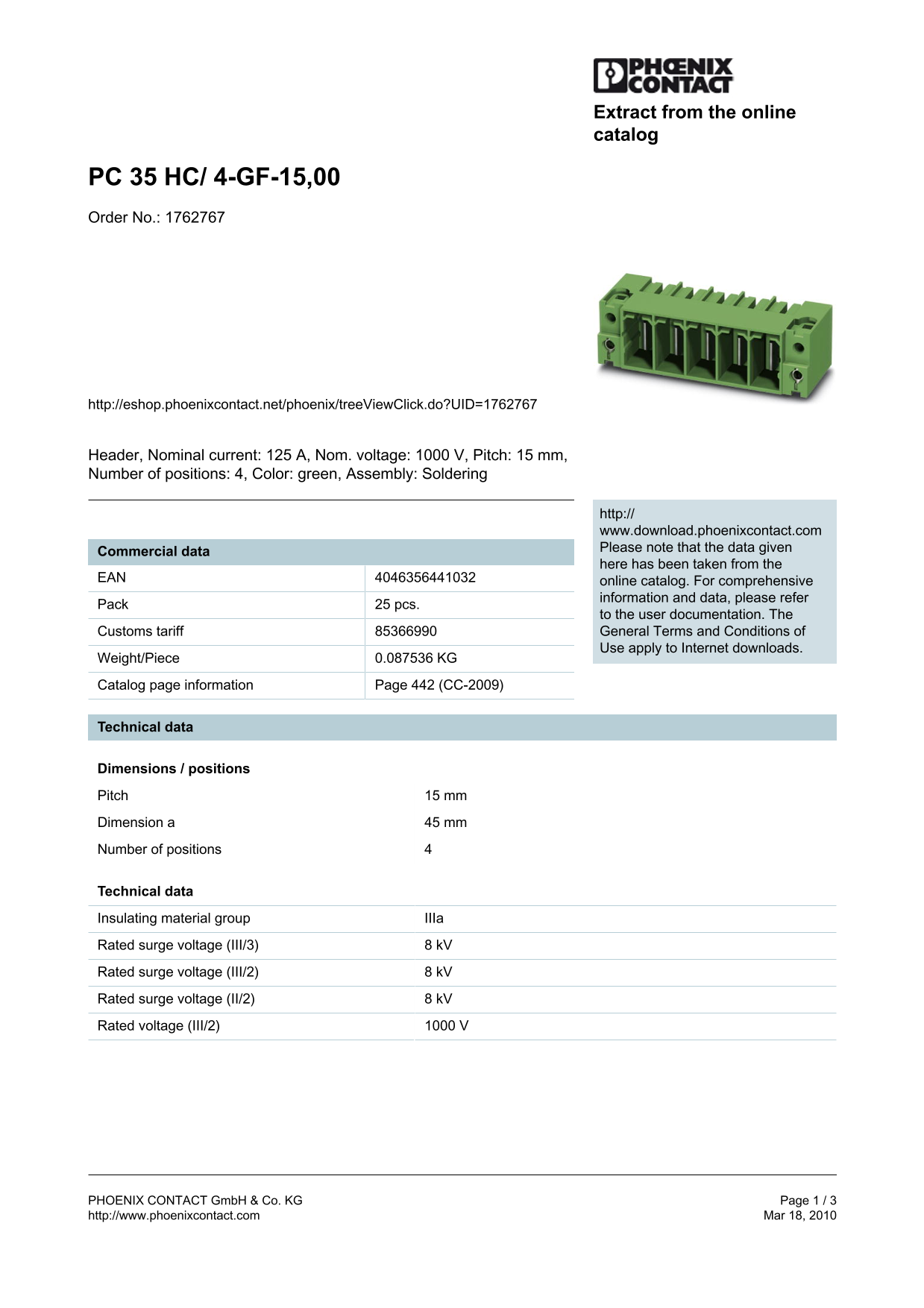

Extract from the online catalog
PC 35 HC/ 4-GF-15,00 Order No.: 1762767
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1762767
Header, Nominal current: 125 A, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 4, Color: green, Assembly: Soldering
http:// www.download.phoenixcontact.com Please note that the data given
Commercial data
here has been taken from the
EAN online catalog. For comprehensive
information and data, please refer
Pack 25 pcs.
to the user documentation. The Customs tariff General Terms and Conditions of Use apply to Internet downloads.
Weight/Piece 0.087536 KG Catalog page information Page 442 (CC-2009)
Technical data
Dimensions / positions Pitch 15 mm Dimension a 45 mm Number of positions
Technical data Insulating material group IIIa Rated surge voltage (III/3) 8 k V Rated surge voltage (III/2) 8 k V Rated surge voltage (II/2) 8 k V Rated voltage (III/2) 1000 V
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 3 http://www.phoenixcontact.com Mar 18, 2010
