This durable plug component is engineered for high-capacity industrial electrical applications, rated for 125 A and 1000 V connections. The associated documentation provides comprehensive technical specifications, including dimensional diagrams, precise creepage/clearance criteria, and detailed guidelines on conductor cross-sections. This resource is essential for electrical engineers, panel builders, and automation technicians requiring guaranteed performance and reliable wiring standards when integrating high-power modular systems.

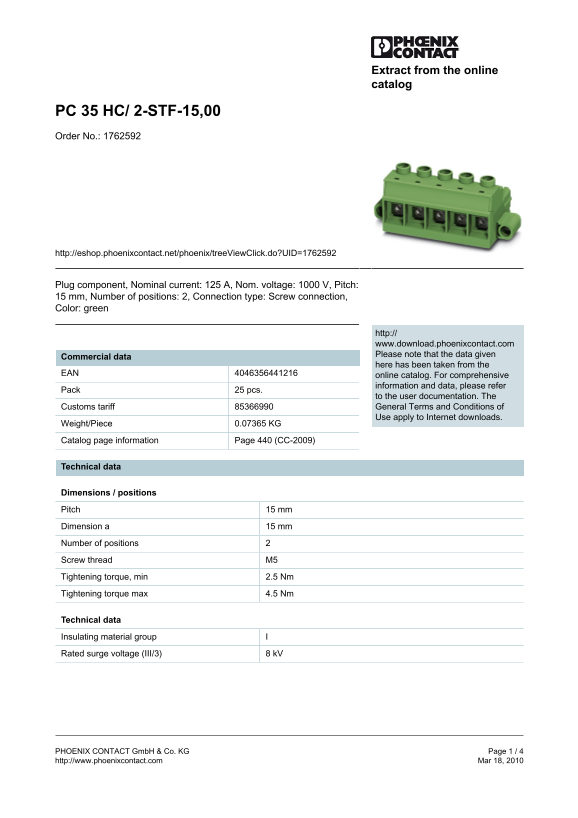

Page 1 Text Content
Extract from the online catalog
PC 35 HC/ 2-STF-15,00 Order No.: 1762592
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1762592
Plug component, Nominal current: 125 A, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 2, Connection type: Screw connection, Color: green
http:// www.download.phoenixcontact.com Please note that the data given
Commercial data
here has been taken from the
EAN online catalog. For comprehensive
information and data, please refer
Pack 25 pcs.
to the user documentation. The Customs tariff General Terms and Conditions of Use apply to Internet downloads.
Weight/Piece 0.07365 KG Catalog page information Page 440 (CC-2009)
Technical data
Dimensions / positions Pitch 15 mm Dimension a 15 mm Number of positions Screw thread M5 Tightening torque, min 2.5 Nm Tightening torque max 4.5 Nm
Technical data Insulating material group Rated surge voltage (III/3) 8 k V
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - PC 35 HC 2-STF-15,00 Data Handbook
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 95.26 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the nominal electrical ratings of this plug component?
The nominal voltage (U) is 1000 V, and the nominal current (I) is 125 A.
What is the required tightening torque for the screw connections?
The tightening torque must be between a minimum of 2.5 Nm and a maximum of 4.5 Nm.
What are the flammability ratings of the insulating material?
The insulating material (PA) has an inflammability class according to UL 94 V0.
Can I use stranded conductors, and what is the minimum cross-section?
Yes, it supports stranded conductors; the general minimum solid conductor size listed is 0.5 mm².
