Phoenix Contact PC 35 HC 3-GF-15,00 Order No. 1762754 Data Sheet User Manual
Summary
This reliable terminal block header is engineered for robust electrical connections, rated up to 125 A at 1000 V. Designed with a 15 mm pitch and three positions, it ensures secure power distribution in industrial environments. The provided documentation contains comprehensive technical schematics, drilling plans, and dimensional drawings necessary for precise system integration. It is the essential component resource for electrical control engineers, automation designers, and technicians building high-voltage power systems.
Page 1 Text Content
Extract from the online catalog

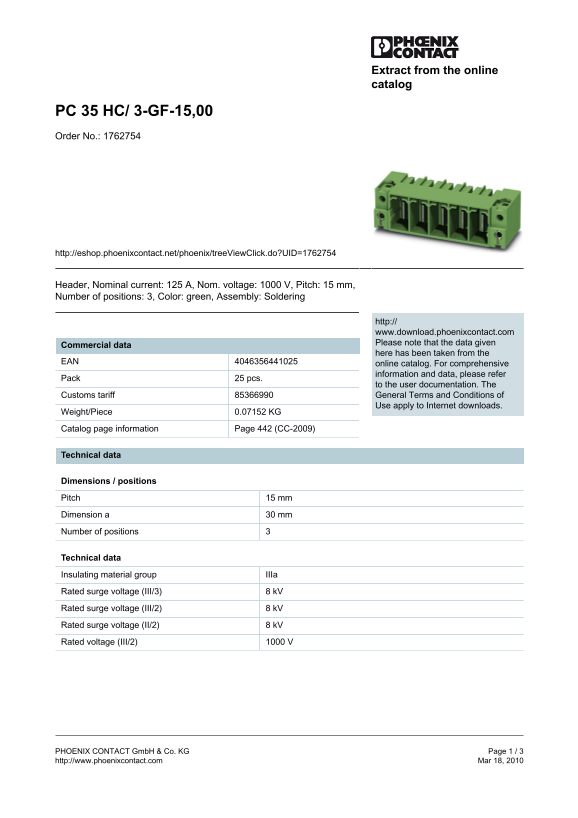

PC 35 HC/ 3-GF-15,00 Order No.: 1762754
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1762754
Header, Nominal current: 125 A, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 3, Color: green, Assembly: Soldering
http:// www.download.phoenixcontact.com Please note that the data given
Commercial data
here has been taken from the
EAN online catalog. For comprehensive
information and data, please refer
Pack 25 pcs.
to the user documentation. The Customs tariff General Terms and Conditions of Use apply to Internet downloads.
Weight/Piece 0.07152 KG Catalog page information Page 442 (CC-2009)
Technical data
Dimensions / positions Pitch 15 mm Dimension a 30 mm Number of positions
Technical data Insulating material group IIIa Rated surge voltage (III/3) 8 k V Rated surge voltage (III/2) 8 k V Rated surge voltage (II/2) 8 k V Rated voltage (III/2) 1000 V
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 3 http://www.phoenixcontact.com Mar 18, 2010
