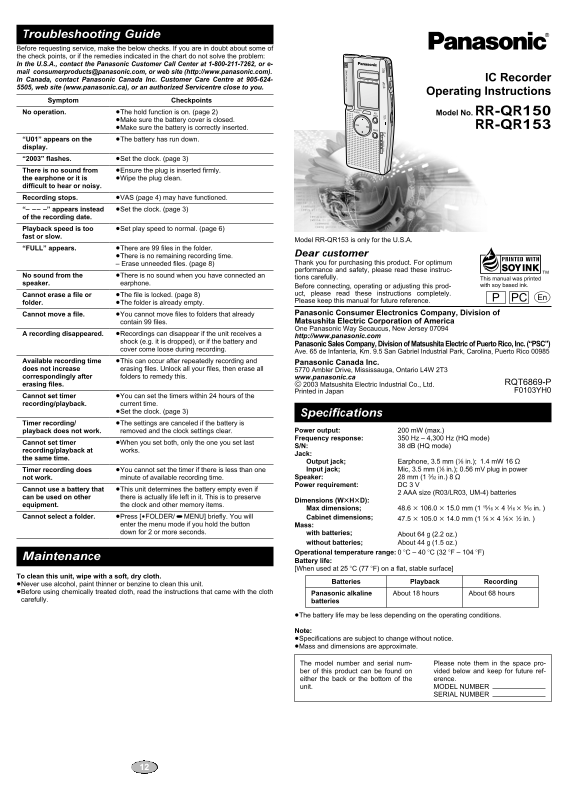

Panasonic RR-QR150 RR-QR153 User's Manual

Troubleshooting Guide Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem: In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e- mail [email protected], or web site (http://www.panasonic.com).

In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624- IC Recorder

5505, web site (www.panasonic.ca), or an authorized Servicentre close to you.

Operating Instructions

Symptom Checkpoints

FOLDER/

No operation. ≥The hold function is on. (page 2) MENU REC

MODE Model No. RR-QR150

≥Make sure the battery cover is closed.

≥Make sure the battery is correctly inserted. ERASE RR-QR153

“U01” appears on the ≥The battery has run down. display. “2003” flashes. ≥Set the clock. (page 3) There is no sound from ≥Ensure the plug is inserted firmly. the earphone or it is ≥Wipe the plug clean. difficult to hear or noisy. Recording stops. ≥VAS (page 4) may have functioned. “– –– –” appears instead ≥Set the clock. (page 3) of the recording date.

Playback speed is too ≥Set play speed to normal. (page 6)

fast or slow.

Model RR-QR153 is only for the U.S.A.

“FULL” appears. ≥There are 99 files in the folder.

≥There is no remaining recording time. Dear customer – Erase unneeded files. (page 8) Thank you for purchasing this product. For optimum performance and safety, please read these instruc-

No sound from the ≥There is no sound when you have connected an tions carefully.

This manual was printed

speaker. earphone. with soy based ink.Before connecting, operating or adjusting this prod-

Cannot erase a file or ≥The file is locked. (page 8) uct, please read these instructions completely.

Please keep this manual for future reference. PC

folder. ≥The folder is already empty.

Cannot move a file. ≥You cannot move files to folders that already Panasonic Consumer Electronics Company, Division of contain 99 files. Matsushita Electric Corporation of America One Panasonic Way Secaucus, New Jersey 07094

A recording disappeared. ≥Recordings can disappear if the unit receives a

http://www.panasonic.com

shock (e.g. it is dropped), or if the battery and

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. (“PSC”) IC

cover come loose during recording.

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Available recording time ≥This can occur after repeatedly recording and Panasonic Canada Inc. does not increase erasing files. Unlock all your files, then erase all 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 correspondingly after folders to remedy this. www.panasonic.ca

C 2003 Matsushita Electric Industrial Co., Ltd. RQT6869-P IC VO ST EC

erasing files.

Printed in Japan F0103YH0

Cannot set timer ≥You can set the timers within 24 hours of the recording/playback. current time. ≥Set the clock. (page 3)

Specifications

Timer recording/ ≥The settings are canceled if the battery is

playback does not work. removed and the clock settings clear. Power output: 200 m W (max.) Frequency response: 350 Hz – 4,300 Hz (HQ mode)

Cannot set timer ≥When you set both, only the one you set last

S/N: 38 d B (HQ mode)

recording/playback at works.

Jack:

the same time.

Output jack; Earphone, 3.5 mm (1⁄8 in.); 1.4 m W 16 ≠ Timer recording does ≥You cannot set the timer if there is less than one Input jack; Mic, 3.5 mm (1⁄8 in.); 0.56 m V plug in power

not work. minute of available recording time. Speaker: 28 mm (1 3⁄32 in.) 8 ≠

Power requirement: DC 3 V

Cannot use a battery that ≥This unit determines the battery empty even if

2 AAA size (R03/LR03, UM-4) batteries

can be used on other there is actually life left in it. This is to preserve

Dimensions (Wt Ht D):

equipment. the clock and other memory items. 9⁄16

Max dimensions; 48.6 k 106.0 k 15.0 mm (1 15⁄16 k 4 3⁄16 k in. )

Cannot select a folder. ≥Press [$FOLDER/%MENU] briefly. You will Cabinet dimensions; 1⁄2

47.5 k 105.0 k 14.0 mm (1 7⁄8 k 4 1⁄8k in. )

enter the menu mode if you hold the button Mass: down for 2 or more seconds. with batteries;

About 64 g (2.2 oz.) without batteries; About 44 g (1.5 oz.) Operational temperature range: 0 o C – 40 o C (32 o F – 104 o F)

Maintenance

Battery life: [When used at 25 o C (77 o F) on a flat, stable surface]

To clean this unit, wipe with a soft, dry cloth.

Batteries Playback Recording

≥Never use alcohol, paint thinner or benzine to clean this unit. ≥Before using chemically treated cloth, read the instructions that came with the cloth Panasonic alkaline About 18 hours About 68 hours carefully. batteries

≥The battery life may be less depending on the operating conditions.

Note: ≥Specifications are subject to change without notice. ≥Mass and dimensions are approximate.

The model number and serial num- Please note them in the space pro- ber of this product can be found on vided below and keep for future ref- either the back or the bottom of the erence.

unit. MODEL NUMBER SERIAL NUMBER
