The OMRON MicroAIR U22 Nebuliser is a high-quality medical device designed for delivering inhaled medication therapy for various respiratory disorders. This comprehensive manual provides detailed instructions crucial for proper operation, serving trained medical professionals and caregivers. It covers initial setup, safety guidelines, step-by-step usage, essential cleaning/disinfection protocols, and troubleshooting, ensuring safe and effective treatment from the first use.
Page 1 Text Content
NE-U22-E_C_en-de-nl_M11_100824.pdf
Instruction manual
• English
• Deutsch
• Nederlands
IM-NE-U22-E-04-08/2010
Page Summary Contents For Omron U22 User Guide
Page 1

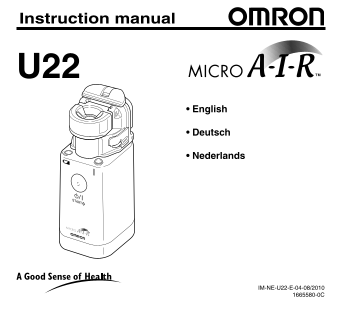

NE-U22-E_C_en-de-nl_M11_100824.pdf Instruction manual • English • Deutsch • Nederlands IM-NE-U22-E-04-08/2010
Page 2
Table of contents Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...
Page 3
Intended use Medical Purpose This product is intended to be used for inhaling medication for respiratory disorders. Intended User • Legally certified medical experts, such as doctor, nurse and therapi...
Page 4
Safety precautions • This nebuliser is a medical device. Only use medications as prescribed and instructed by your doctor. • Disinfect the nebuliser before fi rst use and at least once per day when in...
Page 5
Features and benefi ts In the Micro AIR U22, aerosol is generated by pushing liquid medication through fi ne holes in the newly developed metal alloy mesh. This is realised by a titanium vibrator, osc...
Page 6
Contents of the OMRON Micro AIR U22 package The following items are contained in the package: Medication Mesh Cap Main Unit Cover Main Unit Container (with Mesh) Mouthpiece Mask Adapter Child Mask (PV...
Page 7
Names and functions of the parts 1. Mesh Cap Contains metal alloy mesh for Mesh cap viewed from nebulisation. the bottom 2. Nebulisation port Nebulised medication exits here. 3. Mesh Cap Cover Figure ...
Page 8
Names and functions of the parts 10. Container Contains the medication (7 ml max.) 11. Medication container release button Medication container can be removed when the buttons on both sides are pushed...
Page 9
How to insert or replace the batteries Inserting batteries 1. Remove the battery cover by slightly rotating the disengaging lever in the direction of the arrow (1). 2. Insert the batteries according t...
Page 10
How to use the AC adapter Using the AC adapter The AC adapter is an optional accessory. Place the main unit on the AC adapter connector. Press fi rmly until it clicks. Plug in the power plug of the AC...
Page 11
How to assemble the unit and fi ll the medication container When using the unit for the fi rst time or after not using it for a long period of time, clean and disinfect the medication container, mesh,...
Page 12
How to assemble the unit and fi ll the medication container 4. Fill the medication container as illustrated. The maximum capacity is 7 ml. 5. Install the mesh cap. Do not touch the mesh! The mesh cap ...
Page 13
How to assemble the unit and fi ll the medication container 7. Install the mask adapter on the main unit. 8. Install the mask or mouthpiece on the mask adapter. The device is now ready for use. Refer ...
Page 14
How to select the nebulisation mode Continuous nebulisation mode If you push the ON/OFF ( / I) button and release within approximately 1 second, the unit nebulises in continuous mode. If you push the ...
Page 15
How to inhale with the OMRON Micro AIR U22 !Caution: Only use type and amount of medications as prescribed and instructed by your doctor. Medication 1. Slightly tilt the unit as illustrated in the fi ...
Page 16
How to clean the unit after each inhalation Note: if the device is not cleaned and disinfected correctly and frequently, micro-organisms may remain in the unit, causing risk of infection. The followin...
Page 17
How to clean the unit after each inhalation 5. Wash the parts (not the main unit!) in a warm soapy solution. Rinse the parts in warm tap water to remove the soap residue. Some types of medications can...
Page 18
How to disinfect the unit each day Note: if the device is not cleaned and disinfected correctly and as frequently as indicated, microorganisms may remain in the unit, causing risk of infection. The me...
Page 19
How to disinfect the unit each day Use the table below as a guideline to select a method for disinfecting. Sodium Quaternary Amphoteric Alcohol Chlorhexidine hypochlorite ammonium surfactant Parts Mat...
Page 20
How to replace the mesh cap The mesh cap is a consumable part. Omron recommends to exchange the mesh cap after approximately 1 year. Remove the mesh cap and install a new one as described on page 11 (...
Page 21
Troubleshooting Trouble Possible cause Corrective action Batteries are low (the orange Replace the batteries with new battery low indicator fl ashes). ones. Refer to page 9. The nebulisation rate is T...
Page 22
Troubleshooting Trouble Possible cause Corrective action The green power Medication or water has collected Remove the medication or water. indicator turns on on the electrodes on the main unit. Refer ...
Page 23
Technical data Name: Micro AIR Model: NE-U22 Type: Electronic Mesh Nebuliser Electrical: 3 VDC (two alkaline penlite batteries/Type AA/LR6) 2.4 VDC (two Ni MH rechargeable batteries) 230 VAC, 50 Hz (o...
Page 24
Technical data The particle size is measured according to the provisions of the EN13544-1:2007 “Respiratory therapy equipment - Part 1: Nebulising systems and their components”, Annex CC.3 using the m...
Page 25
Technical data Important information regarding Electro Magnetic Compatibility (EMC) With the increased number of electronic devices such as PC’s and mobile (cellular) telephones, medical devices in us...
Page 26
Technical data Correct Disposal of This Product (Waste Electrical & Electronic Equipment) This marking shown on the product or its literature, indicates that it should not be disposed of, with oth...
Page 27
Optional parts and accessories Adult Mask (PVC) Child Mask (PVC) Main Unit Cover Mesh Cap : A040002 : A040003 : P040012 : P040014 AC Adapter (4125-0380-ADC) Mask Adapter Mouthpiece : A040004 : P040015...
Page 28
Manufacturer OMRON HEALTHCARE Co., Ltd. 24, Yamanouchi Yamanoshita-cho, Ukyo-ku, Kyoto, 615-0084 JAPAN EU-representative OMRON HEALTHCARE EUROPE B.V. Kruisweg 577, 2132 NA Hoofddorp, THE NETHERLANDS w...
