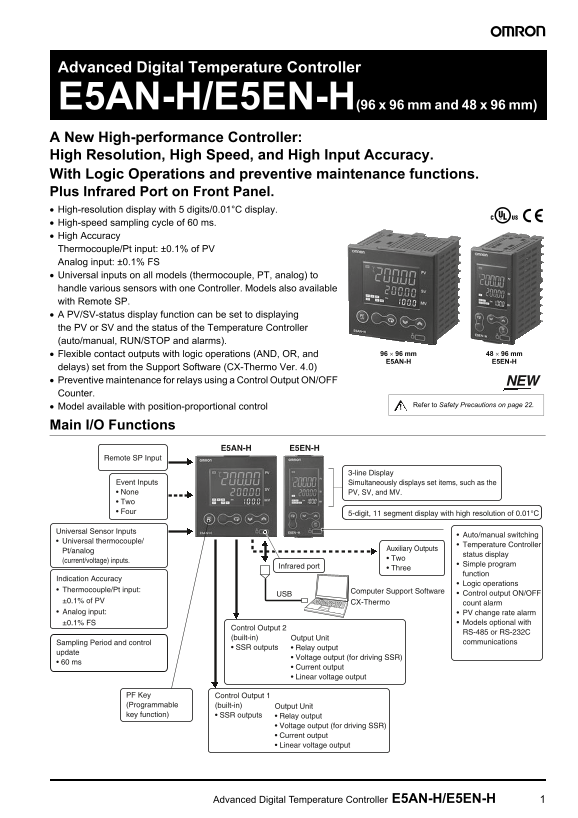

OMRON E5AN-HE5EN-H Manual

Advanced Digital Temperature Controller

E5AN-H/E5EN-H(96 x 96 mm and 48 x 96 mm) A New High-performance Controller: High Resolution, High Speed, and High Input Accuracy. With Logic Operations and preventive maintenance functions. Plus Infrared Port on Front Panel. High-resolution display with 5 digits/0.01°C display. High-speed sampling cycle of 60 ms. High Accuracy Thermocouple/Pt input: ±0.1% of PV Analog input: ±0.1% FS Universal inputs on all models (thermocouple, PT, analog) to handle various sensors with one Controller. Models also available with Remote SP. A PV/SV-status display function can be set to displaying the PV or SV and the status of the Temperature Controller (auto/manual, RUN/STOP and alarms).

Flexible contact outputs with logic operations (AND, OR, and 96 × 96 mm 48 × 96 mm E5AN-H E5EN-H

delays) set from the Support Software (CX-Thermo Ver. 4.0) Preventive maintenance for relays using a Control Output ON/OFF Counter.

Refer to Safety Precautions on page 22.

Model available with position-proportional control

Main I/O Functions

E5AN-H E5EN-H

Remote SP Input

3-line Display

Event Inputs Simultaneously displays set items, such as the • None PV, SV, and MV. • Two • Four 5-digit, 11 segment display with high resolution of 0.01°C

Universal Sensor Inputs

• Auto/manual switching

• Universal thermocouple/

• Temperature Controller

Auxiliary Outputs

Pt/analog

status display

• Two

(current/voltage) inputs.

• Simple program

Infrared port • Three

function

Indication Accuracy

• Logic operations

• Thermocouple/Pt input: Computer Support Software

USB • Control output ON/OFF

±0.1% of PV CX-Thermo

count alarm

• Analog input: • PV change rate alarm

±0.1% FS • Models optional with

Control Output 2

RS-485 or RS-232C

(built-in) Output Unit

Sampling Period and control communications

• SSR outputs • Relay output

update

• Voltage output (for driving SSR)

• 60 ms

• Current output • Linear voltage output

PF Key Control Output 1 (Programmable (built-in) Output Unit key function) • SSR outputs • Relay output

• Voltage output (for driving SSR) • Current output • Linear voltage output

Advanced Digital Temperature Controller E5AN-H/E5EN-H
