This component is a high-reliability Quad 2-Input AND Gate utilizing specialized Quiet Series technology to ensure minimum switching noise and exceptional output control. Engineered for demanding electronic circuits, it features improved latch-up immunity and operates with source/sink capabilities. The accompanying manual provides comprehensive specifications, including detailed AC, DC, and absolute maximum ratings, making it essential for electrical engineers and designers building stable, high-performance digital logic systems requiring guaranteed signal integrity.

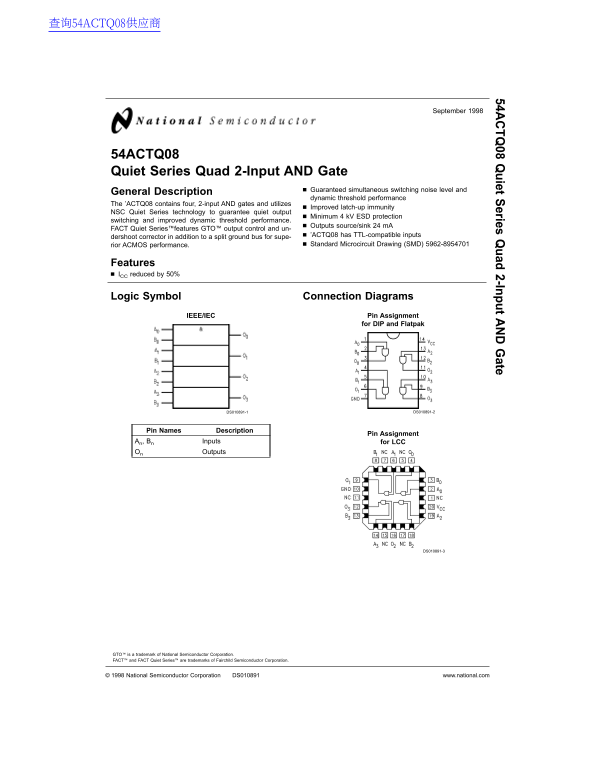

Page 1 Text Content
查询54ACTQ08供应商
54A TQ uiet eries uad 2-Input ate
September
54ACTQ08 Quiet Series Quad 2-Input AND Gate
Guaranteed simultaneous switching noise level and
General Description
dynamic threshold performance
The ’ACTQ08 contains four, 2-input AND gates and utilizes
Improved latch-up immunity
NSC Quiet Series technology to guarantee quiet output
Minimum k V ESD protection
switching and improved dynamic threshold performance.
Outputs source/sink m A
FACT Quiet Series™features GTO™ output control and un-
’ACTQ08 has TTL-compatible inputs
dershoot corrector in addition to split ground bus for supe-
rior ACMOS performance. Standard Microcircuit Drawing (SMD) 5962-8954701
Features ICC reduced by 50%
Logic Symbol Connection Diagrams
IEEE/IEC Pin Assignment
for DIP and Flatpak
DS010891-1 DS010891-2
Pin Names Description
Pin Assignment
An, Bn Inputs for LCC On Outputs
DS010891-3
GTO™ is trademark of National Semiconductor Corporation. FACT™ and FACT Quiet Series™ are trademarks of Fairchild Semiconductor Corporation.
National Semiconductor Corporation DS010891 www.national.com
Page Summary Contents For National Semiconductor 54ACTQ08 Quiet Series Quad 2-Input AND Gate Specifications User Guide
Manual Details
| Brand | National |
|---|---|
| Pages | 5 |
| File Size | 107.56 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating temperature range?
The device operates from -55°C to +125°C.
What kind of protection features does it include?
It includes improved latch-up immunity (NSC Quiet Series technology) and minimum 4 kV ESD protection.
How are the dimensions varied for different packages?
The package available as a Chip Carrier is 20 terminals, while the Ceramic Flatpak version has 14 leads.
What is the maximum source or sink current for the outputs?
The guaranteed limit for output current (I) is ±50 mA.
Are there compatibility notes regarding life support devices?
National's products are not authorized for use in critical life support systems without explicit written approval.
