National Semiconductor 5402 DM5402 DM7402 Quad 2-Input NOR Gates
Summary
This Quad 2-Input NOR Gate IC provides four independent gates, perfect for implementing core digital logic circuits in design projects. This technical manual serves as a comprehensive resource, detailing electrical specifications, absolute maximum ratings, and optimal operating conditions across various physical packages (J, N, W). It is essential documentation for electronics engineers, hardware designers, and system builders requiring reliable and stable semiconductor components.
Page 1 Text Content
-In te
5402/DM5402/DM7402 Quad 2-Input NOR Gates General Description Features
This device contains four independent gates each of which Alternate Military/Areospace device (5402) is available. performs the logic NOR function. Contact National Semiconductor Sales Office/Distrib- utor for specifications.
Connection Diagram

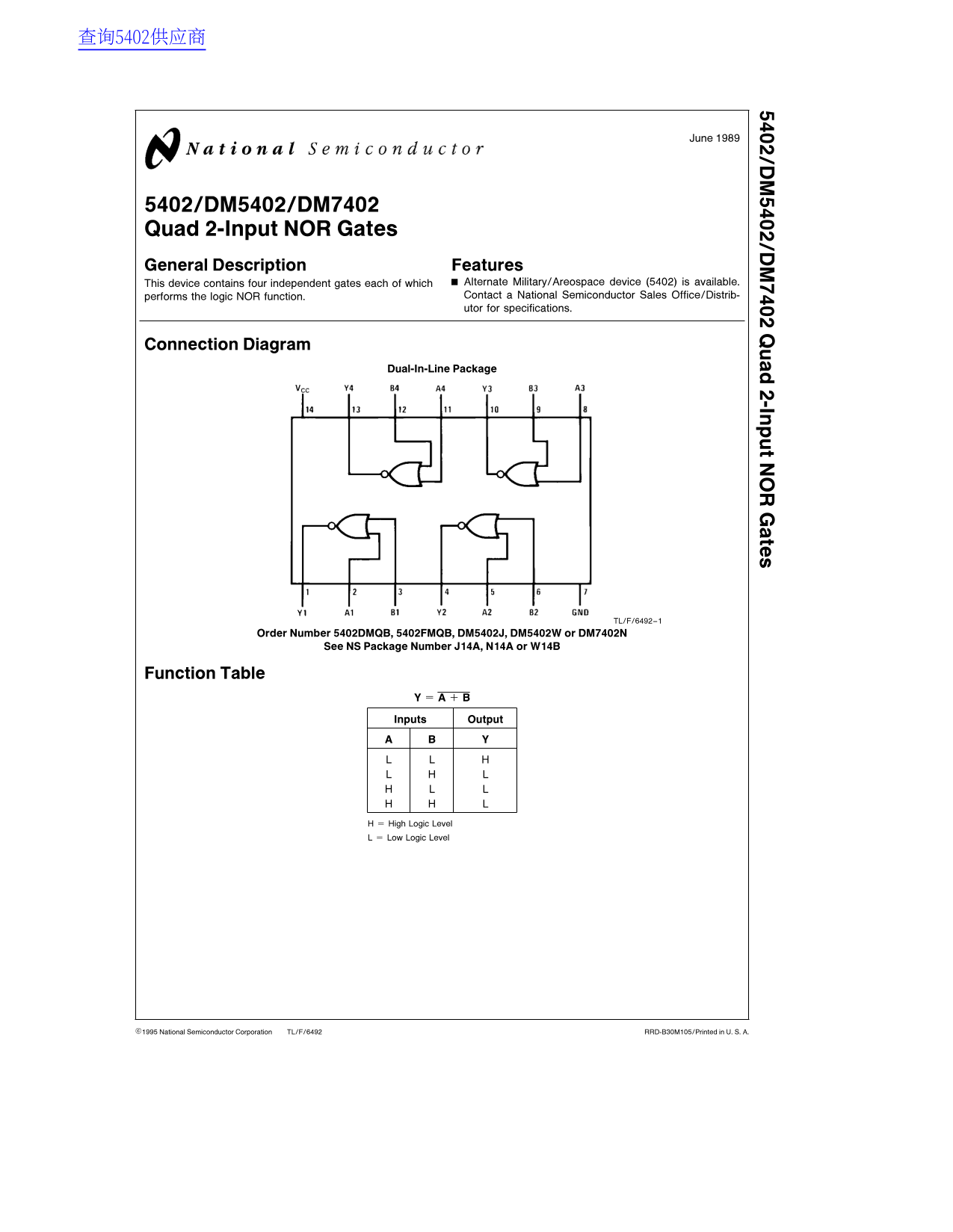

Dual-In-Line Package
TL/F/6492–1
Order Number 5402DMQB, 5402FMQB, DM5402J, DM5402W or DM7402N
See NS Package Number J14A, N14A or W14B
Function Table
Inputs Output
High Logic Level Low Logic Level
C1995 National Semiconductor Corporation TL/F/6492 RRD-B30M105/Printed in U. S. A.
