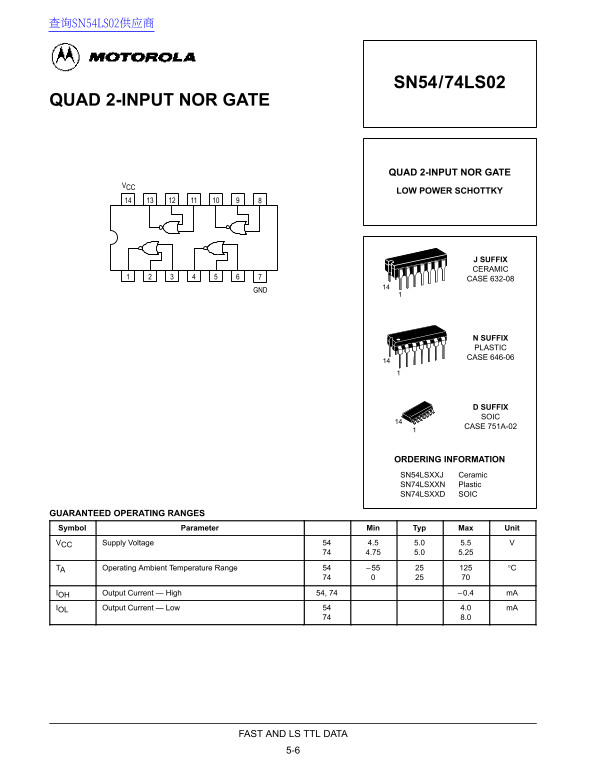

SN54/74LS02
QUAD 2-INPUT NOR GATE
QUAD 2-INPUT NOR GATE
LOW POWER SCHOTTKY
J SUFFIX CERAMIC CASE 632-08
N SUFFIX PLASTIC CASE 646-06
D SUFFIX SOIC CASE 751A-02
ORDERING INFORMATION SN54LSXXJ Ceramic SN74LSXXN Plastic SN74LSXXD SOIC
GUARANTEED OPERATING RANGES Symbol Parameter Min Typ Max Unit VCC Supply Voltage 4.5 5.0 5.5
TA Operating Ambient Temperature Range –55 °C
IOH Output Current — High 54, 74 –0.4 m A IOL Output Current — Low 4.0 m A
FAST AND LS TTL DATA
