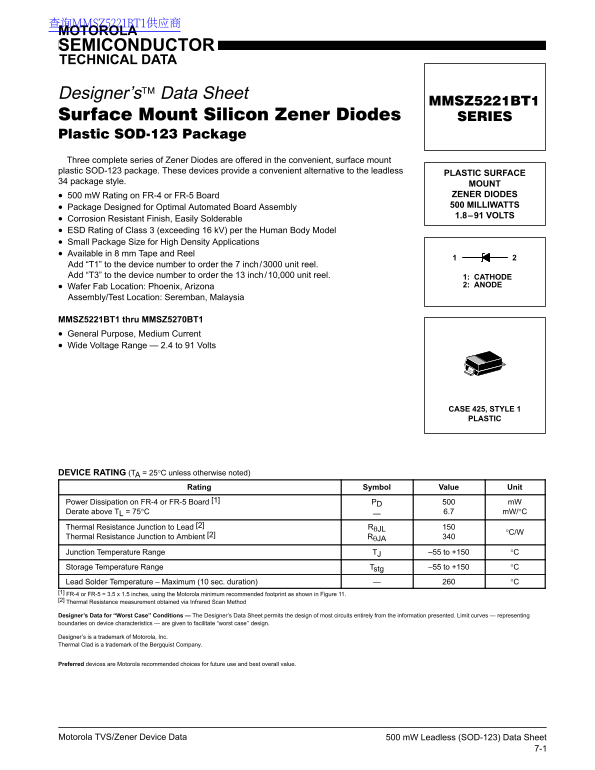

查询MMSZ5221BT1供应商 MOTOROLA SEMICONDUCTOR TECHNICAL DATA
Designer’s Data Sheet
Three complete series of Zener Diodes are offered in the convenient, surface mount plastic SOD-123 package. These devices provide a convenient alternative to the leadless
PLASTIC SURFACE
34 package style.
MOUNT 500 m W Rating on FR-4 or FR-5 Board ZENER DIODES 500 MILLIWATTS
Package Designed for Optimal Automated Board Assembly
1.8–91 VOLTS
Corrosion Resistant Finish, Easily Solderable ESD Rating of Class 3 (exceeding 16 k V) per the Human Body Model Small Package Size for High Density Applications Available in 8 mm Tape and Reel Add “T1” to the device number to order the 7 inch/3000 unit reel. Add “T3” to the device number to order the 13 inch/10,000 unit reel. 1: CATHODE
Wafer Fab Location: Phoenix, Arizona 2: ANODE
Assembly/Test Location: Seremban, Malaysia
MMSZ5221BT1 thru MMSZ5270BT1 General Purpose, Medium Current Wide Voltage Range — 2.4 to 91 Volts
CASE 425, STYLE 1 PLASTIC
DEVICE RATING (TA = 25°C unless otherwise noted)
Rating Symbol Value Unit
Power Dissipation on FR-4 or FR-5 Board [1] PD m W Derate above TL = 75°C 6.7 m W/°C Thermal Resistance Junction to Lead [2] RθJL
Thermal Resistance Junction to Ambient [2] RθJA Junction Temperature Range TJ –55 to +150 °C Storage Temperature Range Tstg –55 to +150 °C Lead Solder Temperature – Maximum (10 sec. duration) °C [1] FR-4 or FR-5 = 3.5 x 1.5 inches, using the Motorola minimum recommended footprint as shown in Figure 11. [2] Thermal Resistance measurement obtained via Infrared Scan Method
Designer’s Data for “Worst Case’’ Conditions — The Designer’s Data Sheet permits the design of most circuits entirely from the information presented. Limit curves — representing boundaries on device characteristics — are given to facilitate “worst case’’ design.
Designer’s is a trademark of Motorola, Inc. Thermal Clad is a trademark of the Bergquist Company.
Preferred devices are Motorola recommended choices for future use and best overall value.
Motorola TVS/Zener Device Data 500 m W Leadless (SOD-123) Data Sheet
