Motorola Semiconductor MC68040V Data Manual
Summary
This high-performance MC68040V is a 32-bit, low-power microprocessor designed for demanding embedded and general computing applications. It features robust architecture including dual on-chip caches and independent Memory Management Units (MMUs), enabling exceptional throughput while maintaining ultra-low power consumption at 3.3V. This technical guide provides comprehensive details on the product's sophisticated operations, allowing designers to integrate best-in-class performance with minimal system power draw.
Page 1 Text Content
查询MC68040V供应商
Order this document MOTOROLA by MC68040V/D
SEMICONDUCTOR PRODUCT INFORMATION
MC68040V

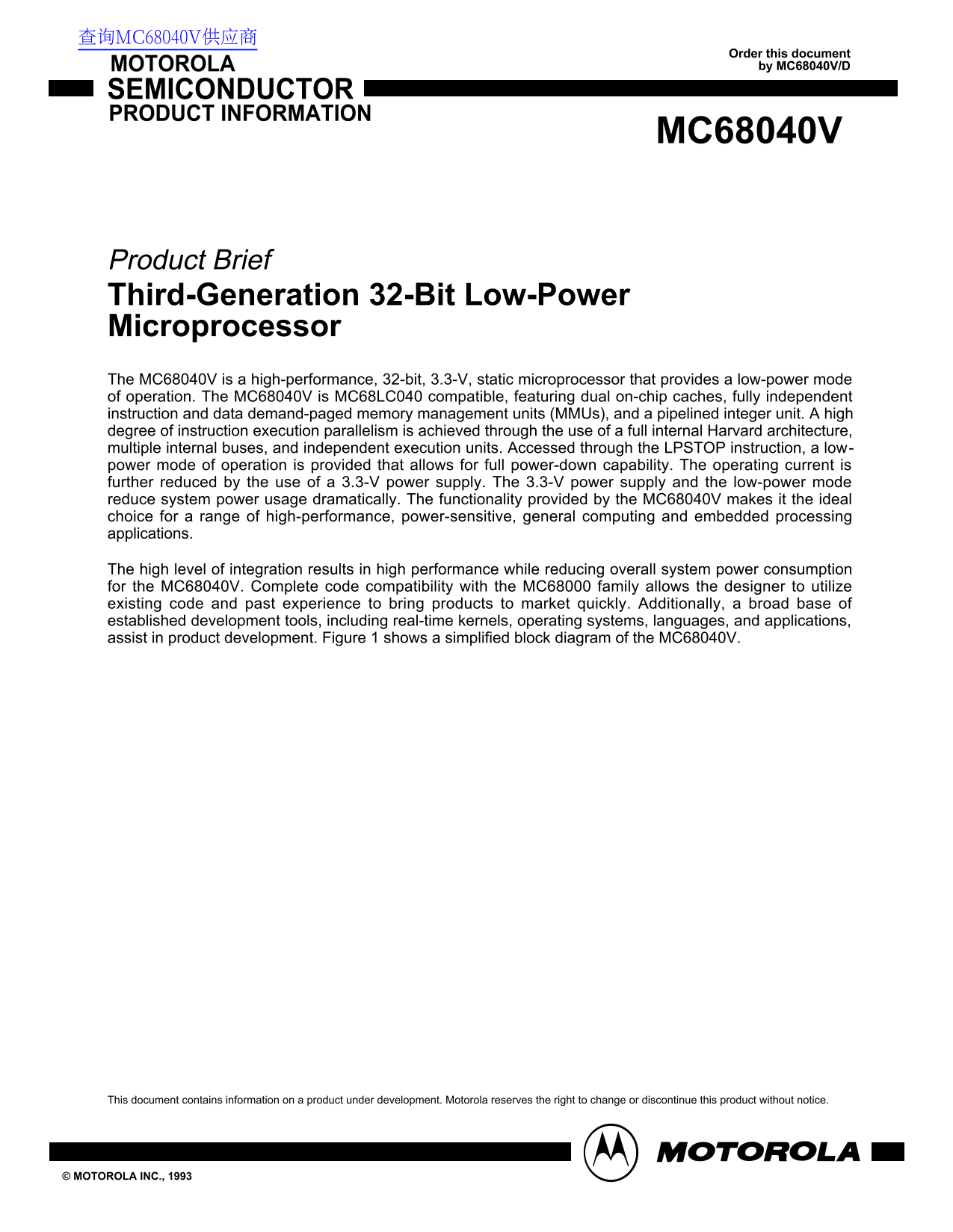

Product Brief Third-Generation 32-Bit Low-Power Microprocessor The MC68040V is a high-performance, 32-bit, 3.3-V, static microprocessor that provides a low-power mode of operation. The MC68040V is MC68LC040 compatible, featuring dual on-chip caches, fully independent instruction and data demand-paged memory management units (MMUs), and a pipelined integer unit. A high degree of instruction execution parallelism is achieved through the use of a full internal Harvard architecture, multiple internal buses, and independent execution units. Accessed through the LPSTOP instruction, a low- power mode of operation is provided that allows for full power-down capability. The operating current is further reduced by the use of a 3.3-V power supply. The 3.3-V power supply and the low-power mode reduce system power usage dramatically. The functionality provided by the MC68040V makes it the ideal choice for a range of high-performance, power-sensitive, general computing and embedded processing applications. The high level of integration results in high performance while reducing overall system power consumption for the MC68040V. Complete code compatibility with the MC68000 family allows the designer to utilize existing code and past experience to bring products to market quickly. Additionally, a broad base of established development tools, including real-time kernels, operating systems, languages, and applications, assist in product development. Figure 1 shows a simplified block diagram of the MC68040V.
This document contains information on a product under development. Motorola reserves the right to change or discontinue this product without notice.
© MOTOROLA INC., 1993
