Motorola Semiconductor MMDF2N02E Data Handbook

Summary

Discover the MiniMOS DUAL TMOS MOSFET, a high-efficiency power component designed for demanding switching applications. Utilizing advanced technology, these miniature SO–8 MOSFETs feature ultra-low $R_{DS(on)}$ and logic level drive capability to maximize power efficiency and extend battery life. This technical manual provides comprehensive data, covering maximum electrical specifications, thermal resistance, and dynamic characteristics required for reliable system design. Ideal for builders of dc–dc converters, portable power management solutions in phones/computers, and low-voltage motor controls.

📄 Preview PAGE OF 10

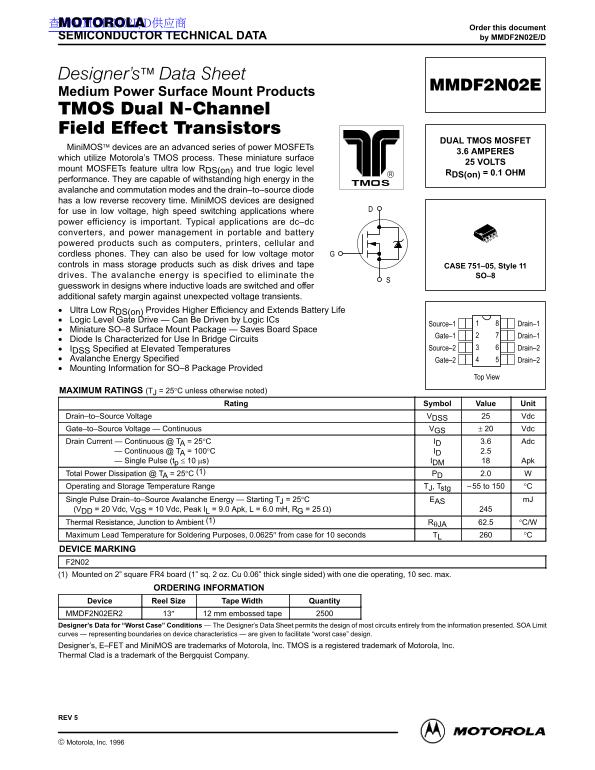

Page 1 Text Content

查询MMDF2N02E/D供应商

Order this document

SEMICONDUCTOR TECHNICAL DATA by MMDF2N02E/D

Medium Power Surface Mount Products

DUAL TMOS MOSFET

Mini MOS devices are an advanced series of power MOSFETs

3.6 AMPERES

which utilize Motorola’s TMOS process. These miniature surface

25 VOLTS

mount MOSFETs feature ultra low RDS(on) and true logic level

RDS(on) = 0.1 OHM

performance. They are capable of withstanding high energy in the avalanche and commutation modes and the drain–to–source diode has a low reverse recovery time. Mini MOS devices are designed for use in low voltage, high speed switching applications where power efficiency is important. Typical applications are dc–dc converters, and power management in portable and battery powered products such as computers, printers, cellular and cordless phones. They can also be used for low voltage motor controls in mass storage products such as disk drives and tape CASE 751–05, Style 11 drives. The avalanche energy is specified to eliminate the SO–8 guesswork in designs where inductive loads are switched and offer additional safety margin against unexpected voltage transients. Ultra Low RDS(on) Provides Higher Efficiency and Extends Battery Life Logic Level Gate Drive — Can Be Driven by Logic ICs

Source–1 Drain–1

Miniature SO–8 Surface Mount Package — Saves Board Space

Gate–1 Drain–1

Diode Is Characterized for Use In Bridge Circuits

IDSS Specified at Elevated Temperatures Source–2 Drain–2

Avalanche Energy Specified Gate–2 Drain–2 Mounting Information for SO–8 Package Provided

Top View

MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)

Rating Symbol Value Unit

Drain–to–Source Voltage VDSS Vdc Gate–to–Source Voltage — Continuous VGS Vdc Drain Current — Continuous @ TA = 25°C ID 3.6 Adc Drain Current — Continuous @ TA = 100°C ID 2.5

Drain Current — Single Pulse (tp ≤ 10 µs) IDM Apk

Total Power Dissipation @ TA = 25°C (1) PD 2.0 Operating and Storage Temperature Range TJ, Tstg –55 to 150 °C Single Pulse Drain–to–Source Avalanche Energy — Starting TJ = 25°C EAS m J (VDD = 20 Vdc, VGS = 10 Vdc, Peak IL = 9.0 Apk, L = 6.0 m H, RG = 25 Ω) Thermal Resistance, Junction to Ambient (1) RθJA 62.5 °C/W Maximum Lead Temperature for Soldering Purposes, 0.0625″ from case for 10 seconds TL °C DEVICE MARKING F2N02 (1) Mounted on 2” square FR4 board (1” sq. 2 oz. Cu 0.06” thick single sided) with one die operating, 10 sec. max.

ORDERING INFORMATION

Device Reel Size Tape Width Quantity MMDF2N02ER2 13″ 12 mm embossed tape Designer’s Data for “Worst Case” Conditions The Designer’s Data Sheet permits the design of most circuits entirely from the information presented. SOA Limit curves representing boundaries on device characteristics are given to facilitate “worst case” design. Designer’s, E–FET and Mini MOS are trademarks of Motorola, Inc. TMOS is a registered trademark of Motorola, Inc. Thermal Clad is a trademark of the Bergquist Company.

REV 5

1Motorola TMOS Power MOSFET Transistor Device Data

 Motorola, Inc. 1996

Page Summary Contents For Motorola Semiconductor MMDF2N02E Data Handbook

Page 1 查询MMDF2N02E/D供应商 Order this document SEMICONDUCTOR TECHNICAL DATA by MMDF2N02E/D Medium Power Surface Mount Products DUAL TMOS MOSFET Mini MOS devices are an advanced series of power MOSFETs 3.6 AMPE...
Page 2 ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characteristic Symbol Min Typ Max Unit OFF CHARACTERISTICS Drain–to–Source Breakdown Voltage V(BR)DSS Vdc (VGS = 0 Vdc, ID = 250 µAdc) Zer...
Page 3 TYPICAL ELECTRICAL CHARACTERISTICS S( on AI –T –S ES IS TA (N AL IZ ED S( on AI –T –S ES IS TA (O S) , D AI EN (A PS VGS = 10 V7 VDS ≥ 10 V 3.5 V TJ = 25°C TJ = –55°C TJ = 25°C VDS, DRAIN–TO–SOURCE VO...
Page 4 POWER MOSFET SWITCHING Switching behavior is most easily modeled and predicted t, TI (n s) During the turn–on and turn–off delay times, gate current is , C AP AC IT AN (p F) by recognizing that the po...
Page 5 di/dt = 300 A/µs Standard Cell Density , D AI EN (A PS High Cell Density trr , S EN t, TIME Figure 11. Reverse Recovery Time (trr) SAFE OPERATING AREA The Forward Biased Safe Operating Area curves def...
Page 6 TYPICAL ELECTRICAL CHARACTERISTICS th ja (t) , E FF EC TI VE AN SI EN TH ER AL ES IS TA 0.05 Normalized to θja at 10s. Chip 0.0175 Ω 0.0710 Ω 0.2706 Ω 0.5776 Ω 0.7086 Ω SINGLE PULSE Ambient t, TIME (s...
Page 7 INFORMATION FOR USING THE SO–8 SURFACE MOUNT PACKAGE MINIMUM RECOMMENDED FOOTPRINT FOR SURFACE MOUNTED APPLICATIONS Surface mount board layout is a critical portion of the total between the board and ...
Page 8 TYPICAL SOLDER HEATING PROFILE For any given circuit board, there will be a group of control line on the graph shows the actual temperature that might be settings that will give the desired heat patte...
Page 9 PACKAGE DIMENSIONS NOTES: 1. DIMENSIONS A AND B ARE DATUMS AND T IS A DATUM SURFACE. 2. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 3. DIMENSIONS ARE IN MILLIMETER. 4. DIMENSION A AND B DO NOT...
Page 10 Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding the suitability of its products for any par...

Manual Details

Brand Motorola
Pages 10
File Size 222.84 KB
Published June 06, 2026
31 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the typical static drain-to-source on-resistance (Rds(on))?

At V = 10Vdc and I = 2.2Adc, the typical Rds(on) is 0.100 Ohm.

Which types of applications are suitable for this MiniMOS MOSFET?

It is designed for low voltage, high speed switching in dc–dc converters and power management products like computers or printers.

What is the maximum operating temperature range for the device?

The specified operating and storage temperature range (T) is -55 to 150°C.
