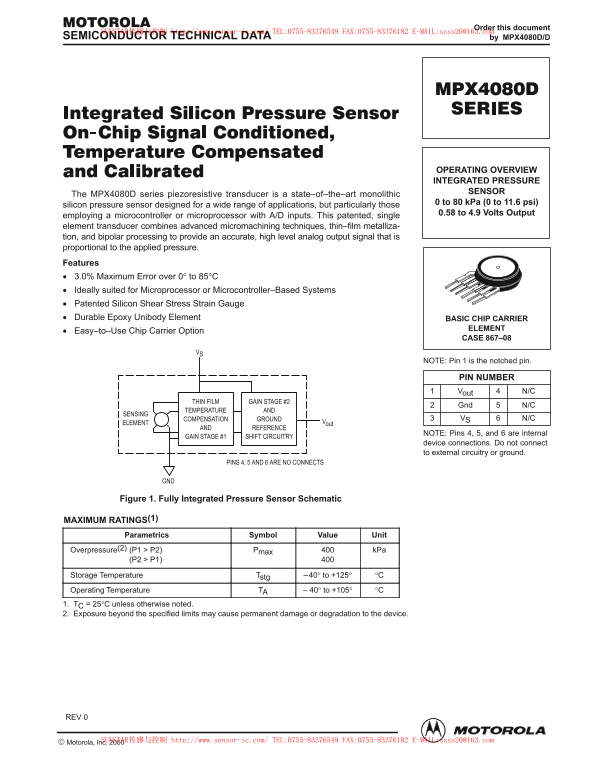

SEMICONDUCTOR TECHNICAL DATA by MPX4080D/D
!# OPERATING OVERVIEW INTEGRATED PRESSURE SENSOR
The MPX4080D series piezoresistive transducer is a state–of–the–art monolithic
0 to 80 k Pa (0 to 11.6 psi)
silicon pressure sensor designed for a wide range of applications, but particularly those
0.58 to 4.9 Volts Output
employing a microcontroller or microprocessor with A/D inputs. This patented, single element transducer combines advanced micromachining techniques, thin–film metalliza- tion, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure. Features 3.0% Maximum Error over 0° to 85°C Ideally suited for Microprocessor or Microcontroller–Based Systems Patented Silicon Shear Stress Strain Gauge Durable Epoxy Unibody Element BASIC CHIP CARRIER
ELEMENT
Easy–to–Use Chip Carrier Option
CASE 867–08
NOTE: Pin 1 is the notched pin.
PIN NUMBER
Vout N/C
THIN FILM GAIN STAGE #2
Gnd N/C
TEMPERATURE AND
SENSING
COMPENSATION GROUND VS N/C
ELEMENT Vout
AND REFERENCE
NOTE: Pins 4, 5, and 6 are internal
GAIN STAGE #1 SHIFT CIRCUITRY
device connections. Do not connect to external circuitry or ground.
PINS 4, 5 AND 6 ARE NO CONNECTS
Figure 1. Fully Integrated Pressure Sensor Schematic
MAXIMUM RATINGS(1)
Parametrics Symbol Value Unit
Overpressure(2) (P1 > P2) Pmax k Pa
Storage Temperature Tstg –40° to +125° °C Operating Temperature TA 40° to +105° °C 1. TC = 25°C unless otherwise noted. 2. Exposure beyond the specified limits may cause permanent damage or degradation to the device.
REV 0
1Motorola Sensor Device Data
