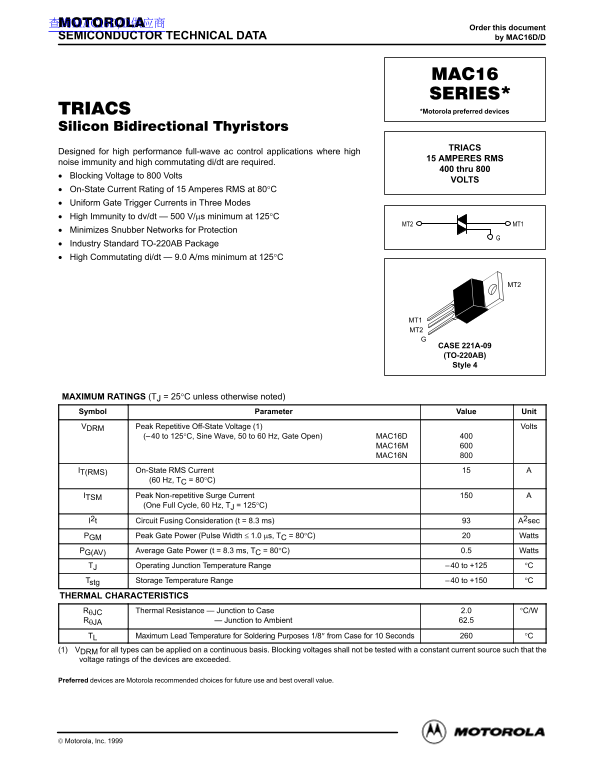

MOTOROLA MAC16 SERIES User Guide and Owner's Manual (Part 1)

查询MAC16D/D供应商

Order this document

SEMICONDUCTOR TECHNICAL DATA by MAC16D/D

*Motorola preferred devices

TRIACS

Designed for high performance full-wave ac control applications where high

15 AMPERES RMS

noise immunity and high commutating di/dt are required.

400 thru 800

Blocking Voltage to 800 Volts

VOLTS

On-State Current Rating of 15 Amperes RMS at 80°C Uniform Gate Trigger Currents in Three Modes High Immunity to dv/dt — 500 V/µs minimum at 125°C

MT2 MT1

Minimizes Snubber Networks for Protection Industry Standard TO-220AB Package High Commutating di/dt — 9.0 A/ms minimum at 125°C

MT1 MT2

CASE 221A-09 (TO-220AB) Style 4

MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Symbol Parameter Value Unit VDRM Peak Repetitive Off-State Voltage (1) Volts

(–40 to 125°C, Sine Wave, 50 to 60 Hz, Gate Open) MAC16D

MAC16M MAC16N

IT(RMS) On-State RMS Current

(60 Hz, TC = 80°C)

ITSM Peak Non-repetitive Surge Current

(One Full Cycle, 60 Hz, TJ = 125°C)

I2t Circuit Fusing Consideration (t = 8.3 ms) A2sec PGM Peak Gate Power (Pulse Width ≤ 1.0 µs, TC = 80°C) Watts PG(AV) Average Gate Power (t = 8.3 ms, TC = 80°C) 0.5 Watts TJ Operating Junction Temperature Range –40 to +125 °C Tstg Storage Temperature Range –40 to +150 °C THERMAL CHARACTERISTICS RθJC Thermal Resistance — Junction to Case 2.0 °C/W RθJA Thermal Resistance — Junction to Ambient 62.5 TL Maximum Lead Temperature for Soldering Purposes 1/8″ from Case for 10 Seconds °C (1) VDRM for all types can be applied on a continuous basis. Blocking voltages shall not be tested with a constant current source such that the voltage ratings of the devices are exceeded.

Preferred devices are Motorola recommended choices for future use and best overall value.

1Motorola Thyristor Device Data

 Motorola, Inc. 1999
