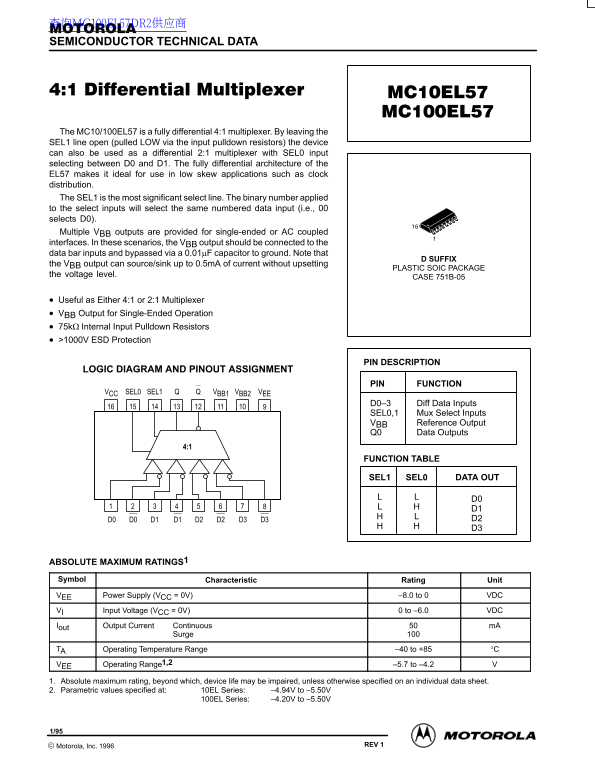

MOTOROLA MC10EL57 MC100EL57 User Guide and Technical Specifications (Part 2)

查询MC100EL57DR2供应商 SEMICONDUCTOR TECHNICAL DATA

The MC10/100EL57 is a fully differential 4:1 multiplexer. By leaving the SEL1 line open (pulled LOW via the input pulldown resistors) the device can also be used as a differential 2:1 multiplexer with SEL0 input selecting between D0 and D1. The fully differential architecture of the EL57 makes it ideal for use in low skew applications such as clock distribution. The SEL1 is the most significant select line. The binary number applied to the select inputs will select the same numbered data input (i.e., 00 selects D0). Multiple VBB outputs are provided for single-ended or AC coupled interfaces. In these scenarios, the VBB output should be connected to the data bar inputs and bypassed via a 0.01µF capacitor to ground. Note that

D SUFFIX

the VBB output can source/sink up to 0.5m A of current without upsetting

PLASTIC SOIC PACKAGE

the voltage level.

CASE 751B-05

Useful as Either 4:1 or 2:1 Multiplexer VBB Output for Single-Ended Operation 75kΩ Internal Input Pulldown Resistors >1000V ESD Protection

PIN DESCRIPTION

LOGIC DIAGRAM AND PINOUT ASSIGNMENT

PIN FUNCTION

VCC SEL0 SEL1 VBB1 VBB2 VEE

D0–3 Diff Data Inputs SEL0,1 Mux Select Inputs VBB Reference Output Q0 Data Outputs

FUNCTION TABLE

SEL1 SEL0 DATA OUT

ABSOLUTE MAXIMUM RATINGS1 Symbol Characteristic Rating Unit

VEE Power Supply (VCC = 0V) –8.0 to 0 VDC VI Input Voltage (VCC = 0V) 0 to –6.0 VDC Iout Output Current Continuous m A

Surge

TA Operating Temperature Range –40 to +85 °C VEE Operating Range1,2 –5.7 to –4.2

1. Absolute maximum rating, beyond which, device life may be impaired, unless otherwise specified on an individual data sheet. 2. Parametric values specified at: 10EL Series: –4.94V to –5.50V

100EL Series: –4.20V to –5.50V

3–1 REV 1 Motorola, Inc. 1996
