This versatile IC is a high-performance translator, converting standard TTL logic levels to differential PECL signals. It is engineered for applications demanding exceptional performance, low power consumption, and minimal board space. The manual provides comprehensive documentation, including detailed electrical characteristics, precise timing diagrams, maximum ratings, and pinout information for both 10ELT and 100ELT variants. Ideal for electronics engineers and designers requiring reliable signal conversion in high-speed digital systems.

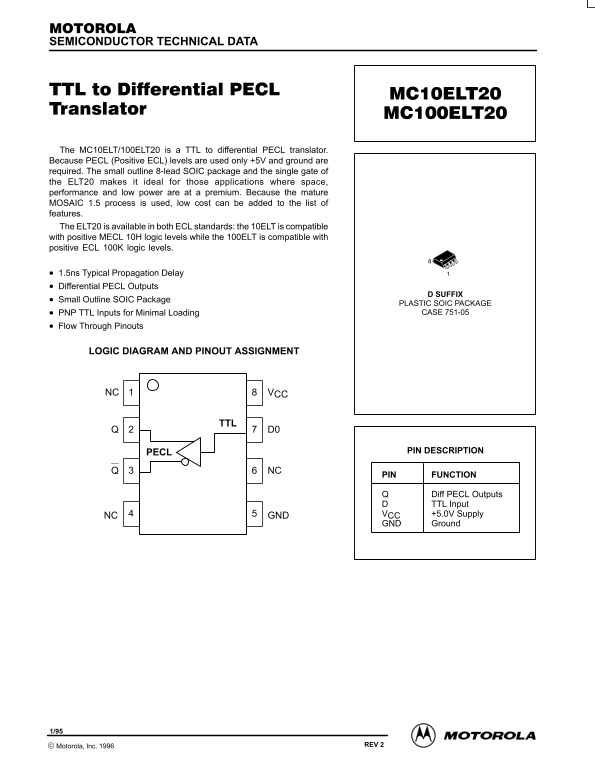

Page 1 Text Content
SEMICONDUCTOR TECHNICAL DATA
The MC10ELT/100ELT20 is a TTL to differential PECL translator. Because PECL (Positive ECL) levels are used only +5V and ground are required. The small outline 8-lead SOIC package and the single gate of the ELT20 makes it ideal for those applications where space, performance and low power are at a premium. Because the mature MOSAIC 1.5 process is used, low cost can be added to the list of features. The ELT20 is available in both ECL standards: the 10ELT is compatible with positive MECL 10H logic levels while the 100ELT is compatible with positive ECL 100K logic levels.
1.5ns Typical Propagation Delay Differential PECL Outputs
D SUFFIX
Small Outline SOIC Package
PLASTIC SOIC PACKAGE PNP TTL Inputs for Minimal Loading CASE 751-05
Flow Through Pinouts
LOGIC DIAGRAM AND PINOUT ASSIGNMENT
NC VCC
PECL PIN DESCRIPTION
PIN FUNCTION
Diff PECL Outputs TTL Input
NC GND VCC +5.0V Supply GND Ground
3–1 REV 2 Motorola, Inc. 1996
