This specialized manual details the MAC229-10FP Silicon Bidirectional Triode Thyristor (TRIAC), critical for AC power load control and high-reliability switching applications. The comprehensive documentation provides engineers with essential technical specifications, including detailed maximum ratings, thermal characteristics, and electrical performance data necessary for circuit design. This resource is vital for electrical and electronics professionals designing industrial controls, appliance timing systems, heater controls, and general power conversion circuits requiring stable full-wave control.

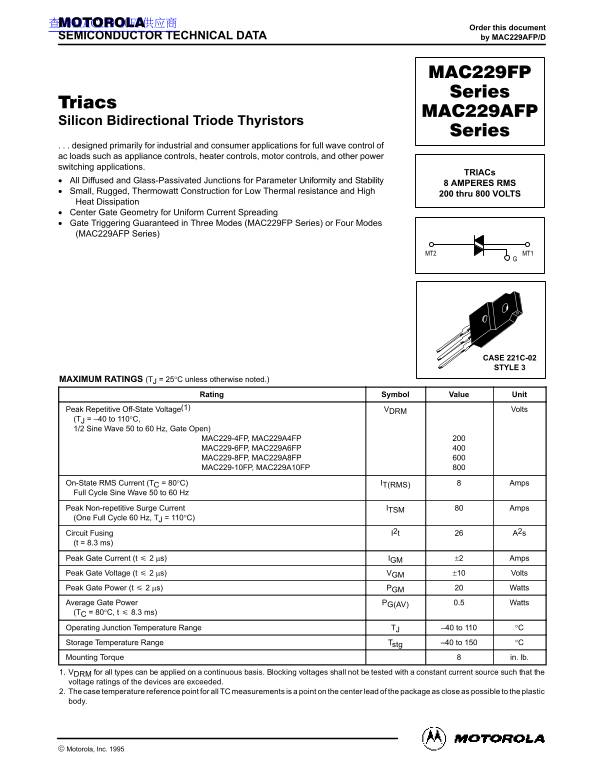

Page 1 Text Content
查询MAC229-10FP供应商
Order this document
SEMICONDUCTOR TECHNICAL DATA by MAC229AFP/D
Silicon Bidirectional Triode Thyristors . . . designed primarily for industrial and consumer applications for full wave control of ac loads such as appliance controls, heater controls, motor controls, and other power switching applications.
TRIACs
All Diffused and Glass-Passivated Junctions for Parameter Uniformity and Stability
8 AMPERES RMS
Small, Rugged, Thermowatt Construction for Low Thermal resistance and High
200 thru 800 VOLTS
Heat Dissipation Center Gate Geometry for Uniform Current Spreading Gate Triggering Guaranteed in Three Modes (MAC229FP Series) or Four Modes (MAC229AFP Series)
MT2 MT1
CASE 221C-02 STYLE 3
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted.)
Rating Symbol Value Unit
Peak Repetitive Off-State Voltage(1) VDRM Volts (TJ = –40 to 110°C, 1/2 Sine Wave 50 to 60 Hz, Gate Open)
MAC229-4FP, MAC229A4FP MAC229-6FP, MAC229A6FP MAC229-8FP, MAC229A8FP MAC229-10FP, MAC229A10FP
On-State RMS Current (TC = 80°C) IT(RMS) Amps Full Cycle Sine Wave 50 to 60 Hz Peak Non-repetitive Surge Current ITSM Amps (One Full Cycle 60 Hz, TJ = 110°C) Circuit Fusing I2t A2s (t = 8.3 ms) Peak Gate Current (t 2 µs) IGM ±2 Amps Peak Gate Voltage (t 2 µs) VGM ±10 Volts Peak Gate Power (t 2 µs) PGM Watts Average Gate Power PG(AV) 0.5 Watts (TC = 80°C, t 8.3 ms) Operating Junction Temperature Range TJ –40 to 110 °C Storage Temperature Range Tstg –40 to 150 °C Mounting Torque in. lb. 1. VDRM for all types can be applied on a continuous basis. Blocking voltages shall not be tested with a constant current source such that the voltage ratings of the devices are exceeded. 2. The case temperature reference point for all TC measurements is a point on the center lead of the package as close as possible to the plastic body.
1Motorola Thyristor Device Data
Motorola, Inc. 1995
Page Summary Contents For Motorola MAC229FP Series Data Sheet Owner's Manual MAC229AFP Series Data Sheet Owner's Manual
Manual Details
| Brand | Motorola |
|---|---|
| Pages | 4 |
| File Size | 92.42 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the primary applications for this thyristor device?
It was designed primarily for industrial and consumer applications for full wave control of AC loads, like appliance, heater, or motor controls.
Are there voltage restrictions when testing blocking voltages?
Blocking voltages shall not be tested with a constant current source such that the DRM voltage ratings are exceeded.
What is the recommended maximum safe operating temperature range?
The Operating Junction Temperature Range (Tj) is specified as –40 to 110 °C.
Is this device suitable for life support applications?
No, Motorola products are not designed or authorized for use in systems intended for surgical implant into the body, or other applications that sustain life.
