The MMA series of silicon capacitive accelerometers provides high-precision, micromachined sensing for critical motion monitoring applications. Featuring integral signal conditioning, 4th order filtering, and full temperature compensation, these devices ensure reliable measurements in vibration and impact sensing. This comprehensive manual serves as a technical guide for engineers and system designers, detailing electrical characteristics, functional block diagrams, maximum ratings, and operational specifications necessary for integrating the sensor into advanced electronic systems.

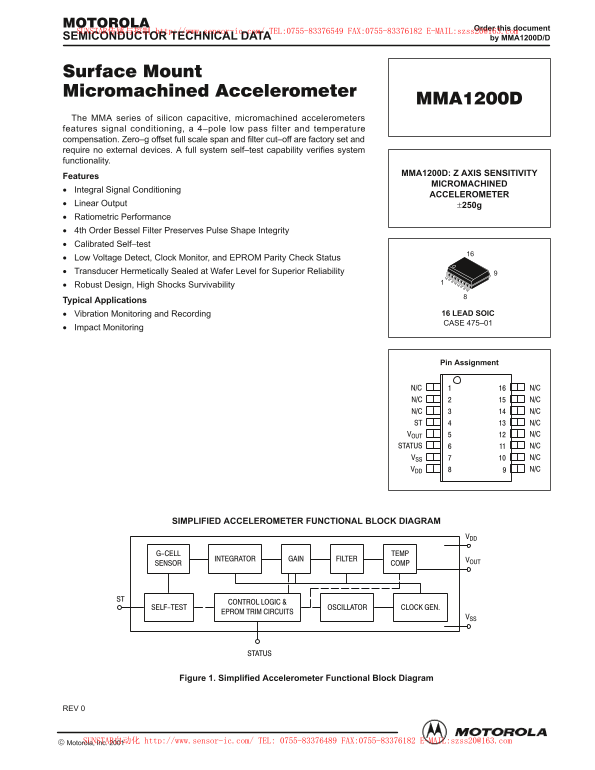

Page 1 Text Content
Order this document
SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:[email protected] SEMICONDUCTOR TECHNICAL DATA by MMA1200D/D
The MMA series of silicon capacitive, micromachined accelerometers features signal conditioning, a 4–pole low pass filter and temperature compensation. Zero–g offset full scale span and filter cut–off are factory set and require no external devices. A full system self–test capability verifies system functionality.
MMA1200D: Z AXIS SENSITIVITY
Features
MICROMACHINED
Integral Signal Conditioning
ACCELEROMETER
Linear Output ±250g Ratiometric Performance 4th Order Bessel Filter Preserves Pulse Shape Integrity Calibrated Self–test Low Voltage Detect, Clock Monitor, and EPROM Parity Check Status Transducer Hermetically Sealed at Wafer Level for Superior Reliability Robust Design, High Shocks Survivability Typical Applications
Vibration Monitoring and Recording 16 LEAD SOIC CASE 475–01
Impact Monitoring
Pin Assignment
SIMPLIFIED ACCELEROMETER FUNCTIONAL BLOCK DIAGRAM
Figure 1. Simplified Accelerometer Functional Block Diagram
REV 0
1Motorola Sensor Device Data
Motorola, Inc. 2001 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:[email protected]
