The MPC2104P and MPC2105P are secondary cache modules providing high-performance, burstable L2 cache for PowerPC 60x microprocessors operating within PReP/CHRP platforms. These units utilize advanced synchronous BurstRAM technology to accelerate system processing speed. This technical manual provides detailed specifications, pin assignments, and operational parameters necessary for engineers designing reliable, high-speed computing systems for PowerPC embedded applications requiring maximum data throughput.

📄 Preview PAGE OF 16

Page 1 Text Content

查询MPC2104P供应商

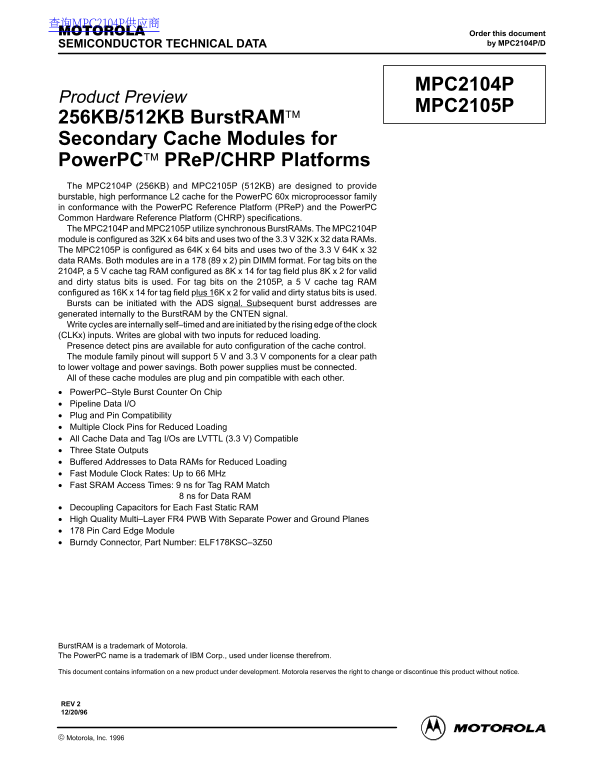

Order this document SEMICONDUCTOR TECHNICAL DATA by MPC2104P/D

MPC2104P

Product Preview

MPC2105P

256KB/512KB Burst RAM Secondary Cache Modules for Power PC PRe P/CHRP Platforms The MPC2104P (256KB) and MPC2105P (512KB) are designed to provide burstable, high performance L2 cache for the Power PC 60x microprocessor family in conformance with the Power PC Reference Platform (PRe P) and the Power PC Common Hardware Reference Platform (CHRP) specifications. The MPC2104P and MPC2105P utilize synchronous Burst RAMs. The MPC2104P module is configured as 32K x 64 bits and uses two of the 3.3 V 32K x 32 data RAMs. The MPC2105P is configured as 64K x 64 bits and uses two of the 3.3 V 64K x 32 data RAMs. Both modules are in a 178 (89 x 2) pin DIMM format. For tag bits on the 2104P, a 5 V cache tag RAM configured as 8K x 14 for tag field plus 8K x 2 for valid and dirty status bits is used. For tag bits on the 2105P, a 5 V cache tag RAM configured as 16K x 14 for tag field plus 16K x 2 for valid and dirty status bits is used. Bursts can be initiated with the ADS signal. Subsequent burst addresses are generated internally to the Burst RAM by the CNTEN signal. Write cycles are internally self–timed and are initiated by the rising edge of the clock (CLKx) inputs. Writes are global with two inputs for reduced loading. Presence detect pins are available for auto configuration of the cache control. The module family pinout will support 5 V and 3.3 V components for a clear path to lower voltage and power savings. Both power supplies must be connected. All of these cache modules are plug and pin compatible with each other. Power PC–Style Burst Counter On Chip Pipeline Data I/O Plug and Pin Compatibility Multiple Clock Pins for Reduced Loading All Cache Data and Tag I/Os are LVTTL (3.3 V) Compatible Three State Outputs Buffered Addresses to Data RAMs for Reduced Loading Fast Module Clock Rates: Up to 66 MHz Fast SRAM Access Times: 9 ns for Tag RAM Match

8 ns for Data RAM

Decoupling Capacitors for Each Fast Static RAM High Quality Multi–Layer FR4 PWB With Separate Power and Ground Planes 178 Pin Card Edge Module Burndy Connector, Part Number: ELF178KSC–3Z50

Burst RAM is a trademark of Motorola. The Power PC name is a trademark of IBM Corp., used under license therefrom.

This document contains information on a new product under development. Motorola reserves the right to change or discontinue this product without notice.

REV 2 12/20/96

MOTOROLA FAST SRAM  Motorola, Inc. 1996 MPC2104P•MPC2105P

Page Summary Contents For Motorola MPC2104P MPC2105P User Guide

Page 1 查询MPC2104P供应商 Order this document SEMICONDUCTOR TECHNICAL DATA by MPC2104P/D MPC2104P Product Preview MPC2105P 256KB/512KB Burst RAM Secondary Cache Modules for Power PC PRe P/CHRP Platforms The MPC...
Page 2 MPC2104P BLOCK DIAGRAM 32K x 32 SRAM A28 SA0 SGW CWE0 A27 SA1 A14 – A26 SA SW ADS0 ADSC SBa – SBd VDD CNTEN0 ADV VSS SE1 CG0 CLK0 DQa – DQd DH0 – DH31 VDD VDD LBO BURSTMODE VSS ZZ SE3 STANDBY VDD via ...
Page 3 MPC2105P BLOCK DIAGRAM 64K x 32 SRAM A28 SA0 SGW CWE0 A27 SA1 A13 – A26 SA SW ADS0 ADSC SBa – SBd VDD CNTEN0 ADV VSS SE1 CG0 CLK0 DQa – DQd DH0 – DH31 VDD VDD LBO BURSTMODE VSS ZZ SE3 STANDBY VDD via ...
Page 4 PIN ASSIGNMENT 178–LEAD DIMM Pin Name Pin Name Pin Name Pin Name Pin Name Pin Name Pin Name VSS DH0 DL1 VSS DH14 DL17 A22 PD0/IDSCLK NC DL0 A7 DH13 NC A20 PD2 VSS VSS A5 NC DL15 VSS DH30 CLK1 CLK2 A3 ...
Page 5 PIN DESCRIPTIONS Pin Locations Symbol Type Description 66, 67, 68, 69, 71, 72, 73, A0 – A28 Input Address Inputs — (MSB:0, LSB:28). 74, 76, 77, 78, 80, 81, 82, 83, 155, 156, 157, 158, 160, 161, 162, 1...
Page 6 TRUTH TABLE (See Notes 1 through 4) Address Next Cycle Used Standby ADS0 CNTEN0 CG0 2 DHx/DLx CWEx 2 Deselect None High–Z Begin Read External High–Z Continue Read Next High–Z Continue Read Next DQ Sus...
Page 7 ABSOLUTE MAXIMUM RATINGS (Voltages Referenced to VSS = 0 V) This device contains circuitry to protect the Rating Symbol Value Unit inputs against damage due to high static volt- Power Supply Voltage T...
Page 8 DATA RAMs AC OPERATING CONDITIONS AND CHARACTERISTICS (VCC = 5.0 V ± 5%, VDD = 3.3 V + 10%, – 5%, TA = 0 to + 70°C, Unless Otherwise Noted) Input Timing Measurement Reference Level 1.5 V. . . . . . . ...
Page 9 /W IT KH KL LK AD S0 ST AN BY SI LE ES EL EC TE SI LE EA BU ST EA BU ST IT MOTOROLA FAST SRAM MPC2104P•MPC2105P
Page 10 TAG RAM RESET FUNCTION TRUTH TABLE (See Notes 1 and 2) TCLR CLK TWE TAG0 – TAG11 DIRTYOUT MATCH Operation POWER L – H High–Z L(3) L(3) Reset Status Active L – H Not Allowed NOTES: 1. H = VIH, L = VIL,...
Page 11 TAG RAM AC OPERATING CONDITIONS AND CHARACTERISTICS (VCC = 5.0 V ± 5%, TA = 0 to + 70°C, Unless Otherwise Noted) Input Timing Measurement Reference Level 1.5 V. . . . . . . . . . . . . . . Output Timi...
Page 12 TA IT (S ee ot 2) ST AT IT TA EA TA EA TA IT AF TE IT AF TE EA KH KL KL KH KH KH A1 A2 VA LI VA LI VA LI AV KH KH AX VK KH VK KH (S EE TE LQ KH LQ (S EE TE AV KH KH AX VA LI VA LI VA LI IN PU VA LI TP...
Page 13 TAG RAM MATCH CYCLE Tag RAM ym Min Max iarameter Clock High Write to MATCH Invalid t KHML ns Clock High Read to MATCH Valid t KHMV ns Address Valid to MATCH Valid t AVMV ns MATCH Valid Hold from Addre...
Page 14 A1 A2 6* VA LI ES VM XM A0 VA LI AT AT FR : P ES SO TA AM PR ES SO VK VK LM LM AT VA LI AT AL ID VA LI VA LI *C ac he dd re ss es se ar e: fo P. MPC2104P•MPC2105P MOTOROLA FAST SRAM
Page 15 TAG RAM TCLR FUNCTION t STC t HTC t SRST t SHRS DIRTYOUT t WVKH t RHWX t RSMV MATCH VALID t RSQZ* t RSQX Transition is measured plus or minus 200 m V from steady state. ORDERING INFORMATION (Order by ...
Page 16 Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding the suitability of its products for any par...
