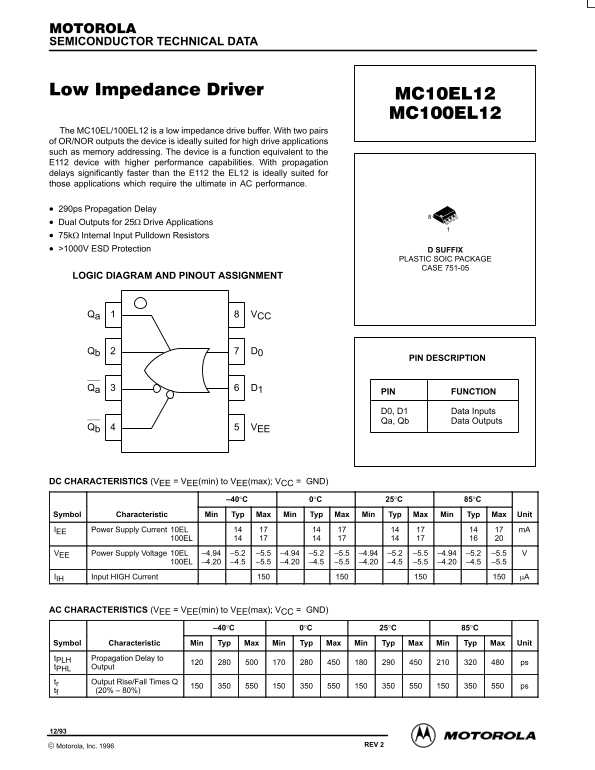

Motorola MC10EL12 MC100EL12 User Guide

SEMICONDUCTOR TECHNICAL DATA

The MC10EL/100EL12 is a low impedance drive buffer. With two pairs of OR/NOR outputs the device is ideally suited for high drive applications such as memory addressing. The device is a function equivalent to the E112 device with higher performance capabilities. With propagation delays significantly faster than the E112 the EL12 is ideally suited for those applications which require the ultimate in AC performance.

290ps Propagation Delay Dual Outputs for 25Ω Drive Applications 75kΩ Internal Input Pulldown Resistors >1000V ESD Protection D SUFFIX

PLASTIC SOIC PACKAGE CASE 751-05

LOGIC DIAGRAM AND PINOUT ASSIGNMENT

Qa VCC

Qb D0

PIN DESCRIPTION

PIN FUNCTION

D0, D1 Data Inputs Qa, Qb Data Outputs

Qb VEE

DC CHARACTERISTICS (VEE = VEE(min) to VEE(max); VCC = GND)

Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Min Typ Max Unit IEE Power Supply Current 10EL m A

100EL

VEE Power Supply Voltage 10EL –4.94 –5.2 –5.5 –4.94 –5.2 –5.5 –4.94 –5.2 –5.5 –4.94 –5.2 –5.5

100EL –4.20 –4.5 –5.5 –4.20 –4.5 –5.5 –4.20 –4.5 –5.5 –4.20 –4.5 –5.5

IIH Input HIGH Current µA

AC CHARACTERISTICS (VEE = VEE(min) to VEE(max); VCC = GND)

Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Min Typ Max Unit t PLH Propagation Delay to

t PHL Output tr Output Rise/Fall Times Q

tf (20% – 80%)

3–1 REV 2 Motorola, Inc. 1996
