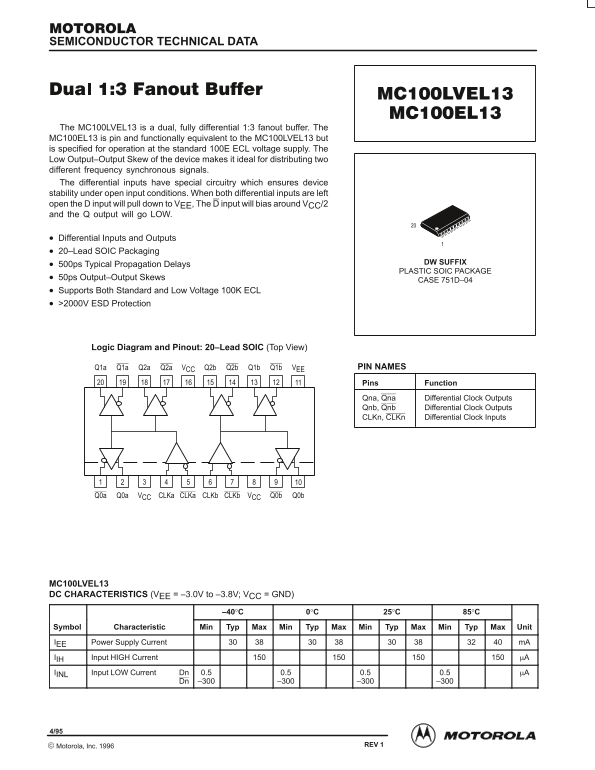

Motorola MC100LVEL13 MC100EL13 User Guide

SEMICONDUCTOR TECHNICAL DATA

The MC100LVEL13 is a dual, fully differential 1:3 fanout buffer. The MC100EL13 is pin and functionally equivalent to the MC100LVEL13 but is specified for operation at the standard 100E ECL voltage supply. The Low Output–Output Skew of the device makes it ideal for distributing two different frequency synchronous signals. The differential inputs have special circuitry which ensures device stability under open input conditions. When both differential inputs are left open the D input will pull down to VEE, The D input will bias around VCC/2 and the Q output will go LOW.

Differential Inputs and Outputs 20–Lead SOIC Packaging

DW SUFFIX

500ps Typical Propagation Delays

PLASTIC SOIC PACKAGE

50ps Output–Output Skews

CASE 751D–04

Supports Both Standard and Low Voltage 100K ECL >2000V ESD Protection

Logic Diagram and Pinout: 20–Lead SOIC (Top View)

Q1a Q1a Q2a Q2a VCC Q2b Q2b Q1b Q1b VEE PIN NAMES

Pins Function Qna, Qna Differential Clock Outputs

Qnb, Qnb Differential Clock Outputs CLKn, CLKn Differential Clock Inputs

Q0a VCC CLKa CLKa CLKb Q0a CLKb VCC Q0b Q0b

MC100LVEL13 DC CHARACTERISTICS (VEE = –3.0V to –3.8V; VCC = GND)

Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Min Typ Max Unit IEE Power Supply Current m A IIH Input HIGH Current µA IINL Input LOW Current Dn 0.5 0.5 0.5 0.5 µA

Dn –300 –300 –300 –300

4–1 REV 1 Motorola, Inc. 1996
