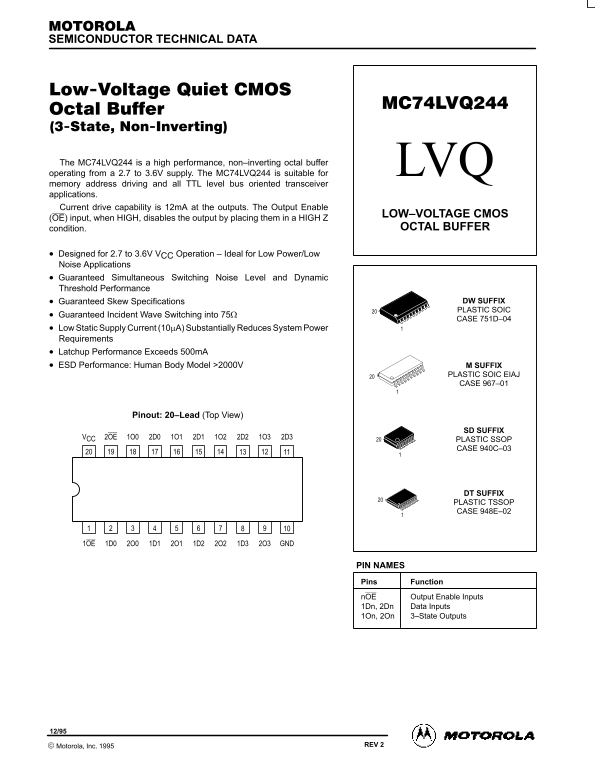

MOTOROLA MC74LVQ244 LVQ User's Manual

SEMICONDUCTOR TECHNICAL DATA

The MC74LVQ244 is a high performance, non–inverting octal buffer operating from a 2.7 to 3.6V supply. The MC74LVQ244 is suitable for LVQ memory address driving and all TTL level bus oriented transceiver applications. Current drive capability is 12m A at the outputs. The Output Enable

LOW–VOLTAGE CMOS

(OE) input, when HIGH, disables the output by placing them in a HIGH Z

condition. OCTAL BUFFER

Designed for 2.7 to 3.6V VCC Operation – Ideal for Low Power/Low Noise Applications Guaranteed Simultaneous Switching Noise Level and Dynamic Threshold Performance

Guaranteed Skew Specifications DW SUFFIX PLASTIC SOIC

Guaranteed Incident Wave Switching into 75Ω

CASE 751D–04

Low Static Supply Current (10µA) Substantially Reduces System Power Requirements Latchup Performance Exceeds 500m A ESD Performance: Human Body Model >2000V M SUFFIX

PLASTIC SOIC EIAJ CASE 967–01

Pinout: 20–Lead (Top View)

SD SUFFIX

VCC 2OE 1O0 2D0 1O1 2D1 1O2 2D2 1O3 2D3

PLASTIC SSOP CASE 940C–03

DT SUFFIX PLASTIC TSSOP CASE 948E–02

1OE 1D0 2O0 1D1 2O1 1D2 2O2 1D3 2O3 GND

PIN NAMES

Pins Function n OE Output Enable Inputs

1Dn, 2Dn Data Inputs 1On, 2On 3–State Outputs

REV 2 Motorola, Inc. 1995
