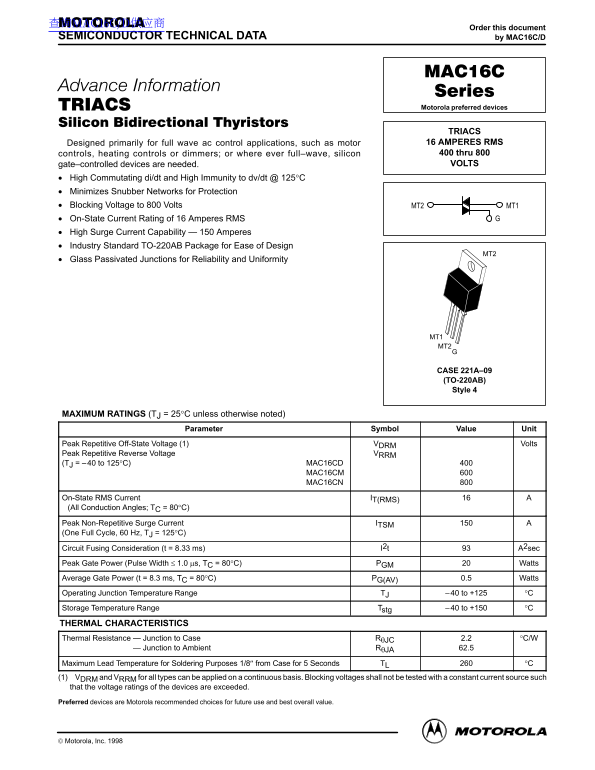

Motorola MAC16C Series User's Manual

查询MAC16C/D供应商

Order this document

SEMICONDUCTOR TECHNICAL DATA by MAC16C/D

Motorola preferred devices

TRIACS Designed primarily for full wave ac control applications, such as motor 16 AMPERES RMS controls, heating controls or dimmers; or where ever full–wave, silicon 400 thru 800 gate–controlled devices are needed. VOLTS

High Commutating di/dt and High Immunity to dv/dt @ 125°C Minimizes Snubber Networks for Protection Blocking Voltage to 800 Volts MT2 MT1 On-State Current Rating of 16 Amperes RMS High Surge Current Capability — 150 Amperes Industry Standard TO-220AB Package for Ease of Design

Glass Passivated Junctions for Reliability and Uniformity

MT1 MT2

CASE 221A–09 (TO-220AB) Style 4

MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)

Parameter Symbol Value Unit

Peak Repetitive Off-State Voltage (1) VDRM Volts Peak Repetitive Reverse Voltage VRRM (TJ = –40 to 125°C) MAC16CD

MAC16CM MAC16CN

On-State RMS Current IT(RMS) (All Conduction Angles; TC = 80°C) Peak Non-Repetitive Surge Current ITSM (One Full Cycle, 60 Hz, TJ = 125°C) Circuit Fusing Consideration (t = 8.33 ms) I2t A2sec Peak Gate Power (Pulse Width ≤ 1.0 µs, TC = 80°C) PGM Watts Average Gate Power (t = 8.3 ms, TC = 80°C) PG(AV) 0.5 Watts Operating Junction Temperature Range TJ –40 to +125 °C Storage Temperature Range Tstg –40 to +150 °C

THERMAL CHARACTERISTICS Thermal Resistance — Junction to Case RθJC 2.2 °C/W Thermal Resistance — Junction to Ambient RθJA 62.5 Maximum Lead Temperature for Soldering Purposes 1/8″ from Case for 5 Seconds TL °C (1) VDRM and VRRM for all types can be applied on a continuous basis. Blocking voltages shall not be tested with a constant current source such that the voltage ratings of the devices are exceeded. Preferred devices are Motorola recommended choices for future use and best overall value.

1Motorola Thyristor Device Data

 Motorola, Inc. 1998
