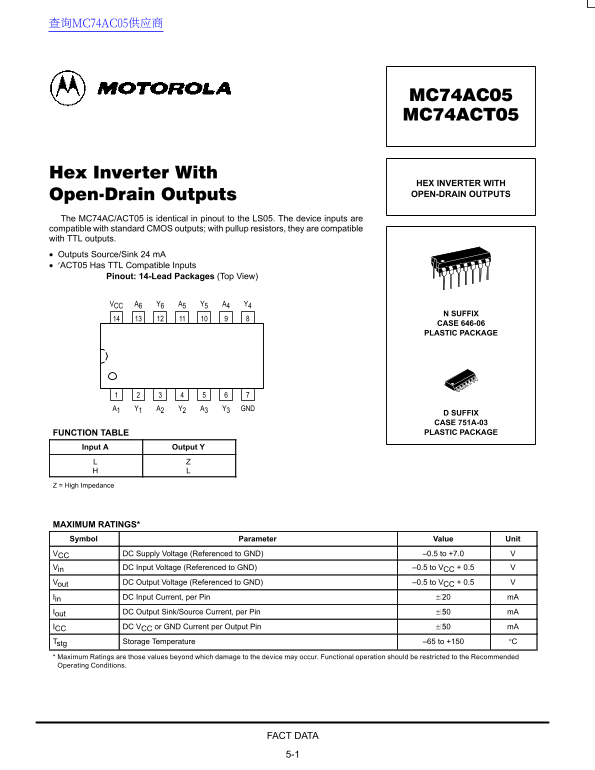

Page 1 Text Content
查询MC74AC05供应商
HEX INVERTER WITH OPEN-DRAIN OUTPUTS
The MC74AC/ACT05 is identical in pinout to the LS05. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with TTL outputs. Outputs Source/Sink 24 m A ′ACT05 Has TTL Compatible Inputs
Pinout: 14-Lead Packages (Top View)
VCC A6 Y6 A5 Y5 A4 Y4
N SUFFIX CASE 646-06 PLASTIC PACKAGE
A1 Y1 A2 Y2 A3 Y3 GND
D SUFFIX CASE 751A-03 FUNCTION TABLE PLASTIC PACKAGE
Input A Output Y
Z = High Impedance
MAXIMUM RATINGS* Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) –0.5 to +7.0 Vin DC Input Voltage (Referenced to GND) –0.5 to VCC + 0.5 Vout DC Output Voltage (Referenced to GND) –0.5 to VCC + 0.5 Iin DC Input Current, per Pin ± 20 m A Iout DC Output Sink/Source Current, per Pin ± 50 m A ICC DC VCC or GND Current per Output Pin ± 50 m A Tstg Storage Temperature –65 to +150 °C Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.
FACT DATA 5-1
