Motorola MKP1V120 MKP1V130 Data Handbook

Summary

This comprehensive technical datasheet details the specifications and operational guidelines for thyristor semiconductor devices (e.g., MKP1V120). The manual provides essential electrical characteristics, maximum ratings, detailed thermal curves, and typical performance graphs to support optimal circuit design. It is designed for electrical engineers and power electronics specialists who require reliable components for robust AC power control applications, including lighting systems, strobe units, pulse generators, and high-voltage regulation circuits requiring stable switching performance.

📄 Preview PAGE OF 4

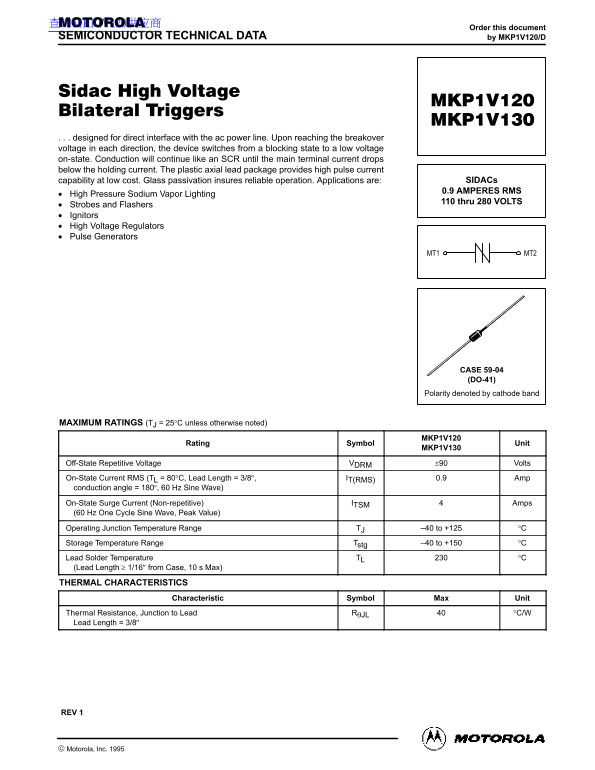

Page 1 Text Content

查询MKP1V120供应商

Order this document

SEMICONDUCTOR TECHNICAL DATA by MKP1V120/D

designed for direct interface with the ac power line. Upon reaching the breakover voltage in each direction, the device switches from a blocking state to a low voltage on-state. Conduction will continue like an SCR until the main terminal current drops below the holding current. The plastic axial lead package provides high pulse current

capability at low cost. Glass passivation insures reliable operation. Applications are: SIDACs 0.9 AMPERES RMS

High Pressure Sodium Vapor Lighting

110 thru 280 VOLTS

Strobes and Flashers Ignitors High Voltage Regulators Pulse Generators

MT1 MT2

CASE 59-04 (DO-41)

Polarity denoted by cathode band

MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)

MKP1V120

Rating Symbol Unit

MKP1V130

Off-State Repetitive Voltage VDRM ±90 Volts On-State Current RMS (TL = 80°C, Lead Length = 3/8″, IT(RMS) 0.9 Amp conduction angle = 180°, 60 Hz Sine Wave) On-State Surge Current (Non-repetitive) ITSM Amps (60 Hz One Cycle Sine Wave, Peak Value) Operating Junction Temperature Range TJ –40 to +125 °C Storage Temperature Range Tstg –40 to +150 °C Lead Solder Temperature TL °C (Lead Length ≥ 1/16″ from Case, 10 s Max) THERMAL CHARACTERISTICS

Characteristic Symbol Max Unit

Thermal Resistance, Junction to Lead RθJL °C/W Lead Length = 3/8″

REV 1

1Motorola Thyristor Device Data

 Motorola, Inc. 1995

Page Summary Contents For Motorola MKP1V120 MKP1V130 Data Handbook

Page 1 查询MKP1V120供应商 Order this document SEMICONDUCTOR TECHNICAL DATA by MKP1V120/D designed for direct interface with the ac power line. Upon reaching the breakover voltage in each direction, the device swi...
Page 2 ELECTRICAL CHARACTERISTICS (TC = 25°C unless otherwise noted; both directions) IN ST AN TA EO -S TA TE EN (A PS AX IM LL AB LE EA EM PE AT Characteristic Symbol Min Typ Max Unit Breakover Voltage VBO ...
Page 3 THERMAL CHARACTERISTICS PK PE AK EN (A PS BO BR EA KO VE LT AG (N AL IZ ED r(t TR AN SI EN TH ER AL ES IS TA (N AL IZ ED The temperature of the lead should be measured 0.3 using a thermocouple placed ...
Page 4 PACKAGE DIMENSIONS NOTES: 1. POLARITY DENOTED BY CATHODE BAND. 2. LEAD DIAMETER NOT CONTROLLED WITHIN F DIMENSION. INCHESMILLIMETERS DIM MIN MAX MIN MAX CASE 59–04 (DO–41) ISSUE M DATE 09/25/84 Motoro...
