This technical manual covers the MC10EL/100EL11, a high-performance differential 1:2 fanout buffer designed for demanding AC applications. It offers superior stability and reduced skew compared to previous generations, featuring internal clamping circuitry for robust operation. Engineers seeking ultimate circuit performance or advanced signal integrity solutions will find this datasheet valuable, providing detailed electrical characteristics, comprehensive pin assignments, and dimensional specifications needed for precision circuit design.

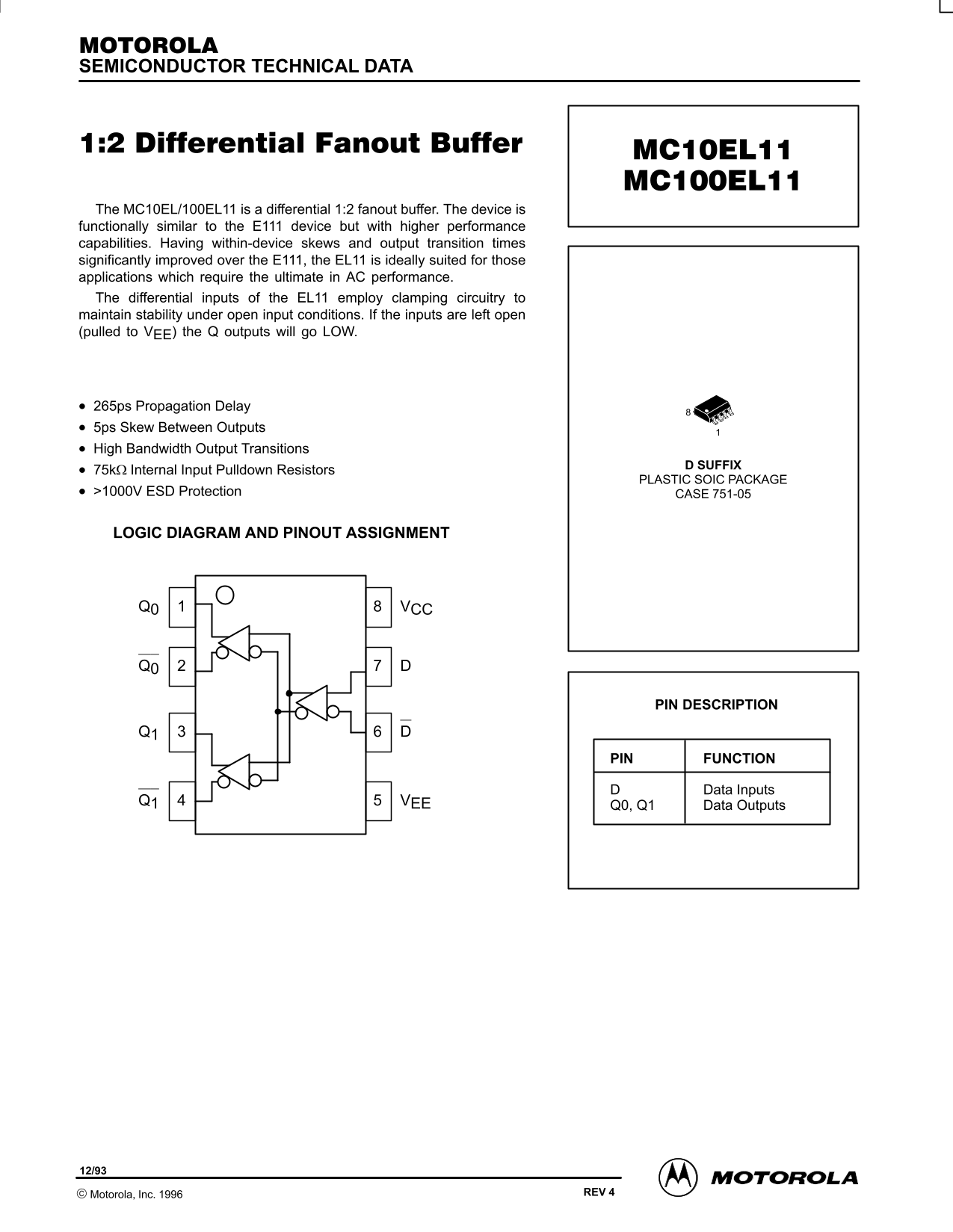

Page 1 Text Content
SEMICONDUCTOR TECHNICAL DATA
The MC10EL/100EL11 is a differential 1:2 fanout buffer. The device is functionally similar to the E111 device but with higher performance capabilities. Having within-device skews and output transition times significantly improved over the E111, the EL11 is ideally suited for those applications which require the ultimate in AC performance. The differential inputs of the EL11 employ clamping circuitry to maintain stability under open input conditions. If the inputs are left open (pulled to VEE) the Q outputs will go LOW.
265ps Propagation Delay 5ps Skew Between Outputs High Bandwidth Output Transitions
D SUFFIX
75kΩ Internal Input Pulldown Resistors
PLASTIC SOIC PACKAGE
>1000V ESD Protection CASE 751-05
LOGIC DIAGRAM AND PINOUT ASSIGNMENT
Q0 VCC
PIN DESCRIPTION
PIN FUNCTION
Data Inputs
Q1 VEE
Q0, Q1 Data Outputs
3–1 REV 4 Motorola, Inc. 1996
Page Summary Contents For Motorola MC10EL13 MC100EL11 User Guide
Manual Details
| Brand | Motorola |
|---|---|
| Pages | 4 |
| File Size | 50.66 KB |
| Published | July 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the primary function of the MC10EL11 device?
It is a differential 1:2 fanout buffer designed for applications requiring high AC performance.
What happens to the Q outputs if the inputs are left open?
If the inputs are left open (pulled to V), the Q outputs will go LOW.
Does Motorola guarantee suitability for life-support systems?
No, Motorola states that products are not authorized for use in applications intended to support or sustain life.
What is the minimum required input swing for guaranteed AC parameters?
The device guarantees its AC parameters when operating with a minimum input swing of 150 mV PP.
