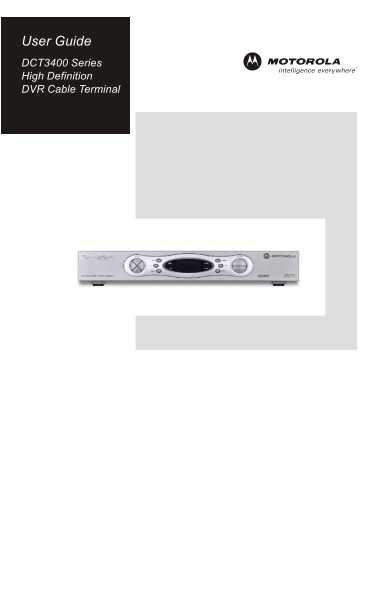

Motorola DCT3400 Series High Definition DVR Cable Terminal User Guide
Summary
This user guide provides comprehensive operating information for your High Definition DVR Cable Terminal, ensuring safe and optimal performance in your home setup. It covers essential installation requirements, crucial electrical safety warnings, and detailed guidelines for proper usage, troubleshooting common display issues like black bars, and specialized servicing procedures. Designed for both end-users who want to maintain the device safely and professional installers adhering to wiring codes, this manual ensures full compliance with operational best practices and electrical standards.
Page Summary Contents For Motorola DCT3400 Series High Definition DVR Cable Terminal User Guide
Page 2
CAUTION RISK OF ELECTRIC SHOCK CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Graphical...
Page 3
IMPORTANT SAFETY INSTRUCTIONS 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth....
Page 4
Regulatory Information Federal Communications Commission Radio and Television Interface Statement for a Class ‘B’ Device This equipment has been tested and found to comply with the limits for a Class ...
Page 5
Software License IMPORTANT: PLEASE READ THIS SOFTWARE LICENSE (“LICENSE”) CAREFULLY BEFORE YOU USE ANY SOFTWARE, FIRMWARE AND RELATED DOCUMENTATION (“SOFTWARE”) PROVIDED WITH MOTOROLA’S DIGITAL CABLE ...
Page 6
Contact Us For technical support for your cable terminal, call Motorola Support at 1-866-668-2271 or 1-866-MOT-BCS1. For questions about your cable TV service, call your cable provider. For Motorola c...
Page 7
DCT3400 User Guide CONTENTS Introduction .............................................................................................3 Operation .........................................................
Page 8
Recording Your Connections ..............................................................28 Data Devices..........................................................................................29 Tro...
Page 9
DCT3400 User Guide INTRODUCTION Congratulations on receiving a Motorola DCT3400 Series High Definition Advanced DVR Cable Terminal. Motorola has merged the extraordinary features of digital cable – th...
Page 10
Message Indicator Lights when message is waiting POWER switch Turns unit on or off FRONT PANEL MENU switch Displays menu INFO switch Displays current channel and program information CUR SOR MSGS. POWE...
Page 11
DCT3400 User Guide RECORD Indicator Lights when DVR is recording SELECT switch Selects menu options GUIDE switch Displays program guide OPTION switch Reserved CHA NN EL OPTI ON RECORD REMO TE SELECT R...
Page 12
OPERATION Turning Power On and Off Press POWER on the front panel to turn the cable terminal on or off. When using the remote control, be sure it is in cable mode by pressing CABLE before pressing POW...
Page 13
DCT3400 User Guide DIGITAL VIDEO RECORDER (DVR) The DCT3400 contains a hard drive for the digital video recorder (DVR) to record standard- and high-definition TV (HDTV) programs. A standard VCR record...
Page 14
OPTIMIZING YOUR CABLE TERMINAL FOR HIGH DEFINITION TV The DCT3400 outputs HD video through its Y Pb Pr (component), HDMI, or IEEE 1394 connectors. This section describes how to optimize standard and H...
Page 15
DCT3400 User Guide Use your remote control or the cursor keys on the front panel to navigate the on-screen display: • Press the ▲ and ▼ keys to highlight the setting you wish to change. • Press the ► ...
Page 16
Setting Description 4:3 Override Sets the display format for 4:3 standard-definition programming. If the YPb Pr Output is set to 1080i, 720p, or 480p, this setting defaults to 480i. If the YPb Pr Outp...
Page 17
DCT3400 User Guide Setting Description Font Color Sets the font color. Defaults to AUTO. Options are AUTO, WHITE, BLACK, RED, GREEN, BLUE, YELLOW, MAGENTA, or CYAN. Font Opacity Sets the opacity. Defa...
Page 18
ON-SCREEN GRAPHICS The DCT3400 can generate on-screen graphics that overlay the video programming or fill the entire television screen. Common examples include on-screen menus (such as the User Settin...
Page 19
DCT3400 User Guide CONNECTING YOUR CABLE TERMINAL This section describes connecting the cable terminal to your home entertainment system. Instructions and diagrams are included for connections to: • H...
Page 20
Video Connection Options The DCT3400 offers the following video outputs: HDTV Component video, HDMI, or IEEE 1394 Standard Composite video, S-Video, or RF coaxial To determine the available inputs on ...
Page 21
DCT3400 User Guide Important Safety Considerations Follow these important safety guidelines when positioning and connecting your cable terminal: • Position the cable terminal with at least 2 inches of...
Page 22
CONNECTING TO AN HDTV – VIDEO ONLY HDMI Component video IEEE 1394 connection connection connection DCT3400 -V DE IDE RF OUT DIF SWITCHED RF IN 105 -125V IR UDI HE RNE 60Hz TI HDMI TA IS IC 4A MAX 500W...
Page 23
DCT3400 User Guide Connecting HDTV – Video Only 1 Connect an RF coaxial cable to the cable wall outlet and the CABLE IN connector on the cable terminal. 2 Connect the HDTV using component video, HDMI,...
Page 24
CONNECTING TO AN HDTV – AUDIO ONLY Audio Optical SPDIF SPDIF audio connection connection connection DCT3400 -V DE IDE RF OUT DIF SWITCHED RF 105 -125V IR UDI HE RNE 60Hz TI HDMI TA 4A MAX IS IC 500W M...
Page 25
DCT3400 User Guide Connecting HDTV – Audio Only Connect the stereo audio cable to the AUDIO R and L connectors on the cable terminal and the corresponding connectors on the HDTV. If your equipment sup...
Page 26
CONNECTING TO AN A/V RECEIVER – AUDIO ONLY Audio SPDIF audio Optical SPDIF connection connection connection DCT3400 -V DE DE RF OUT DIF SWITCHED RF 105 -125V IR UDIO HE RNE 60Hz TI HDMI TA 4A MAX IS I...
Page 27
DCT3400 User Guide Connecting an A/V Receiver – Audio Only The audio connections options to your A/V receiver or home theater receiver are: • Optical SPDIF: Connect the optical SPDIF cable to the OPTI...
Page 28
CONNECTING TO A STEREO TV RF (75 ohm) S-Video Video Audio connection connection connection connection DCT3400 -V DE IDE RF OUT DIF SWITCHED RF IN 105 -125V IR UDI HE RNE 60Hz TI HDMI TA IS IC 4A MAX 5...
Page 29
DCT3400 User Guide Connecting a Stereo TV 1 Connect an RF coaxial cable to the cable wall outlet and the CABLE IN connector on the cable terminal. 2 Connect the stereo audio cable to the AUDIO R and L...
Page 30
CONNECTING TO A STEREO TV AND STEREO VCR RF (75 ohm) Video Audio connection connection connection DCT3400 -V DE IDE RF OUT DIF SWITCHED RF 105 -125V UDIO HE RNE 60Hz TI HDMI TA IS IC 4A MAX 500W MAX O...
Page 31
DCT3400 User Guide Connecting a Stereo TV and Stereo VCR 1 Connect an RF coaxial cable to the cable wall outlet and the CABLE IN connector on the cable terminal. 2 Connect a stereo audio cable to the ...
Page 32
CONNECTING TO AN A/V RECEIVER, TV, AND VCR RF (75 ohm) Video Audio Optical SPDIF connection connection connection connection DCT3400 S-V IDE DEO RF OUT SPDIF SWITCHED RF 105 -125V IR UDI Pr ET HERNET ...
Page 33
DCT3400 User Guide Connecting an A/V Receiver, TV, and VCR 1 Connect an RF coaxial cable to the cable wall outlet and the CABLE IN connector on the cable terminal. 2 Connect a stereo audio cable to th...
Page 34
RECORDING YOUR CONNECTIONS Use this diagram to record connections between your home entertainment components. You can use this diagram to reconnect your system if you move the equipment or add new equ...
Page 35
DCT3400 User Guide DATA DEVICES DCT3400 -V IDE DE RF OUT DI SWITCHED RF IN 105 -125V IR UDIO HE RNE TI HDMI TA 60Hz IS IC 4A MAX 500W MAXR OP DI CA LS US IE E1394 CA RD USB External hard Audio/video d...
Page 36
TROUBLESHOOTING Before calling your service provider, review this troubleshooting guide. This information is to help you quickly solve a problem. If your problem still exists, contact your service pro...
Page 37
DCT3400 User Guide Problem Possible Solution There is no audio Verify that the MUTE button on the cable terminal or the when viewing cable remote control was not pressed. Press MUTE on the channels re...
Page 38
Problem Possible Solution There is no video Verify that the TV is powered on and set to the on the TV screen appropriate input source for the cable terminal. Verify that the cable terminal is powered ...
Page 39
DCT3400 User Guide Problem Possible Solution There are black Wide screen TVs display 4:3 programs in this format bars to the right unless set to Stretch. Turn on the 4:3 OVERRIDE feature and left of t...
Page 40
