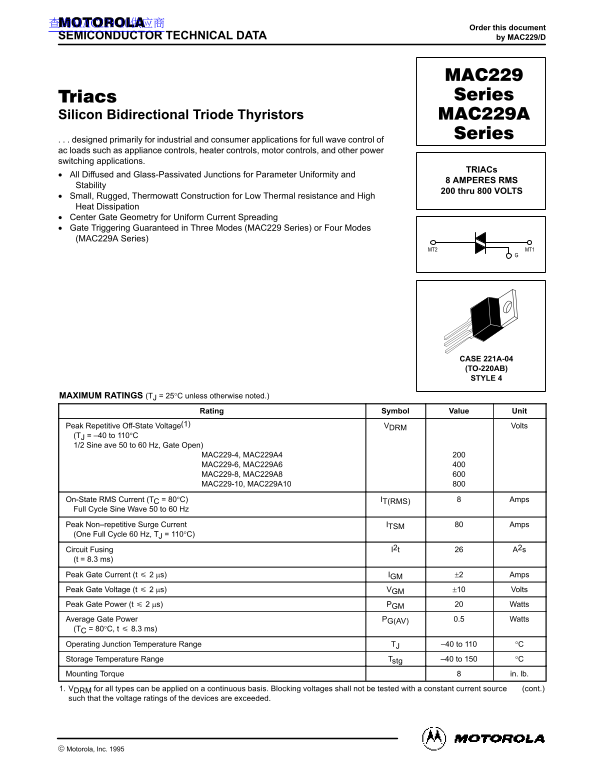

Page 1 Text Content

查询MAC229-10供应商

Order this document

SEMICONDUCTOR TECHNICAL DATA by MAC229/D

Silicon Bidirectional Triode Thyristors . . . designed primarily for industrial and consumer applications for full wave control of ac loads such as appliance controls, heater controls, motor controls, and other power switching applications.

TRIACs

All Diffused and Glass-Passivated Junctions for Parameter Uniformity and

8 AMPERES RMS

Stability

200 thru 800 VOLTS

Small, Rugged, Thermowatt Construction for Low Thermal resistance and High Heat Dissipation Center Gate Geometry for Uniform Current Spreading Gate Triggering Guaranteed in Three Modes (MAC229 Series) or Four Modes (MAC229A Series)

MT2 MT1

CASE 221A-04 (TO-220AB) STYLE 4

MAXIMUM RATINGS (TJ = 25°C unless otherwise noted.)

Rating Symbol Value Unit

Peak Repetitive Off-State Voltage(1) VDRM Volts (TJ = –40 to 110°C 1/2 Sine ave 50 to 60 Hz, Gate Open)

MAC229-4, MAC229A4 MAC229-6, MAC229A6 MAC229-8, MAC229A8 MAC229-10, MAC229A10

On-State RMS Current (TC = 80°C) IT(RMS) Amps Full Cycle Sine Wave 50 to 60 Hz Peak Non–repetitive Surge Current ITSM Amps (One Full Cycle 60 Hz, TJ = 110°C) Circuit Fusing I2t A2s (t = 8.3 ms) Peak Gate Current (t  2 µs) IGM ±2 Amps Peak Gate Voltage (t  2 µs) VGM ±10 Volts Peak Gate Power (t  2 µs) PGM Watts Average Gate Power PG(AV) 0.5 Watts (TC = 80°C, t  8.3 ms) Operating Junction Temperature Range TJ –40 to 110 °C Storage Temperature Range Tstg –40 to 150 °C Mounting Torque in. lb. 1. VDRM for all types can be applied on a continuous basis. Blocking voltages shall not be tested with a constant current source (cont.) such that the voltage ratings of the devices are exceeded.

1Motorola Thyristor Device Data

 Motorola, Inc. 1995
