Motorola SURFboard®

SB5101U / SB5101N DOCSIS 2.0 Cable Modem Installation Guide

Page Summary Contents For Motorola SURFboard SB5101U SB5101N DOCSIS 2.0 Cable Modem Guide

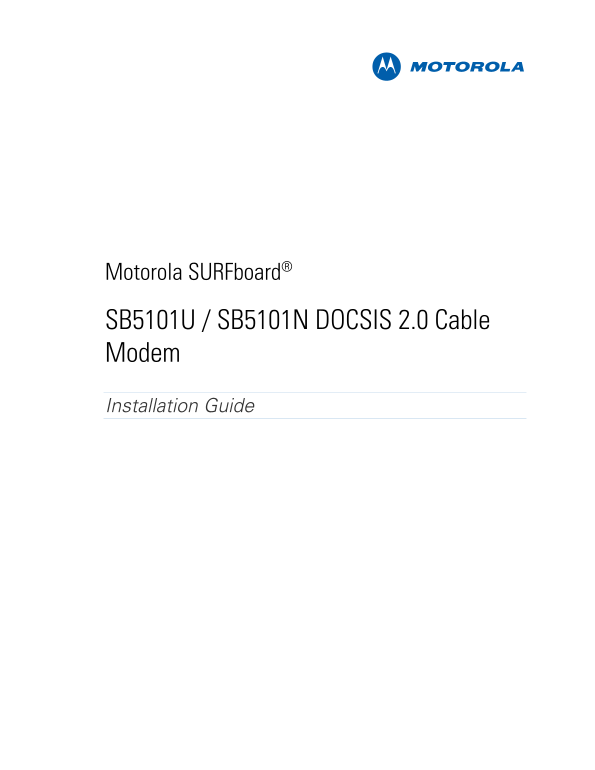

Page 1 Motorola SURFboard® SB5101U / SB5101N DOCSIS 2.0 Cable Modem Installation Guide
Page 2 Copyright © 2009 by Motorola, Inc. All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformati...
Page 3 Table of Contents Safety and Regulatory Information Overview Inside the Box................................................................................................................................
Page 4 i Safety and Regulatory Information SAFETY AND REGULATORY INFORMATION IMPORTANT SAFETY INSTRUCTIONS — When using your equipment, basic safety precautions should always be followed to reduce the risk o...
Page 5 • Do not open the device. Do not perform any servicing other than that contained in the installation and troubleshooting instructions. Refer all servicing to qualified service personnel. • This device...
Page 6 VOLUNTARY CONTROL COUNCIL FOR INTERFERENCE FROM INFORMATION TECHNOLOGY EQUIPMENT (VCCI) This is a Class B product based on the standard of the Voluntary Control Council for Interference from Informati...
Page 7 1 Overview Thank you for purchasing a Motorola SURFboard® product. Please take a few moments to become familiar with the product before starting the installation. To learn more about Motorola products...
Page 8 SB5101U / SB5101N Front Panel LED When the LED is… Then the modem is… POWER On (never flashes) On RECEIVE • Flashing • Scanning for a downstream channel • ON (and not flashing) • Connected to a downst...
Page 9 SB5101U and SB5101N Rear Panel Key Port Description 1 ETHERNET Connects to Ethernet-equipped devices 2 USB Connects to USB-equipped devices 3 CABLE Connects the modem to a cable wall outlet coaxial ca...
Page 10 2 Getting Started Cabling and Powering Up the Modem Cabling instructions for the SB5101U: 1. Insert the CDROM into your computer to load the USB driver. 2. Connect one end of the coaxial cable to the ...
Page 11 Cabling instructions for the SB5101N: 1. Connect one end of the coaxial cable to the cable outlet. 2. Connect the other end of the coaxial cable to the cable connector on the modem. 3. Insert the powe...
Page 12 Configuring TCP/IP in Windows XP 1. Click Start. 2. Click Control Panel. - OR 3. Click Network and Internet Connections / Network Connections (will vary according to settings). 4. Click LAN or High-Sp...
Page 13 Verifying the IP Address for Windows XP or Windows Vista Windows XP 1. Click Start. 2. Select Run. 3. Type cmd and click OK. 4. Type ipconfig and press ENTER to display your IP configuration. Windows ...
Page 14 A Software License and Warranty SOFTWARE LICENSE SURFboard SB5101U, SB5101N DOCSIS 2.0 Cable Modem Motorola, Inc. 101 Tournament Drive, Horsham, PA 19044 IMPORTANT: PLEASE READ THIS SOFTWARE LICENSE (...
Page 15 U.S. GOVERNMENT RESTRICTED RIGHTS The Product and documentation is provided with RESTRICTED RIGHTS. The use, duplication, or disclosure by the Government is subject to restrictions as set forth in sub...
Page 16 Motorola, Inc. 101 Tournament Drive Horsham, PA 19044 U.S.A. http://www.motorola.com MOTOROLA and the Stylized M logo are registered in the US Patent and Trademark Office. All other product or service...
