MOTOROLA 1PMT5913BT3 THROUGH 1PMT5948BT3 Data Sheet
Summary
This series of Powermite Zener/TVS diodes provides robust transient voltage suppression and regulation for demanding electronic applications. Featuring a space-saving surface mount package and operating across 3.3 to 91V, these components are ideal for automotive and telecommunications systems requiring high efficiency and low leakage. The manual offers comprehensive technical data sheets, detailing electrical characteristics, maximum ratings, power dissipation curves, and operational specifications necessary for hardware engineers designing reliable protective circuits.

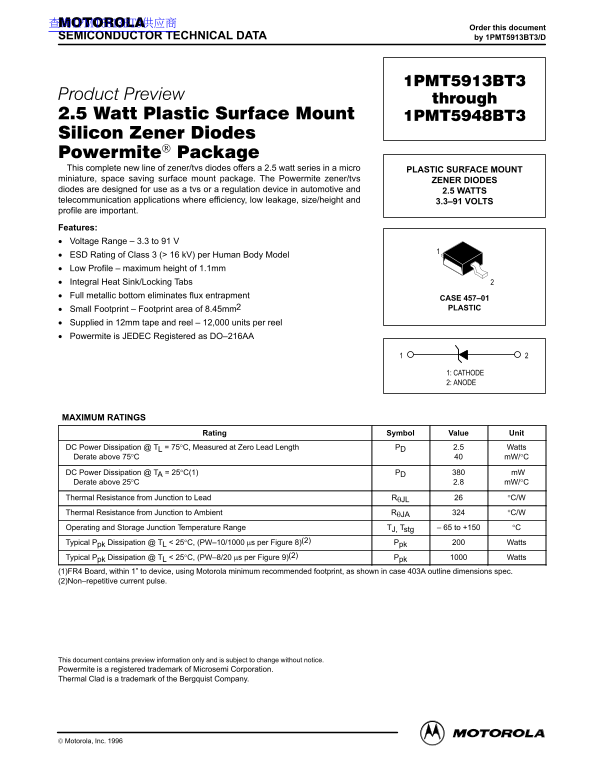

Page 1 Text Content
查询1PMT5813BT3供应商
Order this document
SEMICONDUCTOR TECHNICAL DATA by 1PMT5913BT3/D
%% $% &# "&!% "! !# "$ "'# % This complete new line of zener/tvs diodes offers a 2.5 watt series in a micro PLASTIC SURFACE MOUNT miniature, space saving surface mount package. The Powermite zener/tvs ZENER DIODES diodes are designed for use as a tvs or a regulation device in automotive and 2.5 WATTS telecommunication applications where efficiency, low leakage, size/height and 3.3–91 VOLTS profile are important. Features: Voltage Range – 3.3 to 91 V ESD Rating of Class 3 (> 16 k V) per Human Body Model Low Profile – maximum height of 1.1mm Integral Heat Sink/Locking Tabs Full metallic bottom eliminates flux entrapment
CASE 457–01 Small Footprint – Footprint area of 8.45mm2 PLASTIC
Supplied in 12mm tape and reel – 12,000 units per reel Powermite is JEDEC Registered as DO–216AA
1: CATHODE 2: ANODE
MAXIMUM RATINGS
Rating Symbol Value Unit
DC Power Dissipation @ TL = 75°C, Measured at Zero Lead Length °PD° 2.5 °Watts° Derate above 75°C m W/°C
DC Power Dissipation @ TA = 25°C(1) °PD° °m W Derate above 25°C 2.8 m W/°C
Thermal Resistance from Junction to Lead RθJL °C/W Thermal Resistance from Junction to Ambient RθJA °C/W Operating and Storage Junction Temperature Range TJ, Tstg 65 to +150 °C Typical Ppk Dissipation @ TL < 25°C, (PW–10/1000 µs per Figure 8)(2) Ppk Watts Typical Ppk Dissipation @ TL < 25°C, (PW–8/20 µs per Figure 9)(2) Ppk Watts (1)FR4 Board, within 1” to device, using Motorola minimum recommended footprint, as shown in case 403A outline dimensions spec. (2)Non–repetitive current pulse.
This document contains preview information only and is subject to change without notice. Powermite is a registered trademark of Microsemi Corporation. Thermal Clad is a trademark of the Bergquist Company.
Motorola, Inc. 1996 MOTOROLA1PMT5913BT3 through 1PMT5948BT3
Page Summary Contents For MOTOROLA 1PMT5913BT3 THROUGH 1PMT5948BT3 Data Sheet
Manual Details
| Brand | Motorola |
|---|---|
| Pages | 6 |
| File Size | 139.66 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Can I use these diodes for critical life support systems or surgical implants?
No, they are not designed, intended, or authorized for use in surgical implant or life-sustaining applications.
What is the ESD rating of this product line?
They boast an ESD Rating of Class 3 (> 16 kV) per Human Body Model.
What are the physical dimensions and profile characteristics?
The diodes feature a low profile (maximum height of 1.1mm) and a small footprint area of 8.45mm.
What is the operating temperature range for use?
The operating and storage junction temperature range is from -65 to +150 °C.
