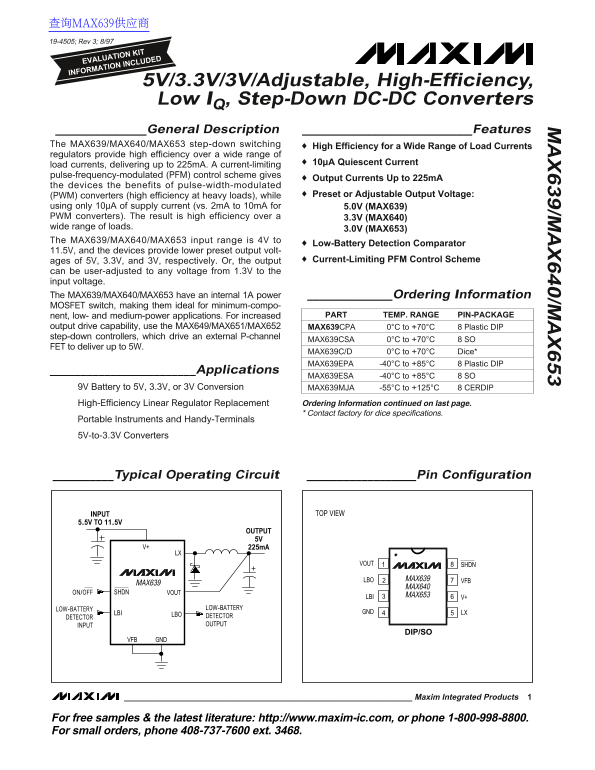

查询MAX639供应商 19-4505; Rev 3; 8/97 /M /M EVALUATION KIT INFORMATION INCLUDED
5V/3.3V/3V/Adjustable, High-Efficiency, Low IQ, Step-Down DC-DC Converters
_______________General Description ____________________________Features The MAX639/MAX640/MAX653 step-down switching High Efficiency for a Wide Range of Load Currents regulators provide high efficiency over a wide range of
10µA Quiescent Current
load currents, delivering up to 225m A. A current-limiting pulse-frequency-modulated (PFM) control scheme gives
Output Currents Up to 225m A
the devices the benefits of pulse-width-modulated
(PWM) converters (high efficiency at heavy loads), while Preset or Adjustable Output Voltage:
using only 10µA of supply current (vs. 2m A to 10m A for 5.0V (MAX639) PWM converters). The result is high efficiency over a 3.3V (MAX640) wide range of loads.
3.0V (MAX653)
The MAX639/MAX640/MAX653 input range is 4V to
Low-Battery Detection Comparator
11.5V, and the devices provide lower preset output volt-
ages of 5V, 3.3V, and 3V, respectively. Or, the output Current-Limiting PFM Control Scheme
can be user-adjusted to any voltage from 1.3V to the input voltage. The MAX639/MAX640/MAX653 have an internal 1A power ______________Ordering Information MOSFET switch, making them ideal for minimum-compo-
nent, low- and medium-power applications. For increased PART TEMP. RANGE PIN-PACKAGE
output drive capability, use the MAX649/MAX651/MAX652 MAX639CPA 0°C to +70°C 8 Plastic DIP step-down controllers, which drive an external P-channel
MAX639CSA 0°C to +70°C 8 SO
FET to deliver up to 5W.
MAX639C/D 0°C to +70°C Dice* MAX639EPA -40°C to +85°C 8 Plastic DIP
________________________Applications
MAX639ESA -40°C to +85°C 8 SO
9V Battery to 5V, 3.3V, or 3V Conversion MAX639MJA -55°C to +125°C 8 CERDIP
High-Efficiency Linear Regulator Replacement Ordering Information continued on last page. * Contact factory for dice specifications.
Portable Instruments and Handy-Terminals 5V-to-3.3V Converters
__________Typical Operating Circuit __________________Pin Configuration
INPUT TOP VIEW
5.5V TO 11.5V
OUTPUT 5V
VOUT SHDN
LBO MAX639
MAX639
MAX640
ON/OFF SHDN VOUT
LBI MAX653
LOW-BATTERY
LBILOW-BATTERY GND LX
LBO DETECTOR
DETECTOR
INPUT OUTPUT
DIP/SO
VFB GND
Maxim Integrated Products
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800. For small orders, phone 408-737-7600 ext. 3468.
