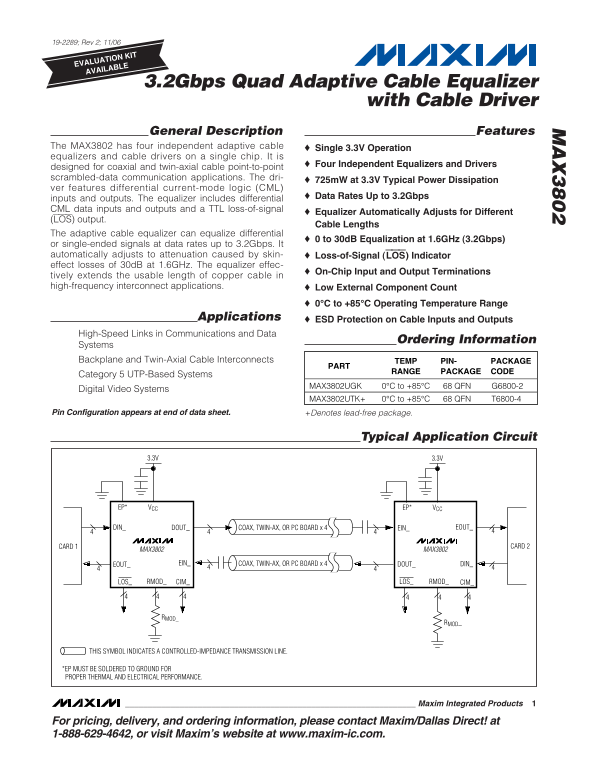

Page 1 Text Content
19-2289; Rev 2; 11/06
EVALUATION KIT AVAILABLE
3.2Gbps Quad Adaptive Cable Equalizer
with Cable Driver
General Description Features
The MAX3802 has four independent adaptive cable Single 3.3V Operation equalizers and cable drivers on a single chip. It is
Four Independent Equalizers and Drivers
designed for coaxial and twin-axial cable point-to-point scrambled-data communication applications. The dri-
725m W at 3.3V Typical Power Dissipation
ver features differential current-mode logic (CML)
Data Rates Up to 3.2Gbps
inputs and outputs. The equalizer includes differential CML data inputs and outputs and a TTL loss-of-signal
Equalizer Automatically Adjusts for Different
(LOS) output.
Cable Lengths
The adaptive cable equalizer can equalize differential
0 to 30d B Equalization at 1.6GHz (3.2Gbps)
or single-ended signals at data rates up to 3.2Gbps. It automatically adjusts to attenuation caused by skin- Loss-of-Signal (LOS) Indicator effect losses of 30d B at 1.6GHz. The equalizer effec-
On-Chip Input and Output Terminations
tively extends the usable length of copper cable in high-frequency interconnect applications. Low External Component Count
0°C to +85°C Operating Temperature Range
Applications ESD Protection on Cable Inputs and Outputs
High-Speed Links in Communications and Data
Ordering Information
Systems Backplane and Twin-Axial Cable Interconnects TEMP PIN- PACKAGE
RANGE PACKAGE CODE
Category 5 UTP-Based Systems
MAX3802UGK 0°C to +85°C 68 QFN G6800-2
Digital Video Systems
MAX3802UTK+ 0°C to +85°C 68 QFN T6800-4
Pin Configuration appears at end of data sheet. +Denotes lead-free package.
Typical Application Circuit
EP* VCC EP* VCC
DIN_ DOUT_ COAX, TWIN-AX, OR PC BOARD x 4 EIN_ EOUT_
CARD 2CARD 1
MAX3802 MAX3802
EOUT_ EIN_ COAX, TWIN-AX, OR PC BOARD x 4 DOUT_ DIN_
LOS_ RMOD_ CIM_ RMOD_ CIM_LOS_
RMOD_
RMOD_
THIS SYMBOL INDICATES A CONTROLLED-IMPEDANCE TRANSMISSION LINE.
*EP MUST BE SOLDERED TO GROUND FOR PROPER THERMAL AND ELECTRICAL PERFORMANCE.
Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
