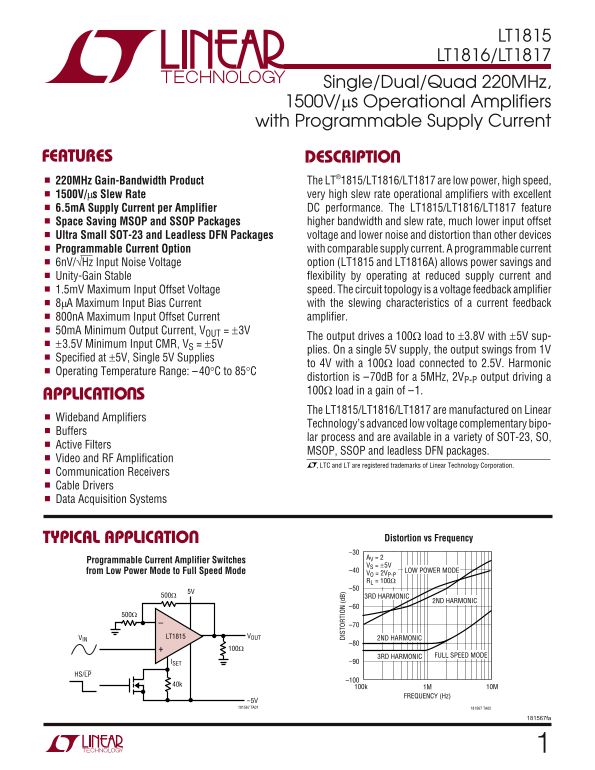

LT1815 LT1816/LT1817

Single/Dual/Quad 220MHz, 1500V/µs Operational Amplifiers with Programmable Supply Current

FEATURES DESCRIPTIO

220MHz Gain-Bandwidth Product The LT®1815/LT1816/LT1817 are low power, high speed, 1500V/µs Slew Rate very high slew rate operational amplifiers with excellent 6.5m A Supply Current per Amplifier DC performance. The LT1815/LT1816/LT1817 feature Space Saving MSOP and SSOP Packages higher bandwidth and slew rate, much lower input offset Ultra Small SOT-23 and Leadless DFN Packages voltage and lower noise and distortion than other devices Programmable Current Option with comparable supply current. A programmable current 6n V/√Hz Input Noise Voltage option (LT1815 and LT1816A) allows power savings and Unity-Gain Stable flexibility by operating at reduced supply current and 1.5m V Maximum Input Offset Voltage speed. The circuit topology is a voltage feedback amplifier 8µA Maximum Input Bias Current with the slewing characteristics of a current feedback 800n A Maximum Input Offset Current amplifier.

50m A Minimum Output Current, VOUT = ±3V

The output drives a 100Ω load to ±3.8V with ±5V sup-

DI ST OR TI ON (d B)

±3.5V Minimum Input CMR, VS = ±5V

plies. On a single 5V supply, the output swings from 1V

Specified at ±5V, Single 5V Supplies

to 4V with a 100Ω load connected to 2.5V. Harmonic

Operating Temperature Range: –40°C to 85°C

distortion is –70d B for a 5MHz, 2VP-P output driving a 100Ω load in a gain of –1.

APPLICATIO S

The LT1815/LT1816/LT1817 are manufactured on Linear

Wideband Amplifiers

Technology’s advanced low voltage complementary bipo-

Buffers

lar process and are available in a variety of SOT-23, SO,

Active Filters

MSOP, SSOP and leadless DFN packages.

Video and RF Amplification

, LTC and LT are registered trademarks of Linear Technology Corporation.

Communication Receivers Cable Drivers Data Acquisition Systems

TYPICAL APPLICATIO Distortion vs Frequency –30 AV = 2

Programmable Current Amplifier Switches

VS = ±5V from Low Power Mode to Full Speed Mode –40 LOW POWER MODE VO = 2VP-P RL = 100Ω –50

5V 500Ω 3RD HARMONIC

2ND HARMONIC

VIN LT1815 VOUT

2ND HARMONIC

3RD HARMONIC FULL SPEED MODE

ISET –90

HS/LP

FREQUENCY (Hz)

–5V 181567 TA01 181567 TA02

181567fa
