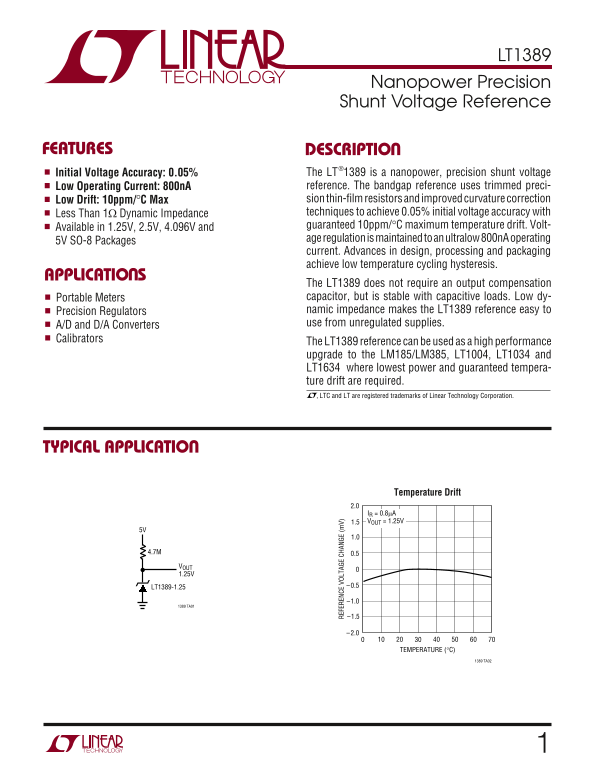

LT1389
Nanopower Precision Shunt Voltage Reference
FEATURES DESCRIPTIO
Initial Voltage Accuracy: 0.05% The LT®1389 is a nanopower, precision shunt voltage Low Operating Current: 800n A reference. The bandgap reference uses trimmed preci- Low Drift: 10ppm/°C Max sion thin-film resistors and improved curvature correction Less Than 1Ω Dynamic Impedance techniques to achieve 0.05% initial voltage accuracy with Available in 1.25V, 2.5V, 4.096V and guaranteed 10ppm/°C maximum temperature drift. Volt- age regulation is maintained to an ultralow 800n A operating
5V SO-8 Packages
current. Advances in design, processing and packaging achieve low temperature cycling hysteresis.
APPLICATIO S
The LT1389 does not require an output compensation Portable Meters capacitor, but is stable with capacitive loads. Low dy- Precision Regulators namic impedance makes the LT1389 reference easy to A/D and D/A Converters use from unregulated supplies.
Calibrators RE FE RE NC VO LT AG CH AN GE (m V)
The LT1389 reference can be used as a high performance upgrade to the LM185/LM385, LT1004, LT1034 and LT1634 where lowest power and guaranteed tempera- ture drift are required. , LTC and LT are registered trademarks of Linear Technology Corporation.
TYPICAL APPLICATIO
Temperature Drift
2.0 IR = 0.8µA 1.5 VOUT = 1.25V
VOUT 1.25V
LT1389-1.25 –0.5
1389 TA01
TEMPERATURE (°C)
1389 TA02
