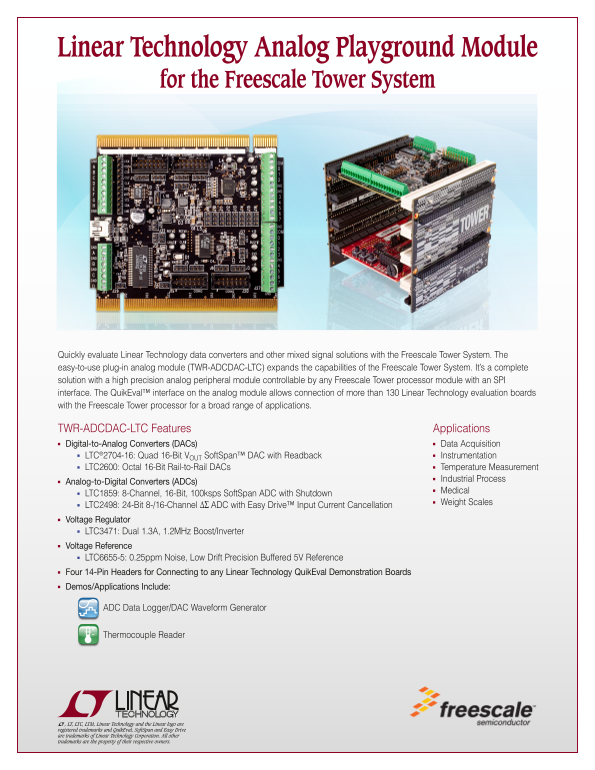

Linear Technology Analog Playground Module

for the Freescale Tower System

Quickly evaluate Linear Technology data converters and other mixed signal solutions with the Freescale Tower System. The easy-to-use plug-in analog module (TWR-ADCDAC-LTC) expands the capabilities of the Freescale Tower System. It’s a complete solution with a high precision analog peripheral module controllable by any Freescale Tower processor module with an SPI interface. The Quik Eval™ interface on the analog module allows connection of more than 130 Linear Technology evaluation boards with the Freescale Tower processor for a broad range of applications.

TWR-ADCDAC-LTC Features Applications n Digital-to-Analog Converters (DACs) n Data Acquisition

n LTC®2704-16: Quad 16-Bit VOUT Soft Span™ DAC with Readback n Instrumentation

n LTC2600: Octal 16-Bit Rail-to-Rail DACs n Temperature Measurement

n Industrial Process

n Analog-to-Digital Converters (ADCs)

n Medical

n LTC1859: 8-Channel, 16-Bit, 100ksps Soft Span ADC with Shutdown

n Weight Scales

n LTC2498: 24-Bit 8-/16-Channel ∆∑ ADC with Easy Drive™ Input Current Cancellation n Voltage Regulator

n LTC3471: Dual 1.3A, 1.2MHz Boost/Inverter n Voltage Reference

n LTC6655-5: 0.25ppm Noise, Low Drift Precision Buffered 5V Reference n Four 14-Pin Headers for Connecting to any Linear Technology Quik Eval Demonstration Boards

n Demos/Applications Include:

ADC Data Logger/DAC Waveform Generator

Thermocouple Reader

L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and Quik Eval, Soft Span and Easy Drive are trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
