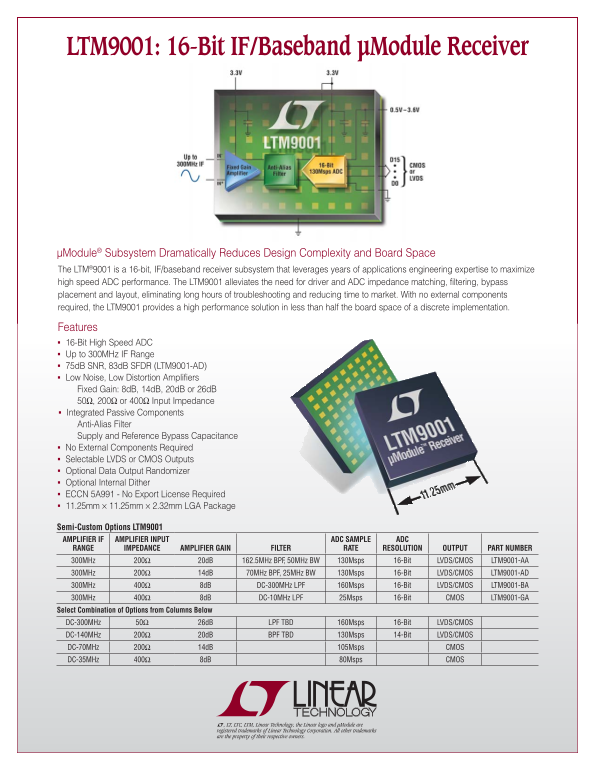

Page 1 Text Content
LTM9001: 16-Bit IF/Baseband µModule Receiver
µModule® Subsystem Dramatically Reduces Design Complexity and Board Space The LTM®9001 is a 16-bit, IF/baseband receiver subsystem that leverages years of applications engineering expertise to maximize high speed ADC performance. The LTM9001 alleviates the need for driver and ADC impedance matching, filtering, bypass placement and layout, eliminating long hours of troubleshooting and reducing time to market. With no external components required, the LTM9001 provides a high performance solution in less than half the board space of a discrete implementation.
Features n 16-Bit High Speed ADC n Up to 300MHz IF Range
n 75d B SNR, 83d B SFDR (LTM9001-AD)
n Low Noise, Low Distortion Amplifiers
Fixed Gain: 8d B, 14d B, 20d B or 26d B 50Ω, 200Ω or 400Ω Input Impedance n Integrated Passive Components
Anti-Alias Filter Supply and Reference Bypass Capacitance n No External Components Required n Selectable LVDS or CMOS Outputs
n Optional Data Output Randomizer
n Optional Internal Dither
n ECCN 5A991 - No Export License Required
n 11.25mm × 11.25mm × 2.32mm LGA Package
Semi-Custom Options LTM9001 AMPLIFIER IF AMPLIFIER INPUT ADC SAMPLE ADC RANGE IMPEDANCE AMPLIFIER GAIN FILTER RATE RESOLUTION OUTPUT PART NUMBER 300MHz 200Ω 20d B 162.5MHz BPF, 50MHz BW 130Msps 16-Bit LVDS/CMOS LTM9001-AA 300MHz 200Ω 14d B 70MHz BPF, 25MHz BW 130Msps 16-Bit LVDS/CMOS LTM9001-AD 300MHz 400Ω 8d B DC-300MHz LPF 160Msps 16-Bit LVDS/CMOS LTM9001-BA 300MHz 400Ω 8d B DC-10MHz LPF 25Msps 16-Bit CMOS LTM9001-GA Select Combination of Options from Columns Below DC-300MHz 50Ω 26d B LPF TBD 160Msps 16-Bit LVDS/CMOS DC-140MHz 200Ω 20d B BPF TBD 130Msps 14-Bit LVDS/CMOS DC-70MHz 200Ω 14d B 105Msps CMOS DC-35MHz 400Ω 8d B 80Msps CMOS
L, LT, LTC, LTM, Linear Technology, the Linear logo and µModule are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
