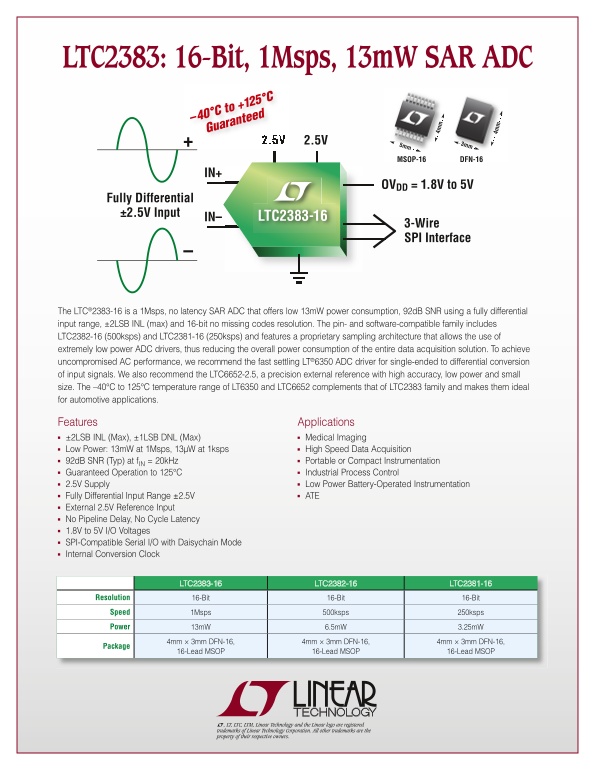

LTC2383: 16-Bit, 1Msps, 13m W SAR ADC
–40°C to +125°C Guaranteed
2.5V2.5V 3mm
MSOP-16 DFN-16
OVDD = 1.8V to 5V
Fully Differential ±2.5V Input
IN– LTC2383-16
3-Wire SPI Interface
The LTC®2383-16 is a 1Msps, no latency SAR ADC that offers low 13m W power consumption, 92d B SNR using a fully differential input range, ±2LSB INL (max) and 16-bit no missing codes resolution. The pin- and software-compatible family includes LTC2382-16 (500ksps) and LTC2381-16 (250ksps) and features a proprietary sampling architecture that allows the use of extremely low power ADC drivers, thus reducing the overall power consumption of the entire data acquisition solution. To achieve uncompromised AC performance, we recommend the fast settling LT®6350 ADC driver for single-ended to differential conversion of input signals. We also recommend the LTC6652-2.5, a precision external reference with high accuracy, low power and small size. The –40°C to 125°C temperature range of LT6350 and LTC6652 complements that of LTC2383 family and makes them ideal for automotive applications.
Features Applications n ±2LSB INL (Max), ±1LSB DNL (Max) n Medical Imaging n Low Power: 13m W at 1Msps, 13µW at 1ksps n High Speed Data Acquisition
n 92d B SNR (Typ) at f IN = 20k Hz n Portable or Compact Instrumentation
n Guaranteed Operation to 125°C n Industrial Process Control
n 2.5V Supply n Low Power Battery-Operated Instrumentation
n Fully Differential Input Range ±2.5V n ATE
n External 2.5V Reference Input
n No Pipeline Delay, No Cycle Latency
n 1.8V to 5V I/O Voltages
n SPI-Compatible Serial I/O with Daisychain Mode
n Internal Conversion Clock
LTC2383-16 LTC2382-16 LTC2381-16
Resolution 16-Bit 16-Bit 16-Bit
Speed 1Msps 500ksps 250ksps
Power 13m W 6.5m W 3.25m W
4mm × 3mm DFN-16, 4mm × 3mm DFN-16, 4mm × 3mm DFN-16,
Package
16-Lead MSOP 16-Lead MSOP 16-Lead MSOP
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
Page Summary Contents For LINEAR LTC2383 16-Bit, 1Msps, 13mW SAR ADC User Manual
Manual Details
| Brand | Linear |
|---|---|
| Pages | 2 |
| File Size | 338.15 KB |
| Published | June 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the typical SNR provided by the LTC2383-16?
The LTC2383-16 has a typical Signal-to-Noise Ratio (SNR) of 92dB at f = 20kHz.
Are these components suitable for industrial or automotive use?
Yes, all discussed parts are fully specified and guaranteed to operate over the –40°C to +125°C temperature range.
What component is recommended for driving high-performance SAR ADCs?
The LT6350 ADC Driver is suitable as it settles to 16 bits in just 350ns and outputs a differential signal.
How does the LTC6652 assist with data acquisition?
It provides an accurate, low-noise voltage reference available in seven output voltage options (e.g., 2.5V or 3.3V).
