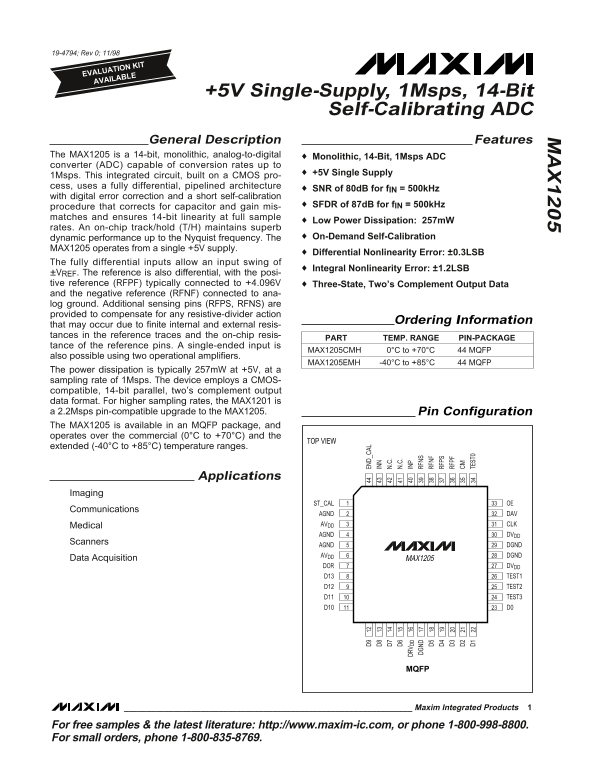

Page 1 Text Content
19-4794; Rev 0; 11/98
EVALUATION KIT AVAILABLE
+5V Single-Supply, 1Msps, 14-Bit
Self-Calibrating ADC
General Description Features
The MAX1205 is a 14-bit, monolithic, analog-to-digital Monolithic, 14-Bit, 1Msps ADC converter (ADC) capable of conversion rates up to
+5V Single Supply
1Msps. This integrated circuit, built on a CMOS pro- cess, uses a fully differential, pipelined architecture
SNR of 80d B for f IN = 500k Hz
with digital error correction and a short self-calibration
procedure that corrects for capacitor and gain mis- SFDR of 87d B for f IN = 500k Hz
matches and ensures 14-bit linearity at full sample
Low Power Dissipation: 257m W
rates. An on-chip track/hold (T/H) maintains superb
dynamic performance up to the Nyquist frequency. The On-Demand Self-Calibration
MAX1205 operates from a single +5V supply.
Differential Nonlinearity Error: ±0.3LSB
The fully differential inputs allow an input swing of
Integral Nonlinearity Error: ±1.2LSB
±VREF. The reference is also differential, with the posi- tive reference (RFPF) typically connected to +4.096V Three-State, Two’s Complement Output Data and the negative reference (RFNF) connected to ana- log ground. Additional sensing pins (RFPS, RFNS) are provided to compensate for any resistive-divider action
Ordering Information
that may occur due to finite internal and external resis- tances in the reference traces and the on-chip resis-
PART TEMP. RANGE PIN-PACKAGE
tance of the reference pins. A single-ended input is
MAX1205CMH 0°C to +70°C 44 MQFP
also possible using two operational amplifiers.
MAX1205EMH -40°C to +85°C 44 MQFP
The power dissipation is typically 257m W at +5V, at a D9 EN D_ CA sampling rate of 1Msps. The device employs a CMOS- D8 IN
compatible, 14-bit parallel, two’s complement output D7 N. C. data format. For higher sampling rates, the MAX1201 is D6 N. C. a 2.2Msps pin-compatible upgrade to the MAX1205. DR IN Pin Configuration DG ND RF NS
The MAX1205 is available in an MQFP package, and
D5 RF NF
operates over the commercial (0°C to +70°C) and the
D4 RF TOP VIEW PS
extended (-40°C to +85°C) temperature ranges.
D3 RF PF D2 CM D1 TE ST
Applications
Imaging
ST_CAL OE
Communications
AGND DAV Medical AVDD CLK AGND DVDD
Scanners
AGND DGND AVDD DGND
Data Acquisition MAX1205
DOR DVDD D13 TEST1 D12 TEST2 D11 TEST3 D10 D0
Maxim Integrated Products
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800. For small orders, phone 1-800-835-8769.
