This technical document provides comprehensive details on high-performance Analog-to-Digital Converters (ADCs) and associated drivers for precision data acquisition. It covers advanced features such as 16-bit resolution, exceptional Signal-to-Noise Ratio (SNR), one-shot operation, and wide temperature stability (-40°C to +125°C). Designed for engineers operating in demanding industrial or automotive environments, the manual explains optimal integration techniques—such as pairing devices with fast-settling drivers—to ensure uncompromised AC performance and reliable signal measurement.

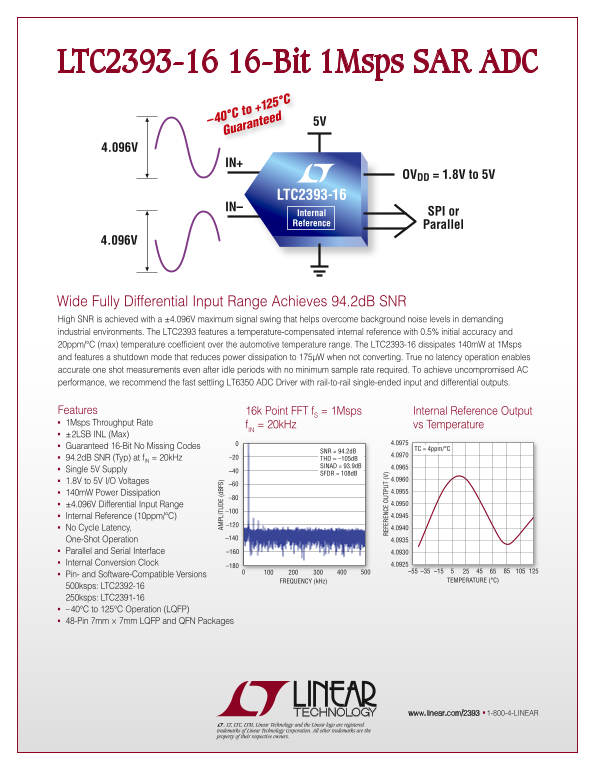

Page 1 Text Content
LTC2393-16 16-Bit 1Msps SAR ADC
–40°C to +125°C 5V Guaranteed
OVDD = 1.8V to 5V
LTC2393-16 IN–
Internal SPI or
AM PL IT UD (d BF S)
Reference Parallel
Wide Fully Differential Input Range Achieves 94.2d B SNR High SNR is achieved with a ±4.096V maximum signal swing that helps overcome background noise levels in demanding industrial environments. The LTC2393 features a temperature-compensated internal reference with 0.5% initial accuracy and 20ppm/°C (max) temperature coefficient over the automotive temperature range. The LTC2393-16 dissipates 140m W at 1Msps and features a shutdown mode that reduces power dissipation to 175µW when not converting. True no latency operation enables accurate one shot measurements even after idle periods with no minimum sample rate required. To achieve uncompromised AC performance, we recommend the fast settling LT6350 ADC Driver with rail-to-rail single-ended input and differential outputs.
RE FE RE NC OU TP UT (V
Features 16k Point FFT f S = 1Msps Internal Reference Output n 1Msps Throughput Rate
f IN = 20k Hz vs Temperature
n ±2LSB INL (Max)
n Guaranteed 16-Bit No Missing Codes 4.0975
TC = 4ppm/°C
SNR = 94.2d B
n 94.2d B SNR (Typ) at f IN = 20k Hz 4.0970
–20 THD –105d B
SINAD = 93.9d B 4.0965
n Single 5V Supply
SFDR = 108d B
n 1.8V to 5V I/O Voltages 4.0960
n 140m W Power Dissipation 4.0955
n ±4.096V Differential Input Range 4.0950
n Internal Reference (10ppm/°C) 4.0945
n No Cycle Latency, –120
One-Shot Operation –140
n Parallel and Serial Interface
n Internal Conversion Clock
n Pin- and Software-Compatible Versions –55 –35 –15
FREQUENCY (k Hz) TEMPERATURE (°C)
500ksps: LTC2392-16 250ksps: LTC2391-16 n –40°C to 125°C Operation (LQFP) n 48-Pin 7mm × 7mm LQFP and QFN Packages
www.linear.com/2393 n 1-800-4-LINEAR
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
Page Summary Contents For LINEAR 2PB_2393 LTC2393-16 16-Bit 1Msps SAR ADC Specification User Guide
Manual Details
| Brand | Linear |
|---|---|
| Pages | 2 |
| File Size | 464.60 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operational temperature range for these components?
The system guarantees function from -40°C to +125°C.
How can I achieve better AC performance with the LTC2393-16 ADC?
It is recommended using the fast settling LT6350 ADC Driver, which has rail-to-rail inputs and differential outputs.
What benefit does 'True no latency operation' provide?
It enables accurate one shot measurements even after long idle periods, requiring no minimum sample rate.
How can I reduce power consumption when the system is inactive?
Both components feature a shutdown mode; for example, the LTC2393-16 reduces power dissipation to 175µW.
