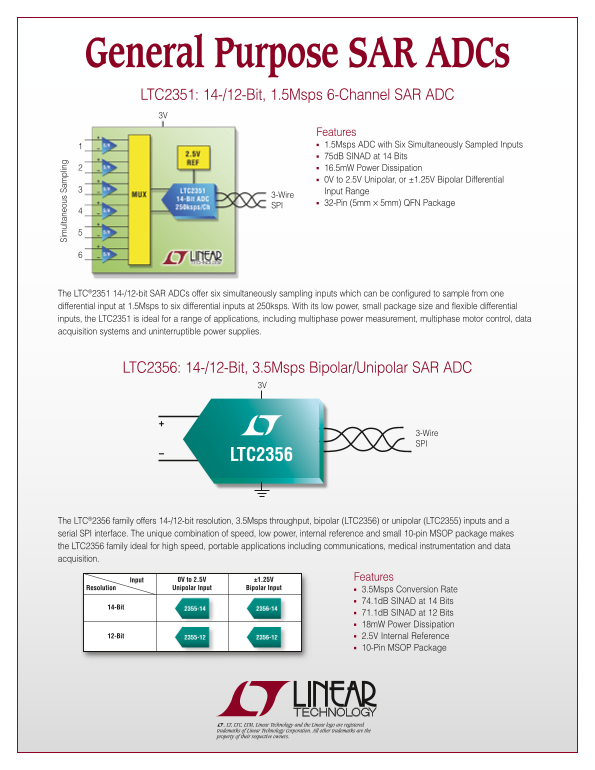

General Purpose SAR ADCs Si ul ta ne ou Sa pl in
LTC2351: 14-/12-Bit, 1.5Msps 6-Channel SAR ADC 3V
Features n 1.5Msps ADC with Six Simultaneously Sampled Inputs n 75d B SINAD at 14 Bits
n 16.5m W Power Dissipation
n 0V to 2.5V Unipolar, or ±1.25V Bipolar Differential
Input Range
3-Wire
n 32-Pin (5mm ¥ 5mm) QFN Package
The LTC®2351 14-/12-bit SAR ADCs offer six simultaneously sampling inputs which can be configured to sample from one differential input at 1.5Msps to six differential inputs at 250ksps. With its low power, small package size and flexible differential inputs, the LTC2351 is ideal for a range of applications, including multiphase power measurement, multiphase motor control, data acquisition systems and uninterruptible power supplies.
LTC2356: 14-/12-Bit, 3.5Msps Bipolar/Unipolar SAR ADC
3-Wire SPI
LTC2356
The LTC®2356 family offers 14-/12-bit resolution, 3.5Msps throughput, bipolar (LTC2356) or unipolar (LTC2355) inputs and a serial SPI interface. The unique combination of speed, low power, internal reference and small 10-pin MSOP package makes the LTC2356 family ideal for high speed, portable applications including communications, medical instrumentation and data acquisition.
Input 0V to 2.5V ±1.25V Features
Resolution Unipolar Input Bipolar Input n 3.5Msps Conversion Rate
n 74.1d B SINAD at 14 Bits
14-Bit 2355-14 2356-14
n 71.1d B SINAD at 12 Bits
n 18m W Power Dissipation
12-Bit 2355-12 2356-12 n 2.5V Internal Reference
n 10-Pin MSOP Package
