This critical integrated circuit provides an advanced IF System solution for modern FM receivers used in automotive, high-fidelity audio, and communications equipment. The chip manages essential functions including automatic gain control (AGC), AFC current generation, and sophisticated mute control capabilities. This technical guide offers deep specifications, detailed electrical characteristics, connection diagrams, and performance data necessary for engineers designing professional-grade radio receiver circuits.

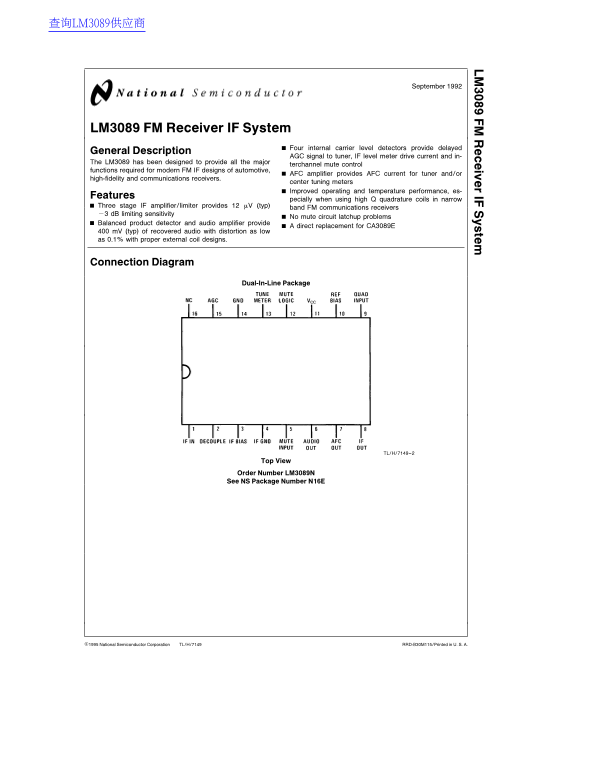

Page 1 Text Content
查询LM3089供应商
September
iv IF te
LM3089 FM Receiver IF System
Four internal carrier level detectors provide delayed
General Description
AGC signal to tuner, IF level meter drive current and in-
The LM3089 has been designed to provide all the major
terchannel mute control
functions required for modern FM IF designs of automotive,
AFC amplifier provides AFC current for tuner and/or
high-fidelity and communications receivers.
center tuning meters Improved operating and temperature performance, es-
Features
pecially when using high quadrature coils in narrow
Three stage IF amplifier/limiter provides m V (typ) band FM communications receivers b3 d B limiting sensitivity
No mute circuit latchup problems
Balanced product detector and audio amplifier provide
direct replacement for CA3089E
m V (typ) of recovered audio with distortion as low as 0.1% with proper external coil designs.
Connection Diagram
Dual-In-Line Package
TL/H/7149–2
Order Number LM3089N See NS Package Number N16E
C1995 National Semiconductor Corporation TL/H/7149 RRD-B30M115/Printed in U. S. A.
