LM2202 MHz Video Amplifier System
tr, tf 1.5 ns at VO VPP
General Description
Externally gated comparator for brightness control
The LM2202 is very high frequency video amplifier system
0V to 4V high input impedance DC contrast control
intended for use in high resolution monochrome or RGB
(>40 d B range)
color monitor applications. In addition to the wideband video
0V to 4V high input impedance DC drive control
amplifier the LM2202 contains gated differential input black
(±3 d B range)
level clamp comparator for brightness control, DC con-
trolled attenuator for contrast control and DC controlled Easy to parallel three LM2202s for optimum color sub contrast attenuator for drive control. The DC control for tracking in RGB systems the contrast attenuator is pinned out separately to provide Output stage clamps to 0.65V and provides up to 9V more accurate control system for RGB color monitor applica- output voltage swing
tions. All DC controls offer high input impedance and oper- Output stage directly drives most hybrid or discrete CRT ate over 0V to 4V range for easy interface to bus controlled amplifier stages alignment systems. The LM2202 operates from nominal Replacement for the LM1202 12V supply but can be operated with supply voltages down to 8V for applications that require reduced IC package power
Applications
dissipation characteristics.
High resolution CRT monitors Video switches
Features
Video AGC amplifier
Wideband video amplifier
Wideband amplifier with gain and DC offset control
(f−3d B MHz at VO VPP)

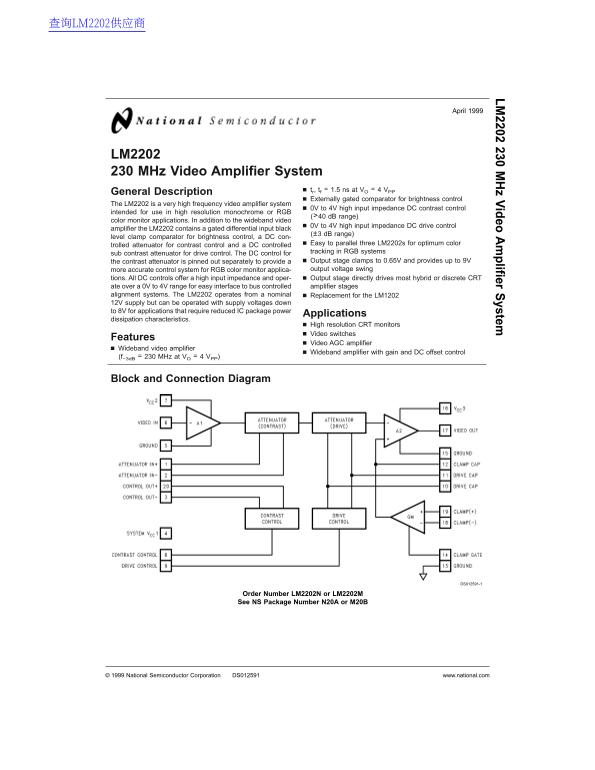

Block and Connection Diagram
DS012591-1
Order Number LM2202N or LM2202M See NS Package Number N20A or M20B
National Semiconductor Corporation DS012591 www.national.com
