National Semiconductor DM7427 Data Sheet
Summary
This integrated circuit provides three independent, high-stability 3-Input NOR gates. Designed for robust digital logic applications, it allows engineers to build reliable circuits efficiently. The accompanying manual details comprehensive operational guidelines, including absolute maximum ratings, electrical characteristics, switching times, and recommended operating parameters (e.g., supply voltage ranges), making it an essential reference tool for hardware designers building complex electronic systems and digital control units.
Page 1 Text Content
查询DM7427供应商

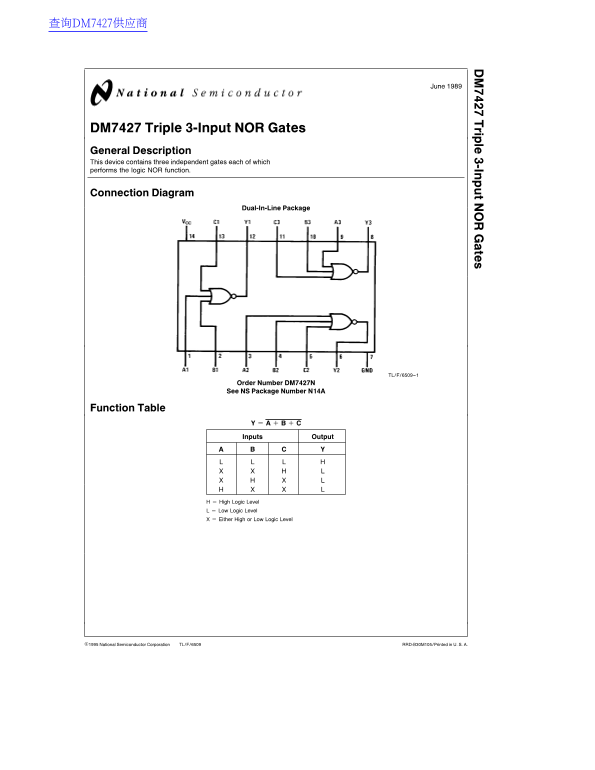

rip le -In te DM7427 Triple 3-Input NOR Gates General Description This device contains three independent gates each of which
performs the logic NOR function.
Connection Diagram
Dual-In-Line Package
TL/F/6509–1
Order Number DM7427N See NS Package Number N14A
Function Table
Inputs Output
High Logic Level Low Logic Level Either High or Low Logic Level
C1995 National Semiconductor Corporation TL/F/6509 RRD-B30M105/Printed in U. S. A.
