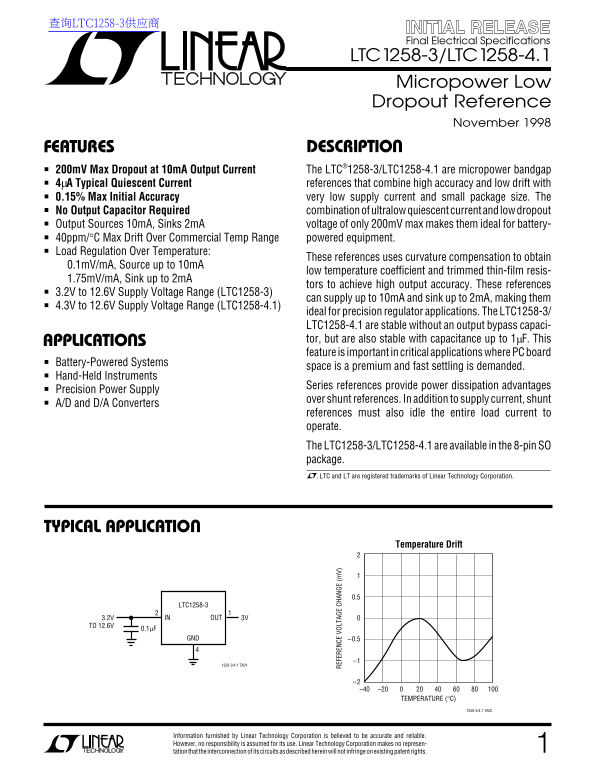

Final Electrical Specifications
LTC1258-3/LTC1258-4.1 Micropower Low Dropout Reference
November 1998
FEATURES DESCRIPTION
200m V Max Dropout at 10m A Output Current The LTC®1258-3/LTC1258-4.1 are micropower bandgap 4µA Typical Quiescent Current references that combine high accuracy and low drift with 0.15% Max Initial Accuracy very low supply current and small package size. The No Output Capacitor Required combination of ultralow quiescent current and low dropout
Output Sources 10m A, Sinks 2m A voltage of only 200m V max makes them ideal for battery- 40ppm/°C Max Drift Over Commercial Temp Range powered equipment.
Load Regulation Over Temperature:
These references uses curvature compensation to obtain
0.1m V/m A, Source up to 10m A
low temperature coefficient and trimmed thin-film resis-
1.75m V/m A, Sink up to 2m A
tors to achieve high output accuracy. These references
3.2V to 12.6V Supply Voltage Range (LTC1258-3)
can supply up to 10m A and sink up to 2m A, making them
4.3V to 12.6V Supply Voltage Range (LTC1258-4.1)
ideal for precision regulator applications. The LTC1258-3/ LTC1258-4.1 are stable without an output bypass capaci-
RE FE RE NC VO LT AG CH AN GE (m V) tor, but are also stable with capacitance up to 1µF. This
APPLICATIONS
feature is important in critical applications where PC board
Battery-Powered Systems
space is a premium and fast settling is demanded.
Hand-Held Instruments
Series references provide power dissipation advantages
Precision Power Supply
over shunt references. In addition to supply current, shunt
A/D and D/A Converters
references must also idle the entire load current to operate. The LTC1258-3/LTC1258-4.1 are available in the 8-pin SO package. , LTC and LT are registered trademarks of Linear Technology Corporation.
TYPICAL APPLICATION
Temperature Drift
LTC1258-3
3.2V OUTIN 3V
TO 12.6V
GND –0.5
1258-3/4.1 TA01
TEMPERATURE (°C)
1258-3/4.1 TA02
Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no represen- tation that the interconnection of its circuits as described herein will not infringe on existing patent rights.
Page Summary Contents For LINEAR LTC1258-3 LTC1258-4.1 Data Sheet User Manual
Manual Details
| Brand | Linear |
|---|---|
| Pages | 4 |
| File Size | 166.42 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the supply voltage range for the LTC1258-3?
The LTC1258-3 operates with a supply voltage range of 3.2V to 12.6V.
Does the LTC1258-3 require an output capacitor to be stable?
No, the LTC1258-3 is stable without an output bypass capacitor, but also supports up to 1μF capacitance.
What is the maximum dropout voltage of the LTC1258-3 at 10mA output?
The maximum dropout voltage is 200mV at 10mA output current.
What package does the LTC1258-3 come in?
The LTC1258-3 is available in an 8-pin plastic SO (S8) package.
