Summary

The LTC1983 series provides reliable, low-power inverting charge-pump converters designed to generate fixed negative regulated voltages (–3V or –5V) from positive single-supply inputs. Manual details cover advanced features like 100mA output current capability, high accuracy, and automatic protection against over-temperature and shorts. Ideal for portable electronics, such as LCD bias supplies, requiring highly reliable operation in constrained space due to its thin profile and micro-amp quiescent current draw.

📄 Preview PAGE OF 12

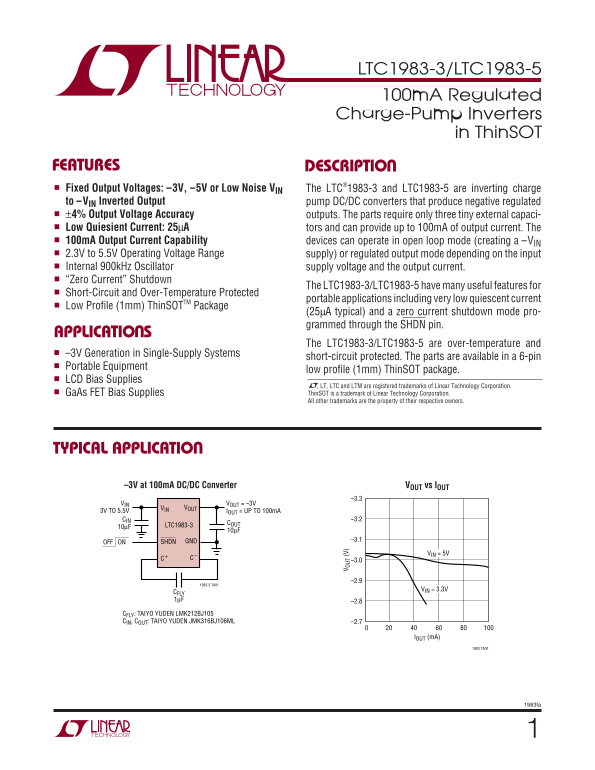

Page 1 Text Content

LTC1983-3/LTC1983-5 100m A Regulated Charge-Pump Inverters

in Thin SOT

FEATURES DESCRIPTIO Fixed Output Voltages: –3V, –5V or Low Noise VIN The LTC®1983-3 and LTC1983-5 are inverting charge to –VIN Inverted Output pump DC/DC converters that produce negative regulated ±4% Output Voltage Accuracy outputs. The parts require only three tiny external capaci- Low Quiesient Current: 25µA tors and can provide up to 100m A of output current. The 100m A Output Current Capability devices can operate in open loop mode (creating a –VIN 2.3V to 5.5V Operating Voltage Range supply) or regulated output mode depending on the input Internal 900k Hz Oscillator supply voltage and the output current. “Zero Current” Shutdown

The LTC1983-3/LTC1983-5 have many useful features for

Short-Circuit and Over-Temperature Protected

portable applications including very low quiescent current

Low Profile (1mm) Thin SOTTM Package

(25µA typical) and a zero current shutdown mode pro- grammed through the SHDN pin.

APPLICATIO S

(V The LTC1983-3/LTC1983-5 are over-temperature and

–3V Generation in Single-Supply Systems

short-circuit protected. The parts are available in a 6-pin

Portable Equipment

low profile (1mm) Thin SOT package.

LCD Bias Supplies

, LT, LTC and LTM are registered trademarks of Linear Technology Corporation. Ga As FET Bias Supplies Thin SOT is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.

TYPICAL APPLICATIO

–3V at 100m A DC/DC Converter VOUT vs IOUT

VIN VOUT = –3V

VIN VOUT

3V TO 5.5V IOUT = UP TO 100m A

CIN –3.2

10µF LTC1983-3

GND –3.1

OFF ON SHDN

VIN = 5V

1983-3 TA01

VIN = 3.3V

CFLY 1µF –2.8

CFLY: TAIYO YUDEN LMK212BJ105 CIN, COUT: TAIYO YUDEN JMK316BJ106ML –2.7

IOUT (m A)

1983 TA02

1983fa

Page Summary Contents For LINEAR TECHNOLOGY - LTC1983-3 LTC1983-5 Data Sheet User Guide

Page 1 LTC1983-3/LTC1983-5 100m A Regulated Charge-Pump Inverters in Thin SOT FEATURES DESCRIPTIO Fixed Output Voltages: –3V, –5V or Low Noise VIN The LTC®1983-3 and LTC1983-5 are inverting charge to –VIN In...
Page 2 LTC1983-3/LTC1983-5 ABSOLUTE AXI RATI GS PACKAGE/ORDER I FOR ATIO (Note 1) ORDER PART VIN to GND................................................... –0.3V to 6V NUMBER SHDN Voltage –0.3V to 6V TOP VIEW...
Page 3 IN (m A) EF FI CI EN CY EF FI CI EN CY LTC1983-3/LTC1983-5 TYPICAL PERFOR A CE CHARACTERISTICS Output Impedance vs Output Impedance Input Voltage vs IOUT (LTC1983-5)Efficiency vs IOUT (LTC1983-5) IOUT...
Page 4 HD (µ A) IN PU CU RR EN (µ A) LTC1983-3/LTC1983-5 TYPICAL PERFOR A CE CHARACTERISTICS Burst Mode Input Current ROUT vs Temperature SHDN Pin Threshold Voltage vs VIN (LTC1983-3) (IOUT = 10m A) vs Tempe...
Page 5 LTC1983-3/LTC1983-5 PI FU CTIO S VIN (Pin 1): Charge Pump Input Voltage. May be between C– (Pin 4): Charge Pump Flying Capacitor Negative Termi- 2.3V and 5.5V. VIN should be bypassed with a ≥4.7µF low...
Page 6 LTC1983-3/LTC1983-5 OPERATIO (Refer to Block Diagram) The LTC1983-3/LTC1983-5 use a switched capacitor For all ROUT values, check the corresponding curves in charge pump to invert a positive input vol...
Page 7 LTC1983-3/LTC1983-5 OPERATIO (Refer to Block Diagram) There are many aspects of the capacitors that must be results in higher ripple due to higher output voltage d V/dt. taken into account. First, the...
Page 8 LTC1983-3/LTC1983-5 OPERATIO (Refer to Block Diagram) Inrush Currents LTC1983-3 3.3V TO 5.5V FROM MPU VIN VIN SHDN During normal operation, VIN will experience current tran- CIN sients in the several ...
Page 9 LTC1983-3/LTC1983-5 OPERATIO (Refer to Block Diagram) problem in the low IQ mode, it is necessary to switch the SHDN ON PULSE WIDTH = 200µs COUT = 10µF part in and out of shutdown at the minimum allow...
Page 10 LTC1983-3/LTC1983-5 TYPICAL APPLICATIO S 2.5V to –2.5V DC/DC Converter VIN VOUT VIN VOUT CERAMIC LTC1983-5 CERAMIC OFF ON SHDN GND 1983 TA03 0.47µF CERAMIC 100m A Inverting DC/DC Converter VIN VOUT VI...
Page 11 LTC1983-3/LTC1983-5 PACKAGE DESCRIPTIO S6 Package 6-Lead Plastic SOT-23 (Reference LTC DWG # 05-08-1636) 2.90 BSC (NOTE 4) MAX REF 1.22 REF 2.80 BSC 3.85 MAX 1.4 MIN2.62 REF (NOTE 4) PIN ONE ID RECOMM...
Page 12 LTC1983-3/LTC1983-5 TYPICAL APPLICATIO Combined Unregulated Doubler and Regulated Inverter VINVIN VOUT VOUT CIN COUT1 10µF LTC1983-3/ CERAMIC LTC1983-5 CERAMIC OFF ON SHDN GND CERAMIC CBOOST 1µF VBOOS...

Manual Details

Brand Linear
Pages 12
File Size 159.74 KB
Published June 16, 2026
6 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the primary function of the LTC1983 devices?

They are inverting charge pump DC/DC converters designed to produce negative regulated voltages like -3V or -5V.

What kind of supplies can these parts generate?

They can create negative regulated voltage rails such as –3V, –5V, and Low Noise V for systems like LCD bias supplies.

Does the device have protection features?

Yes, it includes built-in protection against over-temperature, short-circuit, and is suitable for portable applications.

What is the typical output current capability?

The devices can provide up to 100mA of regulated output current.
