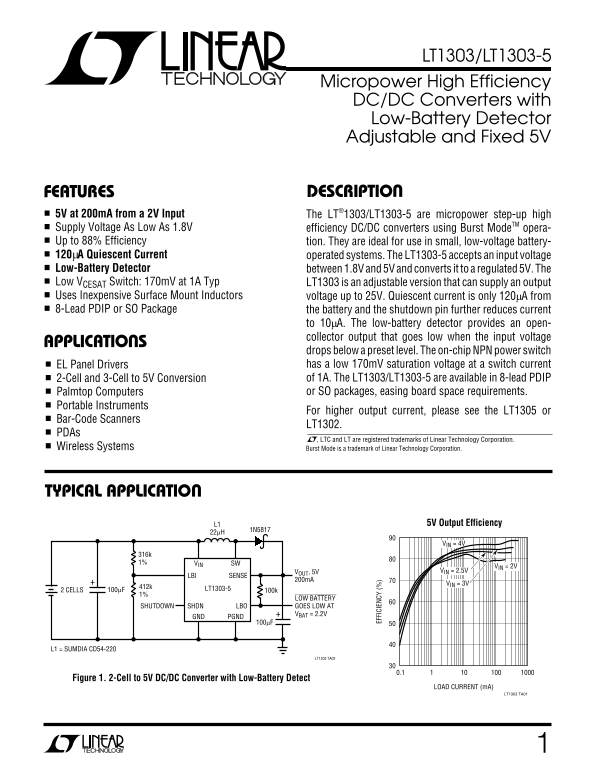

LT1303/LT1303-5
Micropower High Efficiency DC/DC Converters with Low-Battery Detector Adjustable and Fixed 5V
FEATURES DESCRIPTION
5V at 200m A from a 2V Input The LT®1303/LT1303-5 are micropower step-up high Supply Voltage As Low As 1.8V efficiency DC/DC converters using Burst Mode TM opera- Up to 88% Efficiency tion. They are ideal for use in small, low-voltage battery- 120µA Quiescent Current operated systems. The LT1303-5 accepts an input voltage Low-Battery Detector between 1.8V and 5V and converts it to a regulated 5V. The Low VCESAT Switch: 170m V at 1A Typ LT1303 is an adjustable version that can supply an output Uses Inexpensive Surface Mount Inductors voltage up to 25V. Quiescent current is only 120µA from 8-Lead PDIP or SO Package the battery and the shutdown pin further reduces current
to 10µA. The low-battery detector provides an open- collector output that goes low when the input voltage
APPLICATIONS
drops below a preset level. The on-chip NPN power switch EL Panel Drivers has a low 170m V saturation voltage at a switch current
2-Cell and 3-Cell to 5V Conversion EF FI CI EN CY of 1A. The LT1303/LT1303-5 are available in 8-lead PDIP
Palmtop Computers or SO packages, easing board space requirements.
Portable Instruments
For higher output current, please see the LT1305 or
Bar-Code Scanners
LT1302.
, LTC and LT are registered trademarks of Linear Technology Corporation.
Wireless Systems Burst Mode is a trademark of Linear Technology Corporation.
TYPICAL APPLICATION
L1 5V Output Efficiency
VIN = 4V
316k 1% VIN SW
VIN = 2V
VOUT, 5V VIN = 2.5V
SENSELBI
VIN = 3V
412k LT1303-5
100µF2 CELLS 100k
LOW BATTERY
SHUTDOWN LBOSHDN GOES LOW AT
VBAT = 2.2V
GND PGND
L1 = SUMDIA CD54-220
LT1303 TA02
Figure 1. 2-Cell to 5V DC/DC Converter with Low-Battery Detect
LOAD CURRENT (m A)
LT1303 TA01
