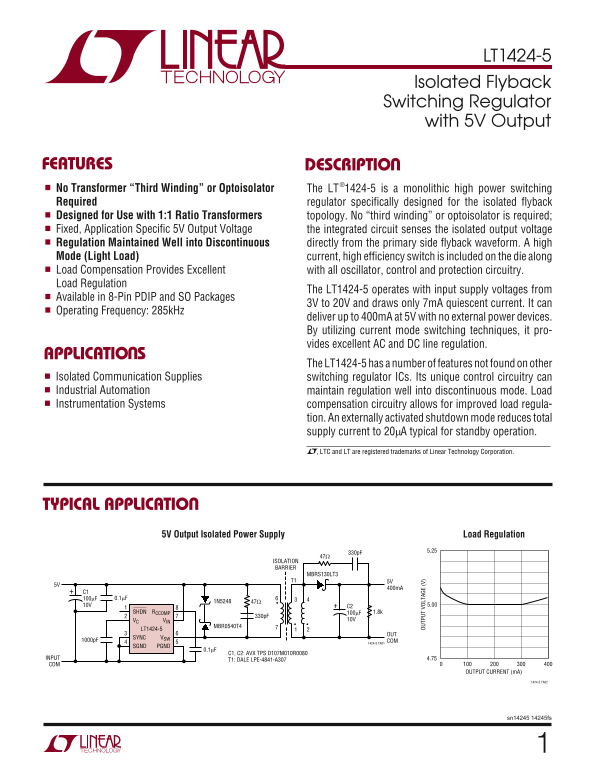

LT1424-5 Isolated Flyback
Switching Regulator with 5V Output
FEATURES DESCRIPTIO No Transformer “Third Winding” or Optoisolator The LT®1424-5 is a monolithic high power switching Required regulator specifically designed for the isolated flyback Designed for Use with 1:1 Ratio Transformers topology. No “third winding” or optoisolator is required; Fixed, Application Specific 5V Output Voltage the integrated circuit senses the isolated output voltage Regulation Maintained Well into Discontinuous directly from the primary side flyback waveform. A high Mode (Light Load) current, high efficiency switch is included on the die along Load Compensation Provides Excellent with all oscillator, control and protection circuitry. Load Regulation
The LT1424-5 operates with input supply voltages from
Available in 8-Pin PDIP and SO Packages
3V to 20V and draws only 7m A quiescent current. It can
Operating Frequency: 285k Hz
deliver up to 400m A at 5V with no external power devices. By utilizing current mode switching techniques, it pro- vides excellent AC and DC line regulation.
APPLICATIO S
The LT1424-5 has a number of features not found on other
Isolated Communication Supplies switching regulator ICs. Its unique control circuitry can Industrial Automation maintain regulation well into discontinuous mode. Load Instrumentation Systems compensation circuitry allows for improved load regula-
tion. An externally activated shutdown mode reduces total
OU TP UT OL TA GE (V
supply current to 20µA typical for standby operation. , LTC and LT are registered trademarks of Linear Technology Corporation.
TYPICAL APPLICATIO
5V Output Isolated Power Supply Load Regulation
ISOLATION BARRIER
MBRS130LT3 T1 5V
SHDN RCCOMP 100µF 1.8k
VC VIN 10V
MBR0540T4
LT1424-5
SYNC VSW
1000p F COM
1424-5 TA01
SGND PGND
C1, C2: AVX TPS D107M010R0080
INPUT T1: DALE LPE-4841-A307 4.75 COM
OUTPUT CURRENT (m A)
1424-5 TA02
sn14245 14245fs
