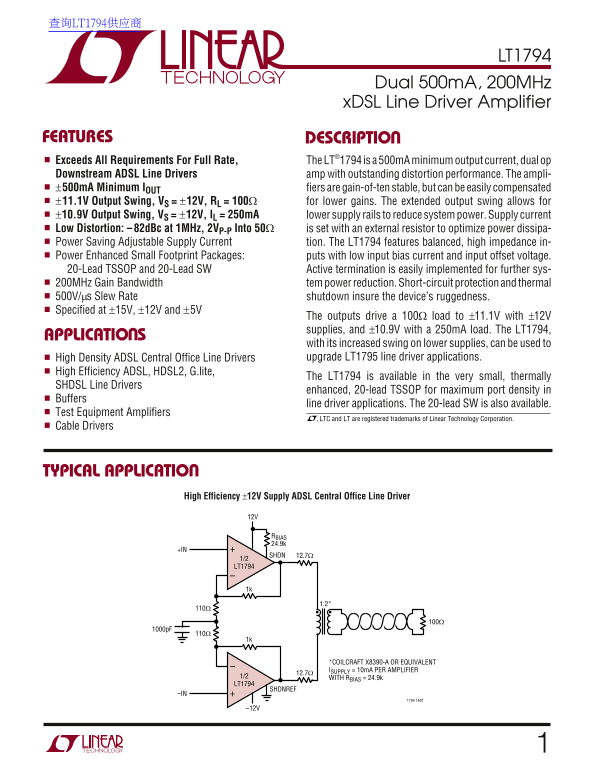

Page 1 Text Content
查询LT1794供应商
LT1794
Dual 500m A, 200MHz x DSL Line Driver Amplifier
FEATURES DESCRIPTIO Exceeds All Requirements For Full Rate, The LT®1794 is a 500m A minimum output current, dual op Downstream ADSL Line Drivers amp with outstanding distortion performance. The ampli- ±500m A Minimum IOUT fiers are gain-of-ten stable, but can be easily compensated ±11.1V Output Swing, VS = ±12V, RL = 100Ω for lower gains. The extended output swing allows for ±10.9V Output Swing, VS = ±12V, IL = 250m A lower supply rails to reduce system power. Supply current Low Distortion: – 82d Bc at 1MHz, 2VP-P Into 50Ω is set with an external resistor to optimize power dissipa- Power Saving Adjustable Supply Current tion. The LT1794 features balanced, high impedance in- Power Enhanced Small Footprint Packages: puts with low input bias current and input offset voltage. 20-Lead TSSOP and 20-Lead SW Active termination is easily implemented for further sys- 200MHz Gain Bandwidth tem power reduction. Short-circuit protection and thermal 500V/µs Slew Rate shutdown insure the device’s ruggedness. Specified at ±15V, ±12V and ±5V
The outputs drive a 100Ω load to ±11.1V with ±12V supplies, and ±10.9V with a 250m A load. The LT1794,
APPLICATIO S
with its increased swing on lower supplies, can be used to High Density ADSL Central Office Line Drivers upgrade LT1795 line driver applications.
High Efficiency ADSL, HDSL2, G.lite,
The LT1794 is available in the very small, thermally
SHDSL Line Drivers
enhanced, 20-lead TSSOP for maximum port density in
Buffers
line driver applications. The 20-lead SW is also available.
Test Equipment Amplifiers
, LTC and LT are registered trademarks of Linear Technology Corporation.
Cable Drivers
TYPICAL APPLICATIO
High Efficiency ±12V Supply ADSL Central Office Line Driver
RBIAS 24.9k
SHDN 12.7Ω
1/2 LT1794
*COILCRAFT X8390-A OR EQUIVALENT ISUPPLY = 10m A PER AMPLIFIER
1/2 WITH RBIAS = 24.9k LT1794
SHDNREF
1794 TA01
