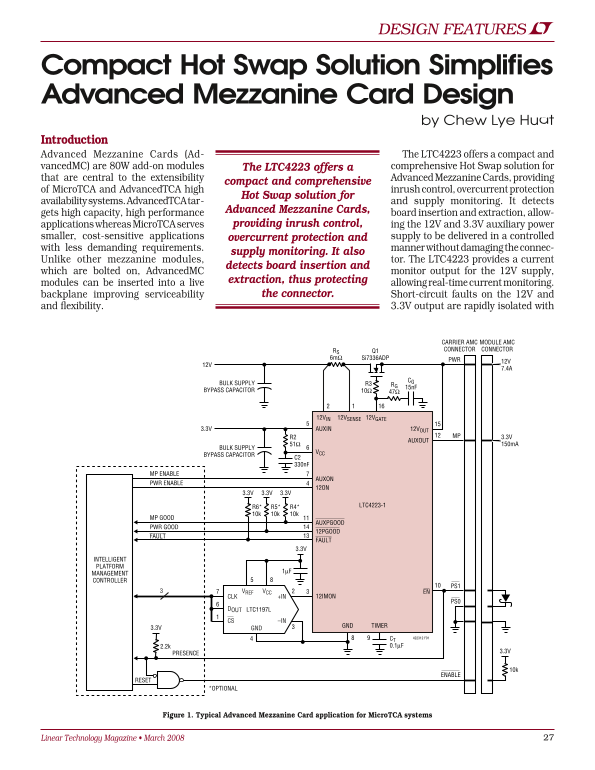

Page 1 Text Content
DESIGN FEATURES L
Compact Hot Swap Solution Simplifies Advanced Mezzanine Card Design
by Chew Lye Huat
Introduction Advanced Mezzanine Cards (Ad- The LTC4223 offers a compact and vanced MC) are 80W add-on modules The LTC4223 offers a comprehensive Hot Swap solution for that are central to the extensibility Advanced Mezzanine Cards, providing
compact and comprehensive
of Micro TCA and Advanced TCA high inrush control, overcurrent protection
Hot Swap solution for
availability systems. Advanced TCA tar- and supply monitoring. It detects
Advanced Mezzanine Cards,
gets high capacity, high performance board insertion and extraction, allow-
applications whereas Micro TCA serves providing inrush control, ing the 12V and 3.3V auxiliary power
smaller, cost-sensitive applications overcurrent protection and supply to be delivered in a controlled with less demanding requirements. manner without damaging the connec-
supply monitoring. It also
Unlike other mezzanine modules, tor. The LTC4223 provides a current
detects board insertion and
which are bolted on, Advanced MC monitor output for the 12V supply,
extraction, thus protecting
modules can be inserted into a live allowing real-time current monitoring.
backplane improving serviceability the connector. Short-circuit faults on the 12V and
and flexibility. 3.3V output are rapidly isolated with
CARRIER AMC MODULE AMC RS Q1 CONNECTOR CONNECTOR
6mΩ Si7336ADP
PWR 12V
BULK SUPPLY R3 RG
BYPASS CAPACITOR 10Ω 47Ω
12VSENSE 12VGATE12VIN
3.3V AUXIN 12VOUT
R2 MP 3.3V
AUXOUT
BULK SUPPLY
BYPASS CAPACITOR
MP ENABLE
AUXON
PWR ENABLE
R6* R5* R4* LTC4223-1
MP GOOD
AUXPGOOD
PWR GOOD
12PGOOD
FAULT
FAULT 3.3V
INTELLIGENT PLATFORM
MANAGEMENT CONTROLLER
VREF VCC EN
CLK +IN 12IMON
DOUT LTC1197L
CS –IN
GND TIMER
3.3V GND
CT 422312 F01
PRESENCE
ENABLE
RESET
*OPTIONAL
Figure 1. Typical Advanced Mezzanine Card application for Micro TCA systems
Linear Technology Magazine • March 2008
