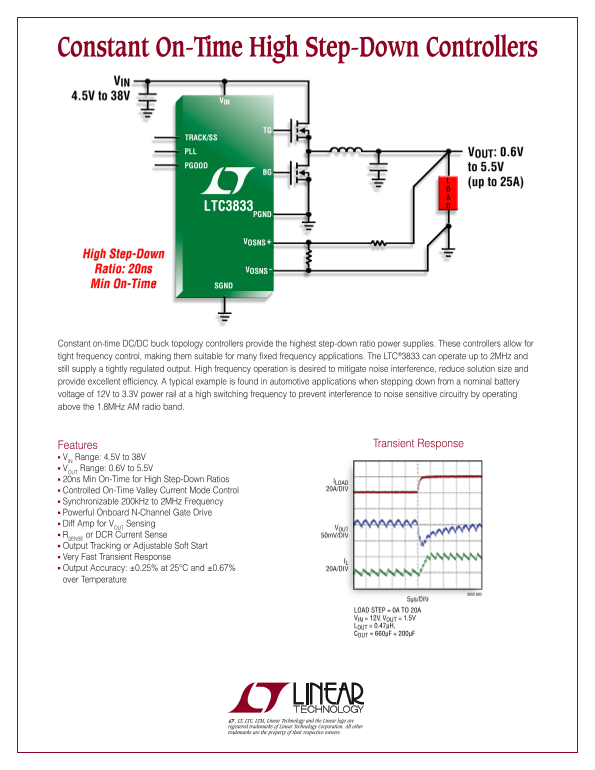

Constant On-Time High Step-Down Controllers
Constant on-time DC/DC buck topology controllers provide the highest step-down ratio power supplies. These controllers allow for tight frequency control, making them suitable for many fixed frequency applications. The LTC®3833 can operate up to 2MHz and still supply a tightly regulated output. High frequency operation is desired to mitigate noise interference, reduce solution size and provide excellent efficiency. A typical example is found in automotive applications when stepping down from a nominal battery voltage of 12V to 3.3V power rail at a high switching frequency to prevent interference to noise sensitive circuitry by operating above the 1.8MHz AM radio band.
Features Transient Response
n VIN Range: 4.5V to 38V
n VOUT Range: 0.6V to 5.5V
n 20ns Min On-Time for High Step-Down Ratios ILOAD
20A/DIV
n Controlled On-Time Valley Current Mode Control
n Synchronizable 200k Hz to 2MHz Frequency
n Powerful Onboard N-Channel Gate Drive
n Diff Amp for VOUT Sensing
n RSENSE or DCR Current Sense 50m V/DIV
n Output Tracking or Adjustable Soft Start
n Very Fast Transient Response
n Output Accuracy: ±0.25% at 25°C and ±0.67% 20A/DIV
over Temperature
5µs/DIV
LOAD STEP = 0A TO 20A VIN = 12V, VOUT = 1.5V LOUT = 0.47µH, COUT = 660µF + 200µF
